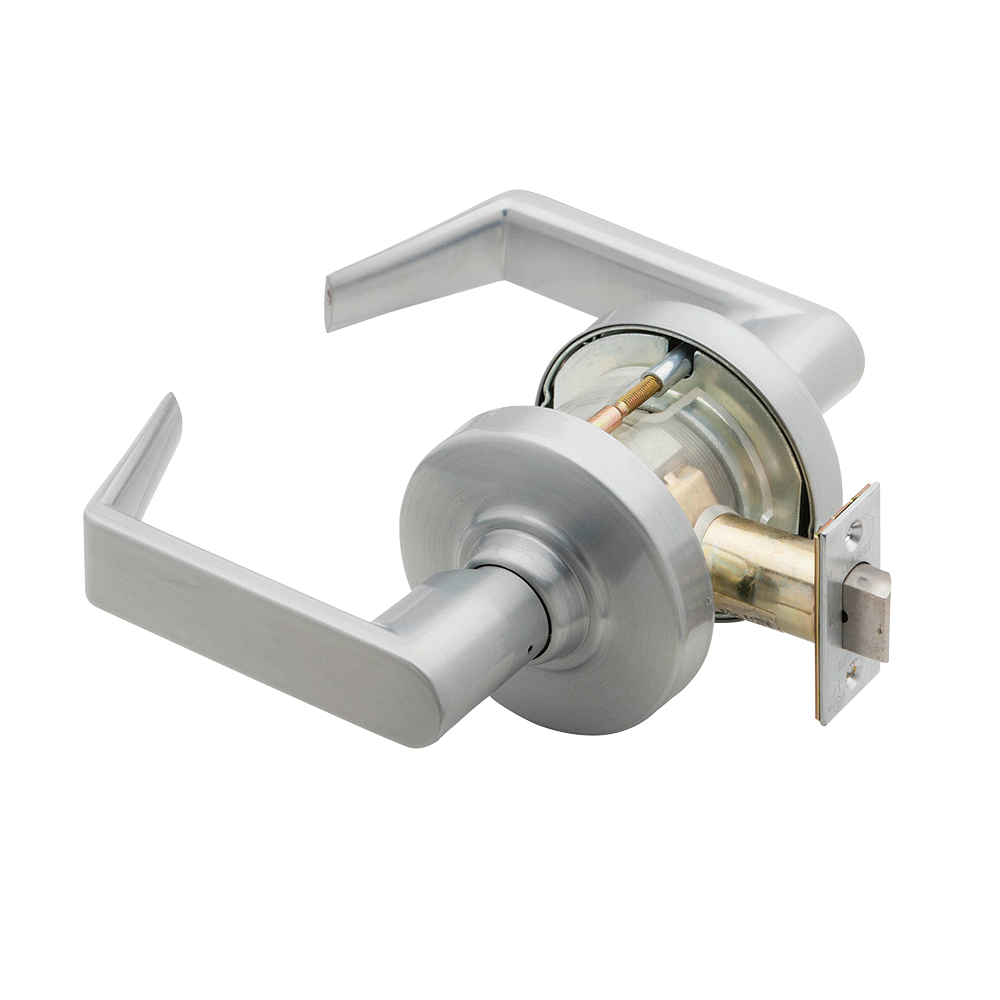

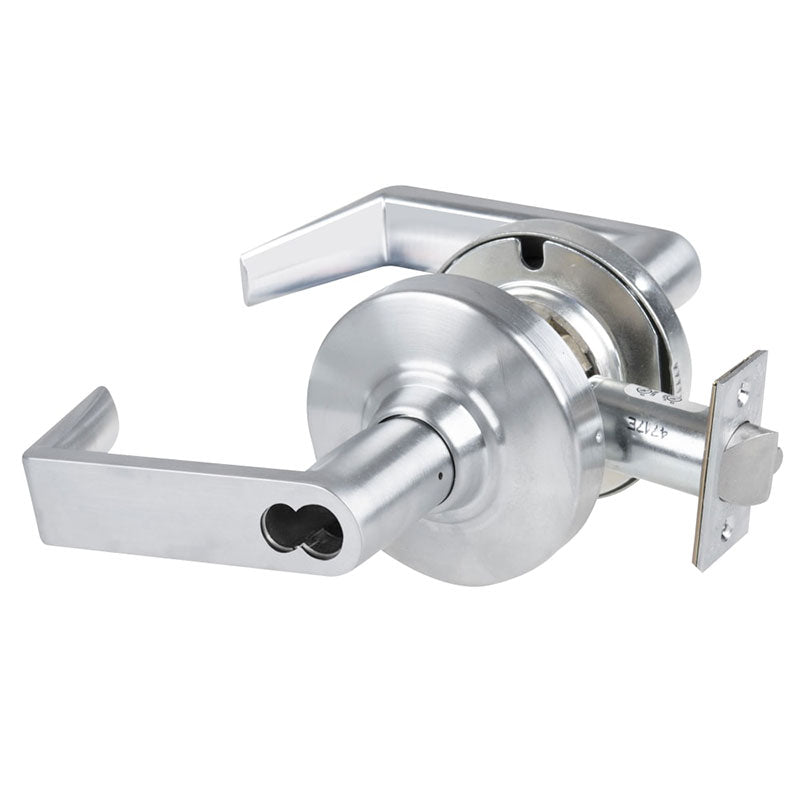

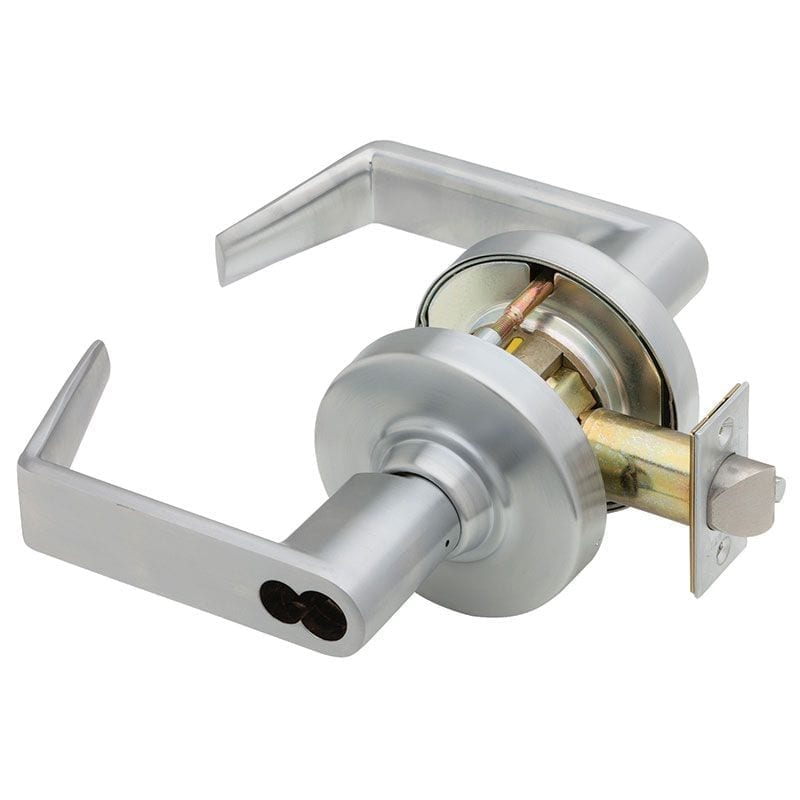

Schlage ND80-JD-RHO-626 Storeroom Lever Lock Less Full Size Interchangeable Core

Product Description

The Schlage ND80-JD-RHO-626 is a durable Grade-1 cylindrical storeroom lever lock designed for commercial use. This lever lock features a Rhodes lever and is prepped for a Schlage FSIC large format interchangeable core. It meets ANSI/BHMA Grade 1 standards, ensuring robustness and reliability in security applications.

• This lock has a fixed outside lever and can only be entered using a key.
• The inner lever remains unlocked for easy access.
• Meets ADA compliance requirements for accessibility.

Product Highlights

Designed for high-use areas, this storeroom lever lock provides exceptional security and usability in commercial environments.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Storeroom

Technical Specifications

• Lever Design: Rhodes (RHO)
• Cylinder: Less interchangeable core
• Latch: Half-inch throw, deadlocking – one-and-one-eighth inches by two-and-one-fourth inches face
• Strike: Four-and-seven-eighths inches by one-and-one-fourth inches ASA/ANSI strike
• Backset: Two-and-three-fourths inches
• ANSI/BHMA Standard: Meets and exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• Door Thickness: One-and-three-fourths inches
• Fire Rating: UL/cUL listed up to three hours (A Label)
• Handing: Non-handed
• Limited Warranty: Ten years
