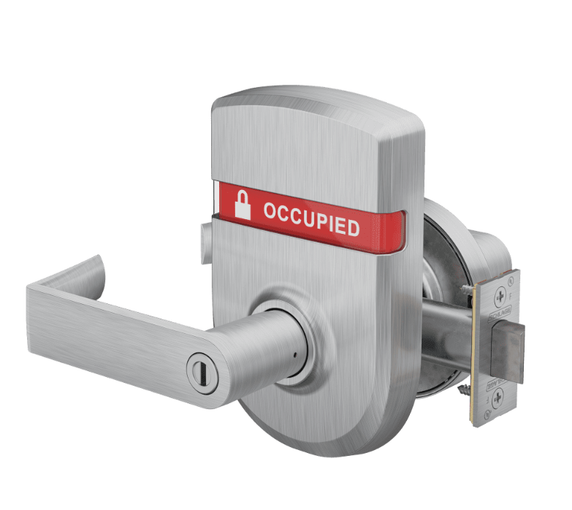

Schlage ND40S-RHO-619 Privacy Lever Lock

Product Description

The Schlage ND40S-RHO-619 is a cylindrical privacy lever lock built for heavy-duty applications. This lock features a Rhodes lever design and exceeds ANSI/BHMA Grade 1 standards, making it suitable for environments like healthcare, education, and retail.

• Exceeds ANSI/BHMA Grade 1 requirements
• Withstands abusive lever torque of 3,100 in-lb.
• Maintains performance after 16 million cycles with minimal wobble

Product Highlights

This privacy lever lock is designed for secure, reliable operation in high-traffic areas.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Privacy

Technical Specifications

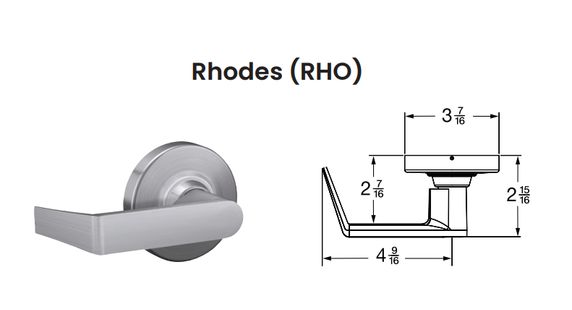

• Lever Design: RHO (Rhodes)
• Usage: Heavy Duty
• ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL/cUL listed up to 3 Hours (A Label)
• Handing: Non-Handed
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw
• Strike: 4-7/8 inches x 1-1/4 inches
• Door Thickness: 1-3/4 inches
• Warranty: 10 Years
• Function: 40 - Privacy
• Lever Style: Rhodes (RHO)
• Material: Zinc and steel components with corrosion protection
• Rose/Escutcheon: Wrought brass or zinc, plated for finish
• Latch Bolt: 1/2 inch (12 mm) throw spring latch
