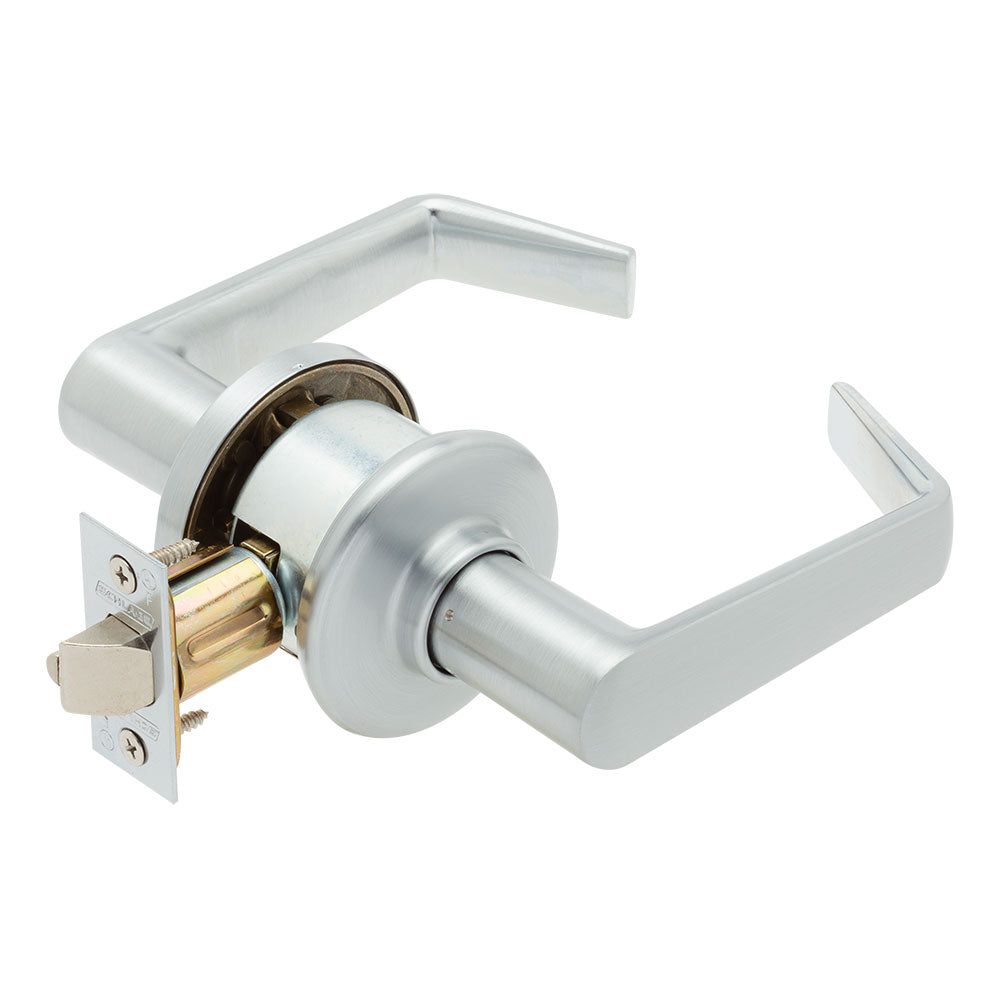

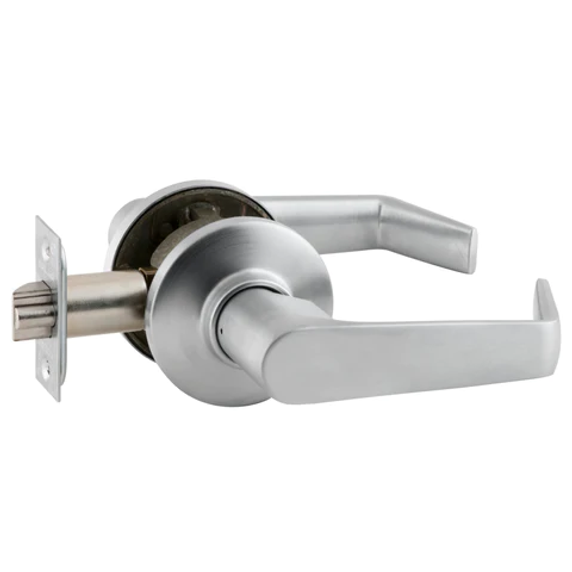

Schlage Lock S10D-SAT-626 Saturn Passage Lever Lock

Product Description

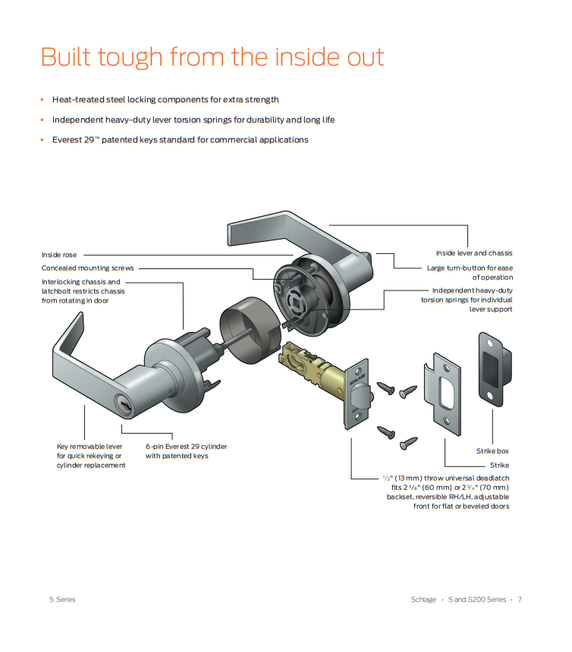

The Schlage Lock S10D-SAT-626 is a durable Grade 2 tubular lever lock designed for passage functionality. This lock is suitable for light commercial settings and apartment buildings. It features a Saturn lever design, heat-treated steel locking components for enhanced strength, and solid levers made of plated zinc for extended durability. This lock is adaptable, fitting either two and three-eighths inch or two and three-quarter inch backsets.

• Complies with ANSI/BHMA Grade 2 standards
• UL listed for three-hour fire door applications
• Adjustable backset latch for versatility

Product Highlights

This product meets stringent safety and usability standards, making it an ideal choice for various installations.

Product Information

Standard Information

• Brand: Schlage
• Finishes: Available in multiple finishes including bright brass, satin brass, oil rubbed bronze, satin nickel, bright chrome, and satin chrome.

Technical Specifications

• Lock Function: Passage

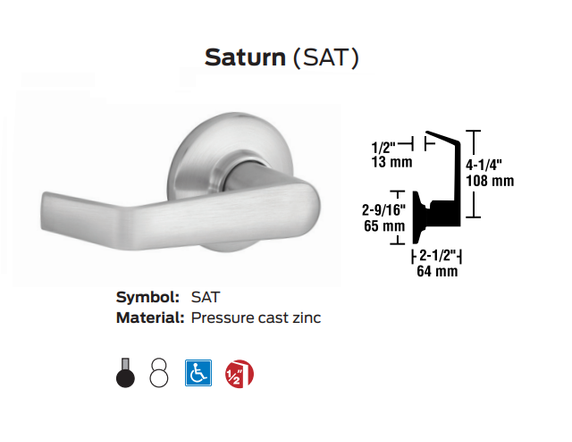

• Lever Design: SAT (Saturn)
• Backset: Adjustable from two and three-eighths inch to two and three-quarter inch
• Latch Dimensions: One inch by two and one-fourth inch
• Strike Dimensions: One and one-eighth inch by two and three-quarter inch
• Usage: Medium Duty
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL/cUL listed for up to three hours
