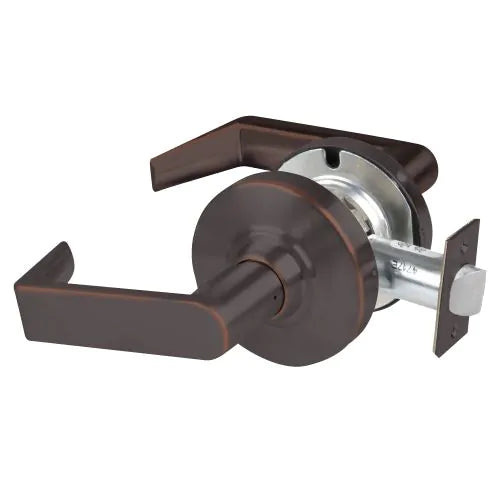

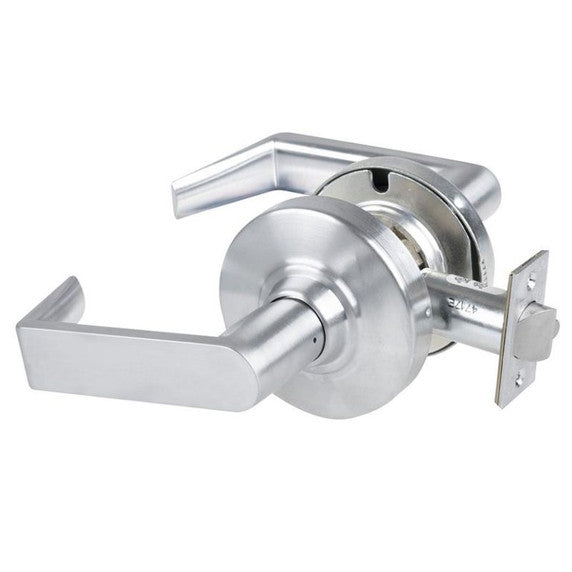

Schlage Lock ND10S-RHO-643E Heavy Duty Passage Lever Lock Rhodes Style

Product Description

The Schlage Lock ND10S-RHO-643E is a heavy-duty passage lever lock with a Rhodes style lever. Designed for commercial use, this Grade 1 cylindrical lock is non-handed, ensuring easy installation in various applications like healthcare, education, and retail.

• Heavy Duty Passage Lever Lock
• Rhodes Style Lever
• Non-Handed Design

Product Highlights

This lock is certified Grade 1, operating more than three million cycles without failure, making it a reliable choice for high-traffic areas.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: ND10S-RHO-643E

Technical Specifications

• Series: ND Series - Grade 1

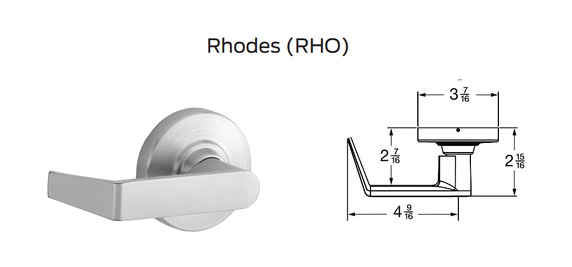

• Lever Style: Rhodes (RHO)

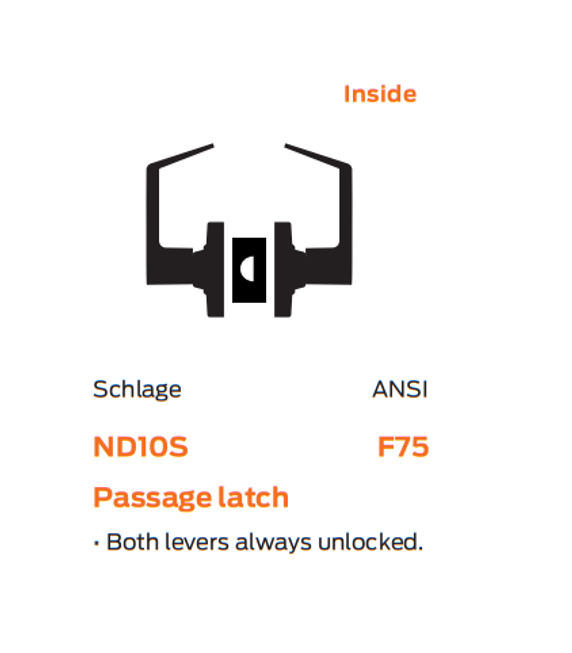

• Function: Passage Latch - ANSI F75
• Handing: Non-Handed
• Door Range: 1 5/8 inches - 2 1/8 inches standard
• Backset: 2 3/4 inches (70 mm) standard; 2 3/8 inches (60 mm) available
• Faceplate: Standard: 1 1/8 inches x 2 1/4 inches, Optional: 1 inch x 2 1/4 inches for 2 3/8 inches backset doors
• Latch Bolt: Standard: 1/2 inch throw via Oil Impregnated Stainless Steel
• Strikes: Standard: ANSI Curved Lip: 1 1/4 inches x 4 7/8 inches x 1 3/16 inches; Optional: T Strike with alternative lip lengths
• Warranty: 10 years
• Certifications: ANSI/BHMA A156.2, ICC A117.1, UL/cUL, CA Fire Code, FL Building Code
