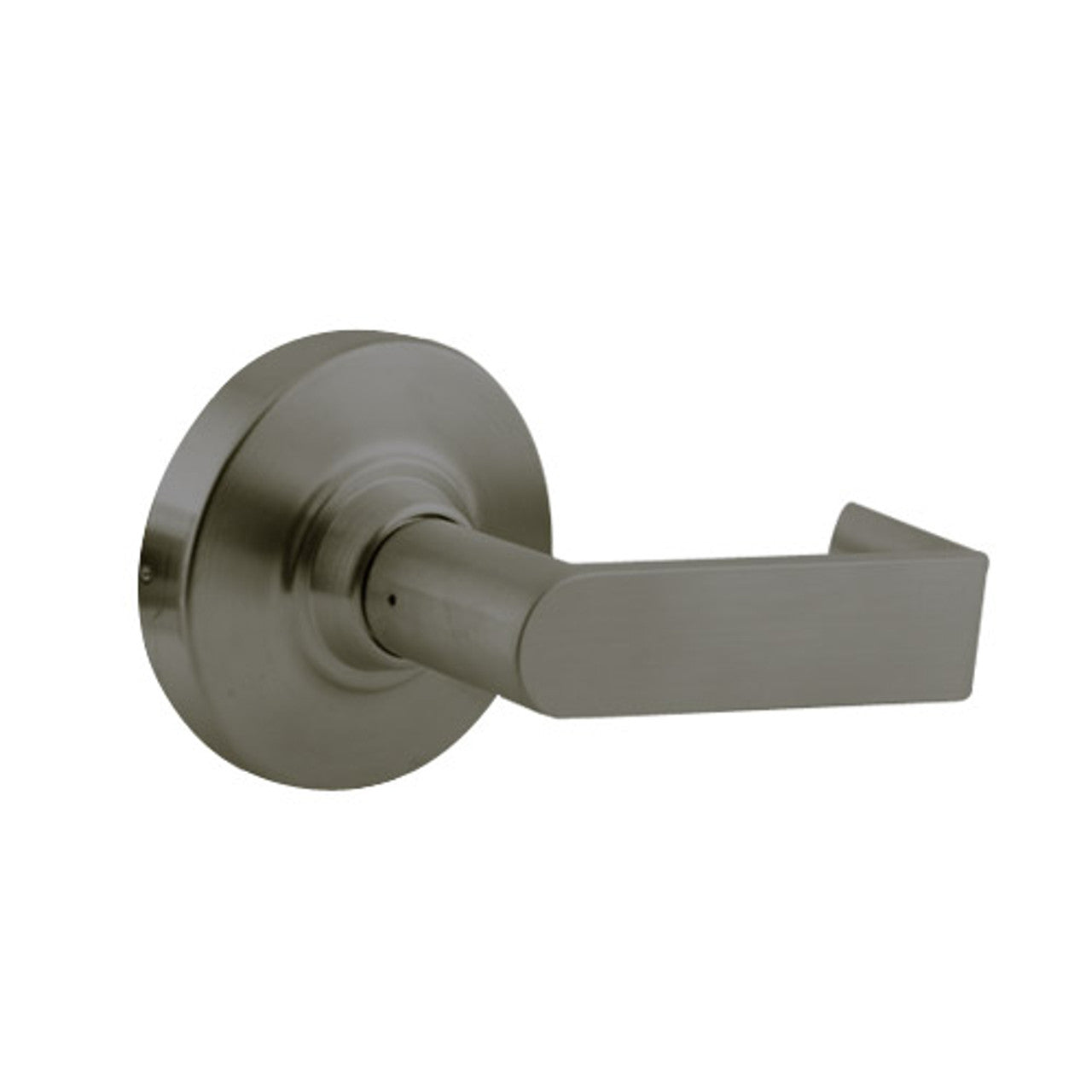

Schlage Lock ND10S-RHO-613 ND Series Rhodes Style Lock Passage Function

Product Description

The Schlage ND10S-RHO-613 is a commercial cylindrical lock designed for high-traffic areas. This lock features a passage function, ensuring easy access with both levers always unlocked. The ND Series locks, made by Schlage, meet ANSI Grade 1 standards, making them suitable for various commercial applications.

• Passage latch: Both levers always unlocked
• Inside lever is free for immediate egress
• ANSI/BHMA A156.2-2011, Series 4000 Grade 1 certified

Product Highlights

The ND10S-RHO-613 offers a durable design, ensuring long-lasting performance while being easy to service and maintain.

Product Information

Standard Information

• Brand: Schlage
• MPN: ND10S-RHO-613

Technical Specifications

• Condition: New
• Trim: Lever Trim
• Color: Oil Rubbed Bronze
• Key Function: Non-Keyed
• Handing: Field Reversible
• ANSI Grade: Grade 1
• UL: Yes
• Backset: 2-3/4 inches
• Design: Flat lever with return
• Function: Passage latch
• Latch Face: Square corner 1-1/8 inch wide
• Product Type: Cylindrical lock
• Sales Category: Passage set
• Strike Type: ANSI
• Throughbolt Pattern: 2-3/4 inch C.C. 12 and 6 o'clock
• Rose Diameter: 3-7/16 inches
• Projection: 2-1/2 inches
• Lever Length: 4-7/8 inches
• Door Thickness: 1-5/8 inch - 2-1/8 inch (41mm - 54mm) standard
• Strike: 1-1/4 inch x 4-7/8 inch ANSI type
• Latch: 1-1/8 inch x 2-1/4 inch, square corner faceplate, 1 inch housing diameter, 1/2 inch throw
