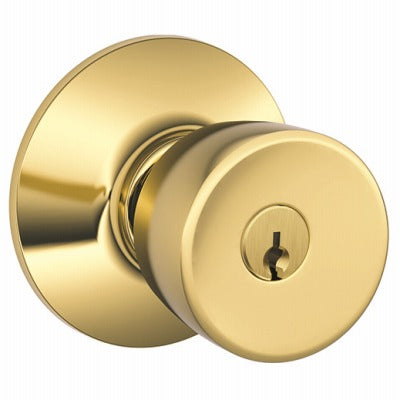

Schlage Lock Co F51VBELL505 Entry Lockset Bell Design

Product Description

The SCHLAGE LOCK CO F51VBELL505 is a Bell design entry lockset finished in Polished Bright Brass, built for residential entry door applications. It features a solid brass knob and Schlage's Ultima Lifetime Anti-Tarnish finish, which resists corrosion and wear in high-contact door hardware installations. The dual-option latch accepts both radius corner and drive-in configurations, and the universal backset accommodates either 2-3/8 inches or 2-3/4 inches, covering the two most common residential door prep standards. This lockset meets ANSI Grade 2 quality standards and carries a lifetime mechanical warranty, making it a dependable choice for professional door hardware installation.

This entry lockset is suited for residential exterior door installations where keyed entry and interior push-button privacy or passage locking is required. The Bell knob design fits traditional and transitional architectural styles common in residential construction and remodeling. The universal backset adjustment reduces the need for separate SKUs on job sites where door prep dimensions vary. Installers will find the dual latch option useful when working with doors that have either pre-routed or standard square-corner strike pockets.

Key Features

• Bell design solid brass knob in Polished Bright Brass finish
• Ultima Lifetime Anti-Tarnish finish resists tarnishing and corrosion over the lifetime of the hardware
• Dual-option latch fits both radius corner and drive-in door preparations
• Universal backset adjusts to 2-3/8 inches or 2-3/4 inches to match standard residential door preps
• ANSI Grade 2 quality rating for residential security applications
• Lifetime mechanical warranty included

Compatibility

Designed as an OEM-style replacement or new-install entry lockset for standard residential exterior doors with a 2-3/8 inch or 2-3/4 inch backset and a cylindrical bore preparation.

Installation Notes

Installation is performed by a qualified locksmith, carpenter, or general contractor. Verify door bore diameter and backset measurement before installation to confirm the correct latch setting. Follow local building codes for exterior door hardware requirements. No special tools beyond standard hand tools are required for typical cylindrical lockset installation.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
