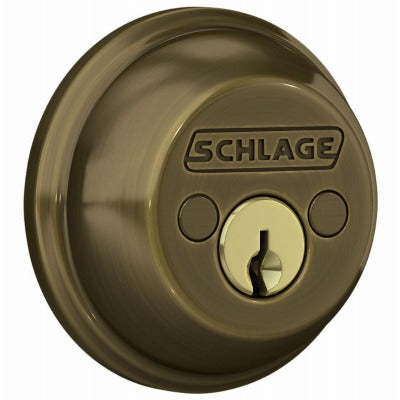

Schlage Lock Co B62NV609 Double Cylinder Deadbolt

Product Description

The SCHLAGE LOCK CO B62NV609 is a double cylinder deadbolt lock finished in antique brass, designed for residential and light commercial door applications where keyed operation is required on both sides of the door. The deadbolt is thrown or retracted by key from the exterior and by a keyed cylinder on the interior, eliminating the thumbturn. The bolt automatically deadlocks when fully thrown, providing passive security without additional user action. Meets ANSI E2142 Grade 2 standards and features a 1-inch throw. Installed by licensed locksmiths or general contractors during new construction or retrofit projects.

The B62NV609 is suited for residential entry doors and light commercial applications where a thumbturn-free interior is required, such as doors with nearby glass panels. The universal backset accommodates standard door preparations, and the dual option latch supports radius corner or drive-in installation, reducing the need for additional hardware during fitting. Each package contains 4 units, making it practical for multi-door or multi-unit projects. The antique brass finish coordinates with period or transitional door hardware.

Key Features

• Double cylinder operation: keyed entry and egress from both interior and exterior
• Bolt automatically deadlocks when fully thrown for passive security
• 1-inch bolt throw meeting ANSI E2142 Grade 2 requirements
• Universal backset fits standard door preparations without modification
• Dual option latch supports radius corner and drive-in installation
• Furnished with door frame reinforcer for added frame integrity

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard residential and light commercial door preparations meeting ANSI Grade 2 requirements.

Installation Notes

Installation is performed by a licensed locksmith or qualified contractor. Verify door thickness and backset measurement before installation to confirm fitment with existing bore pattern. Disengage all power and secure the work area before modifying any door hardware on access-controlled openings. Follow all applicable local building codes regarding egress requirements when installing double cylinder deadbolts, as keyed interior cylinders may be restricted in certain occupancy types.
