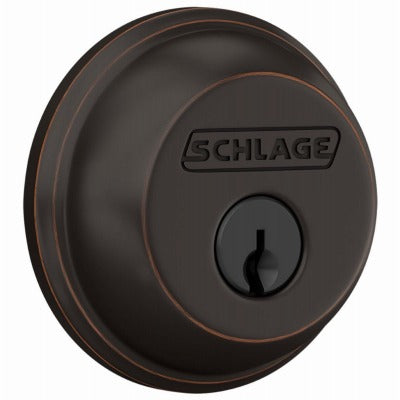

Schlage Lock Co B60NV716 Single Cylinder Deadbolt

Product Description

The SCHLAGE LOCK CO B60NV716 is a single cylinder deadbolt finished in Aged Bronze, designed for residential door security applications. The deadbolt is thrown or retracted by key from the exterior and by a turn unit from the interior. When fully thrown, the bolt automatically deadlocks, preventing retraction by force. The 1-inch throw bolt meets ANSI E2152 Grade 2 performance standards. A universal backset accommodates standard door preparations, and a dual-option latch supports radius corner or drive-in installation, reducing the need for multiple SKUs on a job site.

This deadbolt is suited for residential exterior door installations where Grade 2 security and a traditional Aged Bronze finish are specified. The universal backset fits both 2-3/8-inch and 2-3/4-inch backset doors, making it adaptable across common residential door configurations. The package includes Schlage's door frame reinforcer, which is designed to strengthen the strike area of the door frame at the point of installation. Locksmiths, carpenters, and general contractors are the primary installers of this hardware.

Key Features

• Single cylinder operation: key exterior, turn unit interior
• Bolt automatically deadlocks when fully thrown
• 1-inch throw bolt for ANSI E2152 Grade 2 compliance
• Universal backset fits standard residential door prep
• Dual-option latch: radius corner or drive-in installation
• Includes Schlage door frame reinforcer

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard residential exterior doors with ANSI-prep cylindrical bore patterns.

Installation Notes

Installation is performed by locksmiths, carpenters, or general contractors using standard door hardware tools. Confirm door backset measurement before installation to select the correct backset adjustment on the latch. The door frame reinforcer should be installed at the strike location per the included instructions to ensure Grade 2 performance is achieved. Follow local building codes for exterior door hardware requirements.
