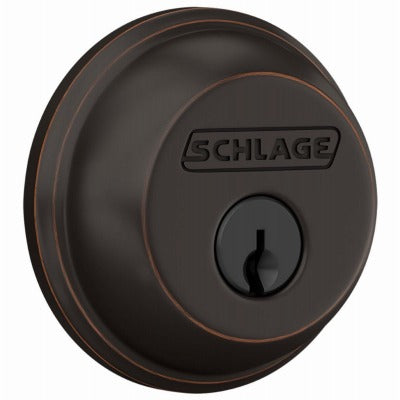

Schlage Lock Co B60N716 Single Cylinder Deadbolt Aged Bronze

Product Description

The SCHLAGE LOCK CO B60N716 is a single cylinder deadbolt finished in aged bronze, designed for residential door security applications. The deadbolt is thrown or retracted by key from the exterior and by a turn unit from the interior. It carries a Grade 1 rating and meets ANSI/BHMA A156.5-2001 certification, the highest residential deadbolt standard. The universal backset accommodates 2-3/8 inches or 2-3/4 inches, and the door thickness range spans 1-3/8 inches to 1-3/4 inches, making it suitable for most standard residential door preparations without additional hardware modifications.

This deadbolt is intended for residential entry doors where a single cylinder configuration is appropriate. The aged bronze finish coordinates with matching door hardware in oil-rubbed and dark bronze finish families. The universal backset eliminates the need to confirm existing strike plate and latch bore alignment before ordering, reducing callbacks on retrofit installs. Locksmiths, general contractors, and finish carpenters typically encounter this unit on exterior entry doors during new construction and remodel work alike.

Key Features

• Grade 1 ANSI/BHMA A156.5-2001 certified for highest residential deadbolt performance
• Universal backset fits 2-3/8 inches and 2-3/4 inches without separate components
• Door thickness range of 1-3/8 inches to 1-3/4 inches covers standard residential doors
• Key cylinder exterior operation with interior thumb turn for egress compliance
• Aged bronze finish for coordination with dark and oil-rubbed bronze hardware families
• Box pack configuration suitable for individual installation or contractor supply

Compatibility

Designed as an OEM-style replacement or new-install deadbolt for standard residential entry doors with a 2-1/8 inches cross-bore preparation and either a 2-3/8 inches or 2-3/4 inches backset.

Installation Notes

Installation is performed by a licensed locksmith, finish carpenter, or general contractor following the door manufacturer's prep specifications. Confirm cross-bore diameter and backset dimension before installation. No special tools beyond a screwdriver and a hole saw are typically required for a standard door prep. Always verify that the strike plate mortise depth in the door jamb is sufficient for full deadbolt throw before considering the installation complete.
