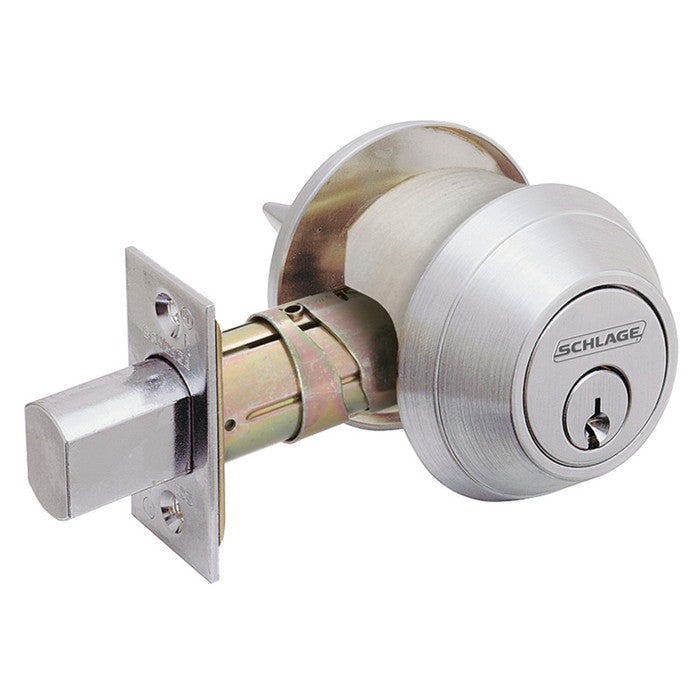

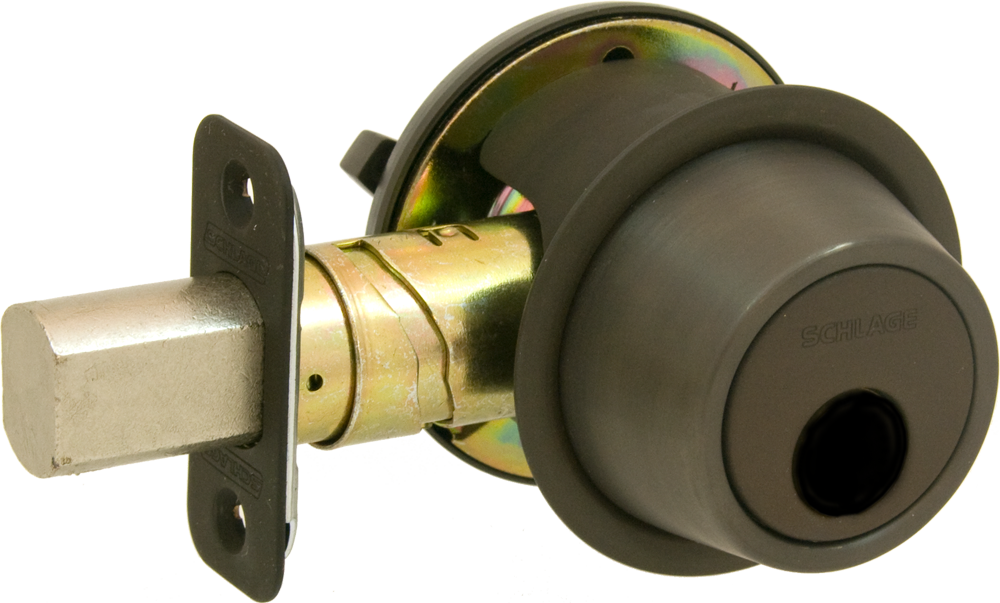

Schlage Lock B560-L-613 Grade 2 Single Cylinder Deadbolt

Product Description

The Schlage Lock B560-L-613 is a Grade 2 Single Cylinder Deadbolt designed for both strength and durability. This deadbolt incorporates security features like anti-saw and anti-pry capabilities. It has an adjustable backset measuring two and three-eighths inches or two and three-quarters inches and utilizes a six-pin conventional cylinder with a C Keyway.

• Solid zinc bolt with hardened steel anti-saw pin
• Metal dustbox for deep anchoring in wood door frames
• Lock-in-place helix design allows adjustable backset

Product Highlights

The B560-L-613 is ideal for commercial applications, providing reliable security and ease of use.

Product Information

Standard Information

• Type: Deadbolt
• Grade: Grade 2

Technical Specifications

• Duty Level: Medium Duty
• Keys Included: 2
• Warranty: 10 Year
• Standard Latch: Adjustable two and three-eighths inches or two and three-quarters inches backset
• Standard Strike: Square corner, one and one-eighth inches by two and three-quarters inches
• Keyed: Yes
• ANSI/BHMA: E0152
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Model: B560
• Function Description: Deadlocking deadbolt thrown or retracted by key outside or thumbturn inside
• Lock Function: Deadbolt
• Lock Type: Deadbolts
• Product Attribute: Deadbolts
• Collection: B500 Series
• Cylinder and Keyways: Six-pin conventional cylinder (C Keyway)
