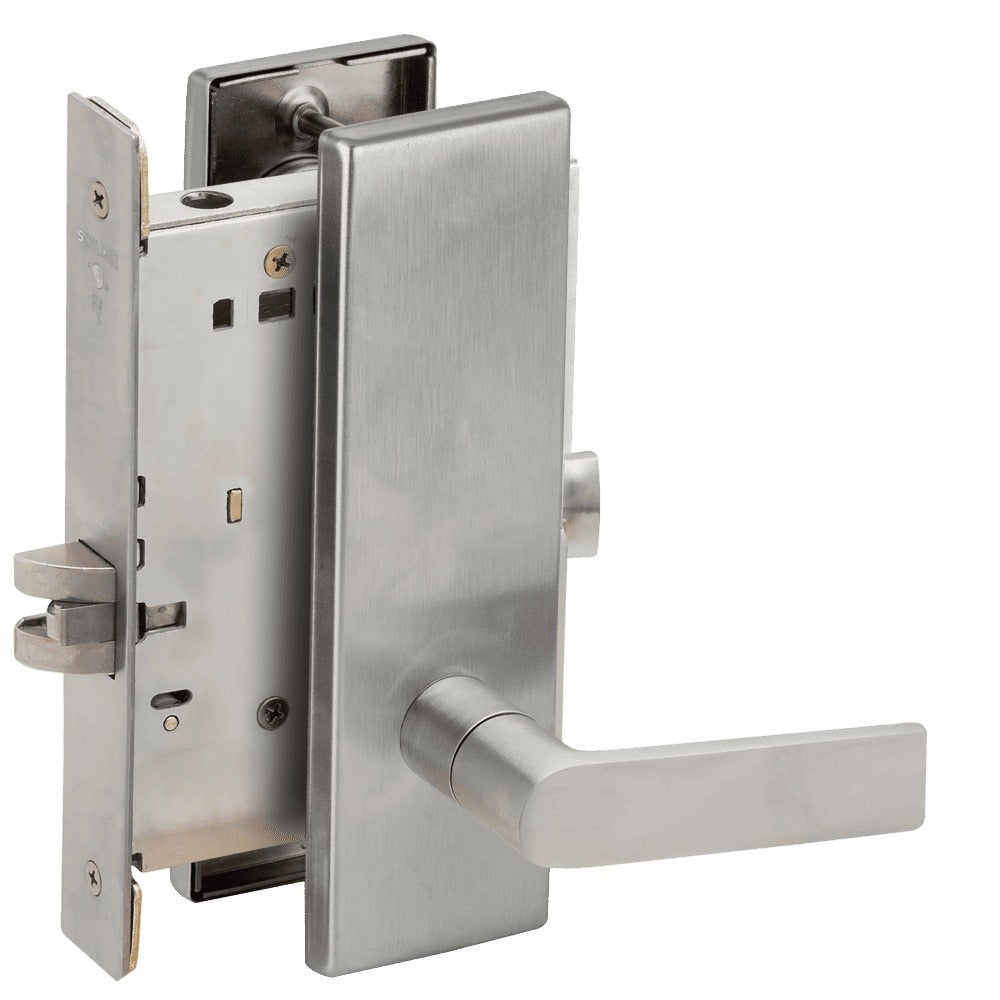

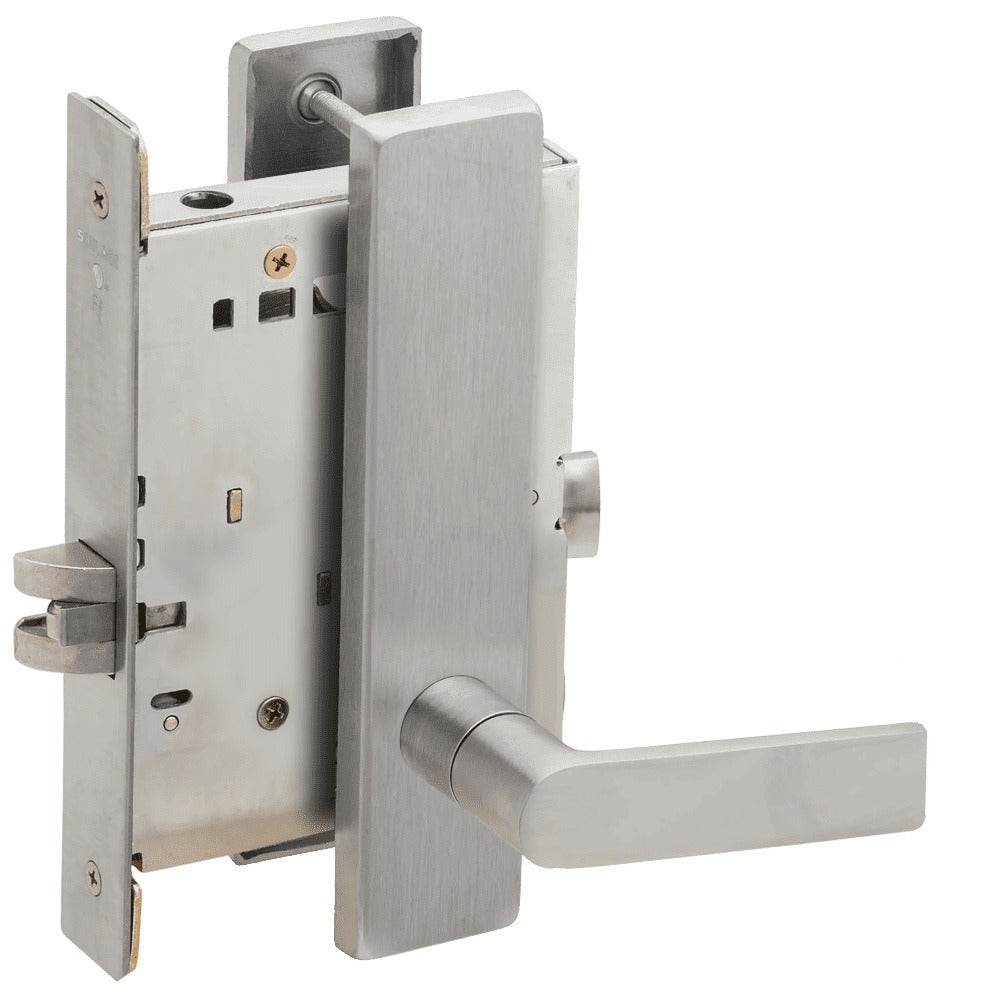

Schlage L9010 01A 626 Passage Mortise Lock (Each)

Brand: SCHLAGE
SKU: L9010 01A 626
Availability: In Stock

Ships same day if ordered by 12 pm
$652.84
$652.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schlage L9010 01A 626 is a Grade 1 passage mortise lock with an 01 lever and A rose, designed for commercial use and field-reversible handing. The L-series cold-rolled steel case with zinc dichromate plating measures 4-7/16" x 6-1/16" x 1" and uses a 2-3/4" backset. The passage latch retracts by lever from either side; latchbolt is 3/4" stainless steel with anti-friction tongue and a 1" stainless steel deadbolt throw.

  • Grade 1 passage (non-locking) mortise lock; ANSI F01 function; ADA-compliant lever operation
  • Field-reversible handing without disassembly; inside lever always free for immediate egress
  • Cold-rolled steel case with zinc dichromate plating; case size 4-7/16" x 6-1/16" x 1"; 2-3/4" backset; 3/4" latchbolt and 1" deadbolt, stainless steel

Product Highlights

Grade 1 commercial passage mortise lock with 01 lever and A rose, field-reversible, ANSI/BHMA certified and UL listed for 3-hour fire doors.

Product Information

Standard Information

  • Brand: SCHLAGE
  • Manufacturer Part Number: L9010 01A 626
  • Country of Origin: Mexico
Technical Specifications
Brand
Schlage
Manufacturer Part Number
L9010 01A 626
Model
L9010-01A-626
Function
Passage (non-locking) latch mortise lock; ANSI F01
Grade
Grade 1
Lever Style
01 lever
Rose
A rose (wrought), 2-1/8" diameter
Handing
Field-reversible without disassembly
Case Material
Cold rolled steel with zinc dichromate plating
Case Size
4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
Backset
2-3/4" (70 mm)
Door Thickness
Standard 1-3/4" (44 mm); optional 1-3/8" (35 mm) to 2-1/2" (64 mm)
Latchbolt
3/4" (19 mm) stainless steel with anti-friction tongue
Deadbolt
1" (25 mm) stainless steel throw
Strike
ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) with dust box; square corner strike options
Escutcheon
Full face escutcheon (L) with 2-1/8" diameter wrought rose (A)
Finish
Satin chrome (626)
Armor Front
1-1/4" x 8" (32 mm x 203 mm)
Spacing
Knob/lever to cylinder: 3-7/8" (98 mm); knob/lever to thumbturn hub: 2-11/16" (68 mm)
Case Features
Heavy-gauge steel case, all-metal zinc dichromate-plated working parts, break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure fire mode
Certifications
ANSI/BHMA A156.13 Series 1000 Grade 1; UL listed for use on 3-hour fire doors
Accessibility
Levers comply with ADA operability requirements; operating force max 5 pounds (22.2 N)
Country of Origin
Mexico
