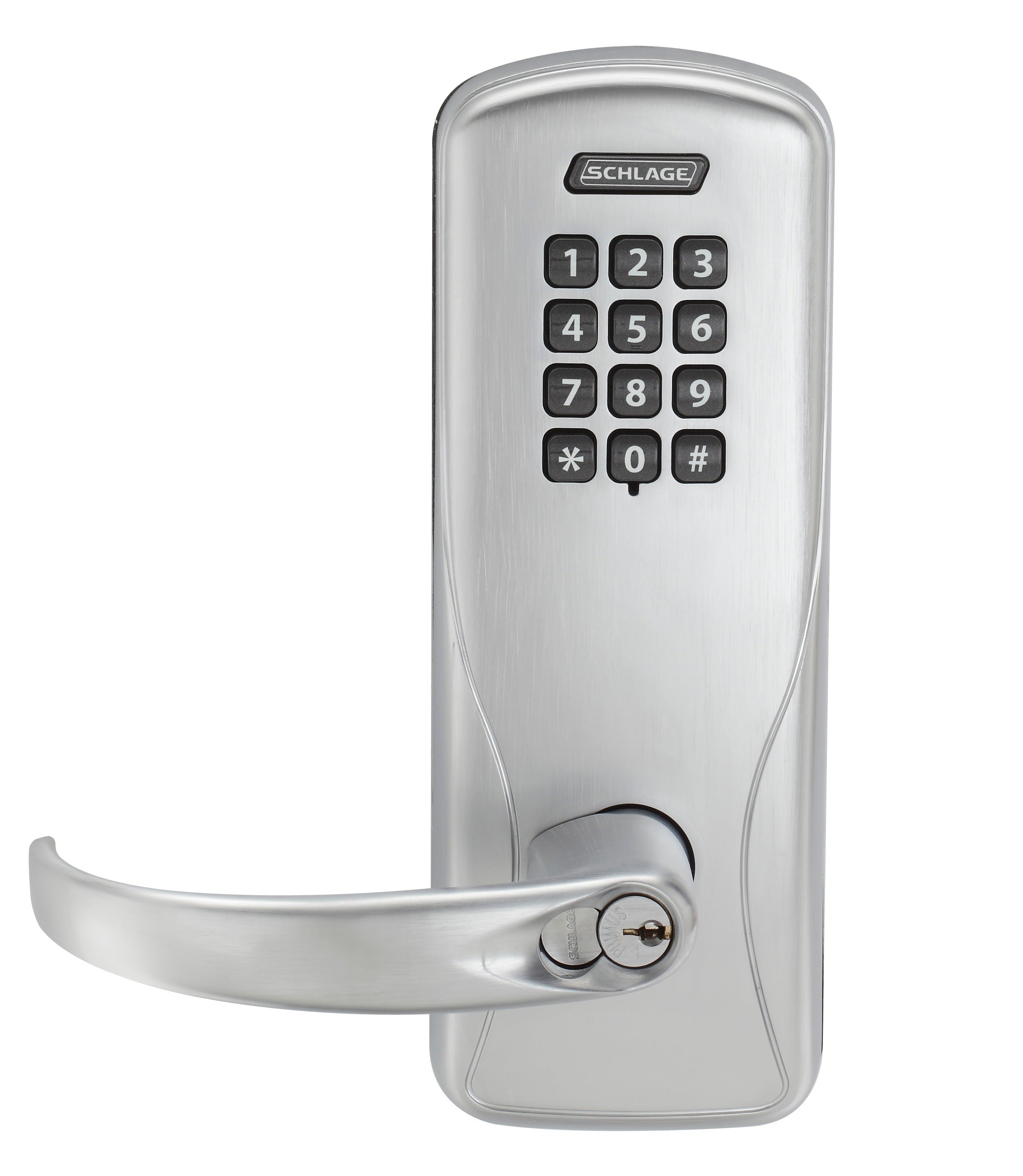

Schlage Electronics CO100CY70KPSPA626 Cylindrical Keypad Lock

Product Description

The SCHLAGE ELECTRONICS CO100CY70KPSPA626 is a standalone programmable electronic lock designed for cylindrical door prep applications in commercial and institutional environments. This unit combines keypad access control with a Sparta lever trim and ships with a 13247 latch and 10025 strike included. The lock operates in a classroom and storeroom function, meaning the lever can be locked or unlocked via keypad code without requiring a networked access control system. Weighing 10.05 pounds and measuring 15.8 inches in length, 11.8 inches in width, and 5 inches in height, it is a self-contained solution suited for facilities requiring standalone credential management. Licensed locksmiths, security integrators, and commercial door hardware installers are the primary trades that specify and install this hardware.

This lock is designed for commercial and institutional buildings including schools, healthcare facilities, government offices, and multi-family properties where controlled access to individual rooms is required. The classroom and storeroom function supports scenarios where a room must remain locked to outside entry by default, with keypad codes used to grant temporary or permanent access. The C keyway cylinder provides a familiar key override option for building administrators. The Satin Chrome finish is a standard commercial finish that coordinates with common architectural hardware specifications. The unit ships as a complete kit including latch and strike, reducing the need for separate hardware orders.

Key Features

• Standalone programmable keypad — no network or panel required for operation
• Classroom and storeroom function for locked-default door control
• Includes 13247 latch and 10025 strike for a complete installation kit
• Sparta lever trim in Satin Chrome finish for standard commercial aesthetics
• C keyway cylinder provides mechanical key override capability
• Cylindrical door prep — fits standard commercial cylindrical bore patterns

Compatibility

Designed as an OEM-style replacement or new-installation unit for commercial cylindrical door prep applications requiring standalone electronic keypad access control with classroom and storeroom functionality.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial cylindrical lock hardware and applicable building codes. Verify door thickness and bore dimensions are compatible with cylindrical lock specifications before installation. Disconnect or isolate any existing access control wiring at the door before beginning work. Program all access codes and test all functions, including the key override, before returning the door to service.
