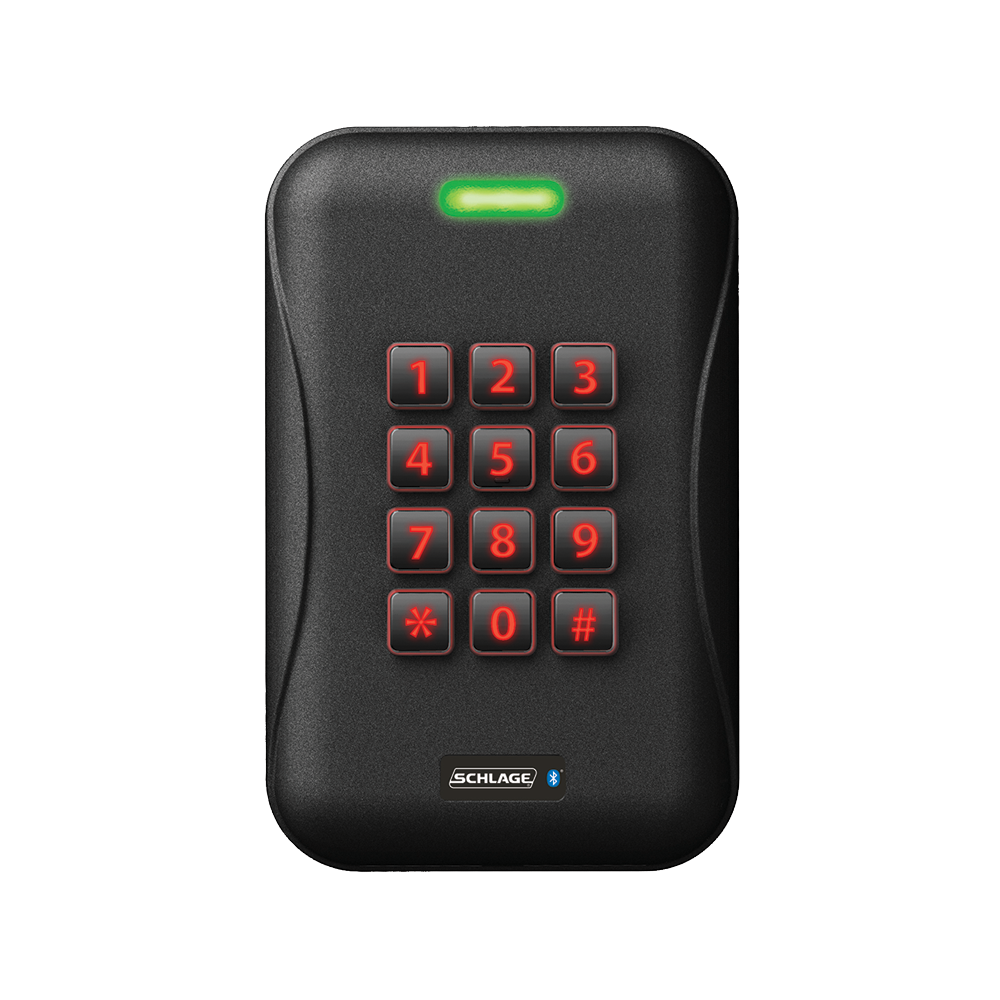

Schlage Electronic Security MTB15-BLK-C1 Mobile Enabled Multi-Technology Wall Reader

Product Description

The Schlage Electronic Security MTB15-BLK-C1 is a mobile-ready wall reader designed for access control. This unit supports Bluetooth (BLE) and NFC technologies, allowing it to read both proximity and smart credentials. It enables a smooth upgrade to more secure credential systems. The MTB15 features support for the Open Supervised Device Protocol (OSDP), which allows secure two-way communication.

• Compatible with various credential technologies including Schlage Mobile Bluetooth Credentials (BLE) and NFC.
• Out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure communication.
• Improved voltage range of five to twenty-eight volts for easy power management.

Product Highlights

This product is ideal for enhancing security systems by offering versatile credential support and easy integration with existing systems.

Product Information

Standard Information

• Brand: Schlage Electronic Security
• MPN: MTB15-BLK-C1

Technical Specifications

• Physical dimensions (HxWxD): five point one inches x three point two five inches x zero point seven six inches
• Frequency: two point four GHz, thirteen point five six MHz and one hundred twenty-five kHz
• System interface: Wiegand / Clock & Data / OSDP / Optional RS-485
• Standards: ISO 14443A, ISO 15693
• Power: five to twenty-eight VDC
• Wiring: twenty-two AWG, twelve conductor, twelve inches length
• Operating temperatures: negative thirty-one degrees to one hundred fifty-one degrees Fahrenheit (negative thirty-five degrees to sixty-seven degrees Celsius)
• LED: red, green, or amber visual indicator and audio feedback
• Material: PBT Polymer
