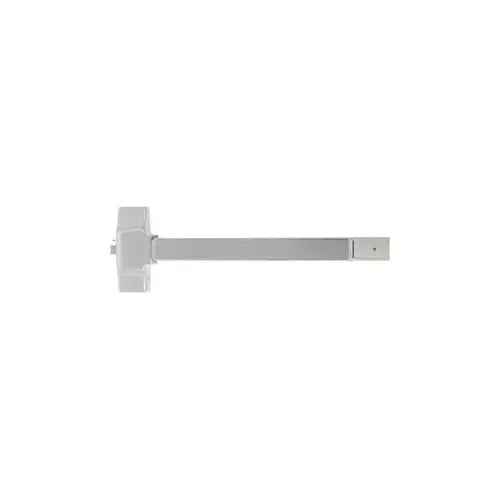

Schlage ED1000-R-EO-3FT-US32D Rim Exit Device 36 Inch

Product Description

The Schlage ED1000-R-EO-3FT-US32D is a grade 1 rim exit device designed for doors that measure twenty-nine inches to thirty-six inches wide. This exit device is made with a durable aluminum mechanism case to ensure longevity and reliability. It features a wide stile pushpad suitable for both hollow metal and wood doors.

• Grade 1 rim exit device for durability
• Designed for doors between twenty-nine and thirty-six inches wide
• Aluminum construction for enhanced strength

Product Highlights

Product Information

Standard Information

• Manufacturer: Schlage
• Function: Exit Only

Technical Specifications

• Hand: Reversible
• Door Thickness: 1-3/4 inches
• Door Width: 29 inches to 36 inches
• Device Length: 36 inches (3 foot)
• Fire Rated: No
• Device Type: Rim Device
• Minimum Stile Size: 4-1/2 inches
• Package Quantity: 1
• Physical Appearance: Wide Stile Pushpad
• Finish: Satin Stainless Steel
• Grade: ANSI/BHMA Grade 1
• Function Description: Exit Only - No Trim
• Device Rating: Panic Exit Device
• Item Weight: 12.67 lbs
• Dimensions: 36 inches x 10 inches x 4.5 inches
