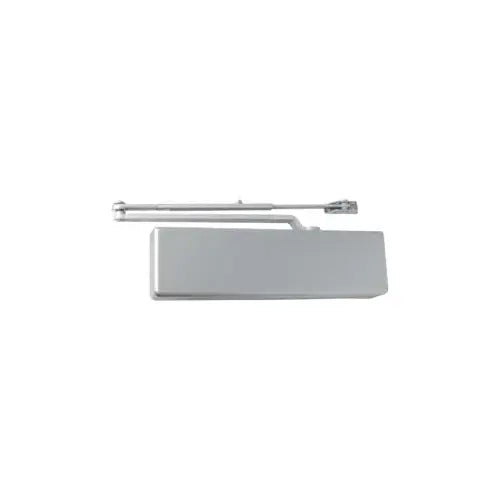

Schlage DCH1000-STD-FULL-HW/PA-ALUM Door Closer Size 1 to 6

Product Description

The Schlage DCH1000-STD-FULL-HW/PA-ALUM is a durable door closer designed for heavy-duty applications. This grade 1 surface door closer features a tri-mount capability, allowing installation in regular, parallel, or top jamb configurations. It includes a hold-open arm and adjustable backcheck, providing flexibility based on user needs.

• Durable aluminum finish and construction
• Meets ADA accessibility guidelines
• Adjustable closing speed settings

Product Highlights

This door closer supports adjustable sizes from 1 to 6, offering a non-handed design for compatibility with various door types.

Product Information

Standard Information

• Brand: Schlage
• MPN: DCH1000-STD-FULL-HW/PA-ALUM

Technical Specifications

• Warranty: 5 years limited
• Grade: ANSI/BHMA Grade 1
• Finish: Aluminum Painted
• Closer Size: 1-6
• Mounting Style: Tri mount
• Hold Open: With hold open
• Mounting Location: Push or pull side
• Application: Commercial
• Door Size: 2' 4inch to 4' 6inch (Interior); 2' 6inch to 4' (Exterior)
• Door Thickness: 1-3/4 inch
• Product Material: Cast aluminum
• Maximum Door Opening: 180 degrees
• Function: Hold open arm with PA shoe
• Closer Arm Type: HW/PA
• Weight: 8 lbs
• Dimensions: Length 15 inches, Width 5.5 inches, Height 4.5 inches
