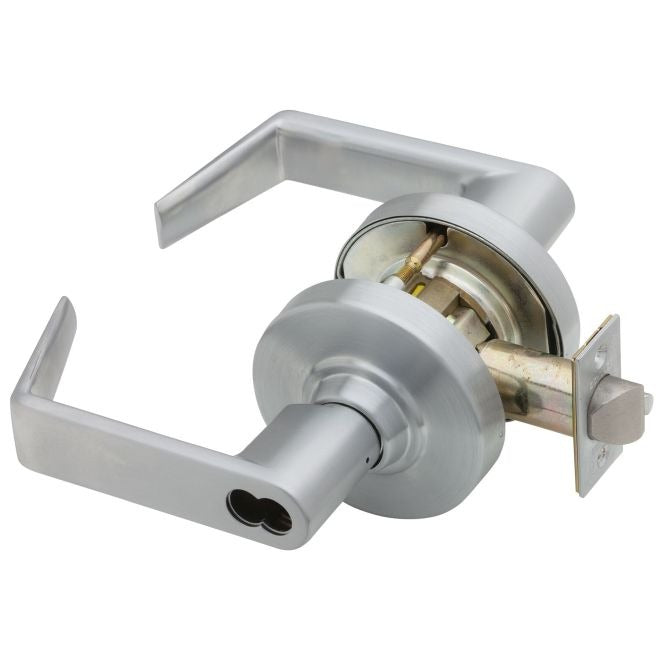

Schlage Commercial ND96BRHO626 Storeroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ND96BRHO626 is a Vandlgard-series storeroom lever lock in the ND Series, designed for commercial and institutional door hardware applications. It ships with a 13-247 latch and 10-025 strike, and features a Small Format Less Core (SFIC-ready) cylinder configuration. The satin chrome finish (626) provides corrosion resistance suitable for high-traffic interior and semi-exposed environments. This lock is installed by licensed locksmiths, commercial door hardware technicians, or qualified general contractors working on commercial or institutional facilities.

The ND96BRHO626 suits storeroom function applications where the outside lever is always locked and can only be opened with a key, while the inside lever allows free egress. The Rhodes (RHO) lever trim design is a standard commercial aesthetic appropriate for office buildings, schools, healthcare facilities, and other institutional settings. The SFIC-ready core configuration allows facilities using interchangeable core keying systems to install their own cores without special factory orders.

Key Features

• Storeroom function: outside lever fixed and requires key entry, inside lever always free for egress
• Small Format Less Core (SFIC-ready) for interchangeable core keying systems
• Includes 13-247 latch and 10-025 strike for complete installation
• Satin chrome (626) finish for durability in commercial environments
• Rhodes lever trim design for standard commercial aesthetics
• Vandlgard construction provides resistance to forced-entry and lever abuse

Compatibility

Designed as an OEM-style commercial door hardware component for use in the Schlage Commercial ND Series lock platform with Small Format Interchangeable Core (SFIC) keying systems.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards for commercial grade hardware. Ensure the door is properly prepped to ANSI A115 series standards before mounting. Do not install the core until the lock body is fully secured to the door. Verify latch hand orientation before final installation, as the included latch may need to be re-handed to match door swing.
