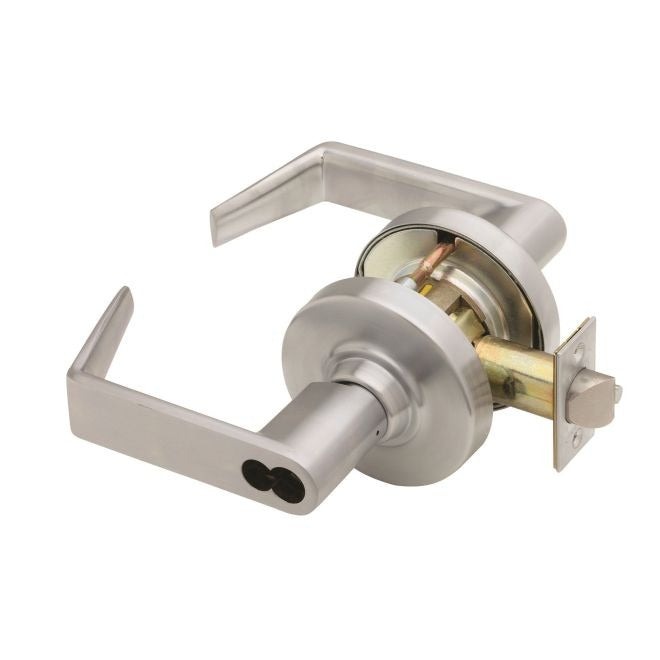

Schlage Commercial ND93JRHO626 Vandlgard Vestibule Lock

Product Description

The SCHLAGE COMMERCIAL ND93JRHO626 is a heavy-duty cylindrical lockset from the ND Series, engineered for vestibule function in commercial and institutional applications. This unit features the Vandlgard anti-vandal trim design with a Rhodes lever handle and ships in a Satin Chrome finish. It is configured as Large Format Less Core (LFLC), meaning the interchangeable core is ordered separately, giving facilities managers and locksmiths the flexibility to key the lock to an existing master key system. The package includes a 13-247 latch and a 10-025 strike plate. Installation is handled by licensed locksmiths or commercial door hardware technicians.

Vestibule function locks the lever from the outside while allowing free egress at all times from the inside, making this lockset appropriate for building entry vestibules, secured lobbies, and controlled-access corridors in commercial, institutional, and multi-family settings. The LFLC configuration is commonly specified on school, healthcare, and government projects where a Best SFIC, FSIC, or equivalent interchangeable core program is already in use. This lockset is sold as a single unit.

Key Features

• Vestibule function: outside lever locked by key, inside lever always free for egress
• Vandlgard anti-vandal trim resists torque and forced-entry attacks on the lever
• Large Format Less Core (LFLC) accepts a separately sourced interchangeable core
• Rhodes lever design meets ADA-compliant lever handle geometry
• Satin Chrome finish (626) for corrosion resistance in high-traffic environments
• Includes 13-247 latch and 10-025 strike for a complete lockset installation

Compatibility

Designed as an OEM-spec cylindrical lockset for commercial and institutional doors within the Schlage ND Series platform; accepts large-format interchangeable cores sourced separately to fit an existing keying system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Power down or de-energize any electrified hardware associated with the door before beginning work. The interchangeable core must be sourced and installed separately; do not force or modify the core pocket. Verify door prep dimensions and backset against project specifications before mounting; standard commercial door preps follow ANSI/BHMA A156.2 cylindrical lock standards.
