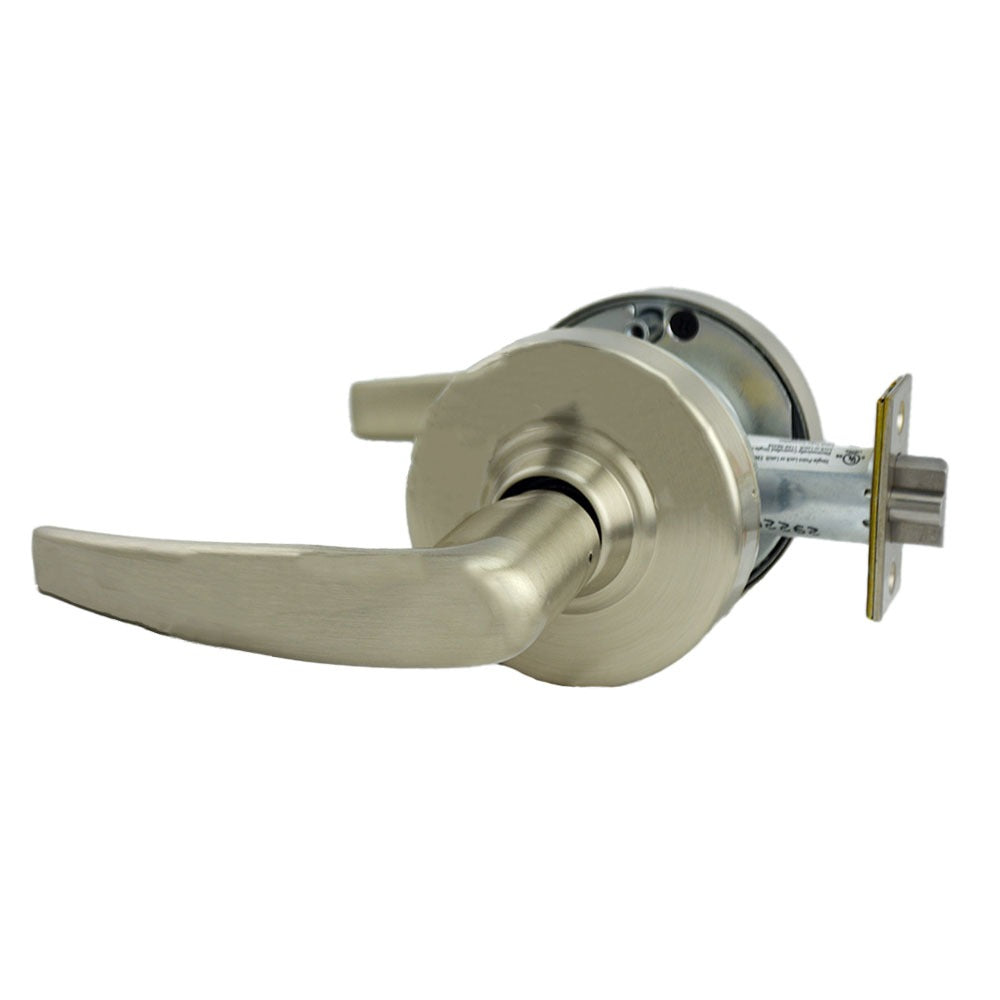

Schlage Commercial ND80LATH619 Nd Series Storeroom Lockset

Product Description

The SCHLAGE COMMERCIAL ND80LATH619 is a storeroom-function lever lockset from the ND Series, designed for commercial and institutional door hardware applications. It ships complete with a 13-247 latch and a 10-025 strike, finished in Satin Nickel (619). The storeroom function keeps the exterior lever locked at all times — entry requires a key — while the interior lever remains free for egress. Less-cylinder configuration means the mortise cylinder is ordered and keyed separately. This lockset is installed by licensed locksmiths or commercial door hardware contractors on hollow-metal and wood doors in light to heavy commercial occupancies.

The ND80LATH619 is suited for storerooms, server rooms, supply closets, and other controlled-access spaces in commercial, institutional, and multi-family buildings. The Athens lever design meets the lever-style requirements common in ADA-compliant door hardware specifications. The included 13-247 latch and 10-025 strike allow for a complete mortise-ready installation without sourcing separate trim hardware. Satin Nickel finish integrates with standard commercial finish schedules.

Key Features

• Storeroom function: exterior lever is always locked, interior lever always free for egress
• Less-cylinder configuration allows independent cylinder specification and keying
• Includes 13-247 latch and 10-025 strike for a complete installation package
• Athens lever design compatible with ADA lever-style hardware specifications
• Satin Nickel (619) finish for standard commercial finish schedule integration
• ND Series heavy-duty construction rated for commercial and institutional use

Compatibility

Designed as an OEM-style replacement or new-installation lockset for commercial and institutional doors requiring ND Series storeroom-function hardware with Athens lever trim.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door is properly prepped to ANSI/BHMA standard backset and cross-bore dimensions before installation. Cylinder must be ordered separately and keyed per the project key schedule. Verify door hand and fire-rating requirements before installing; this lockset may be subject to local building code and NFPA 80 compliance on rated openings.
