Schlage Commercial ND80JSPA613 Storeroom Lockset Oil Rubbed Bronze

Product Description

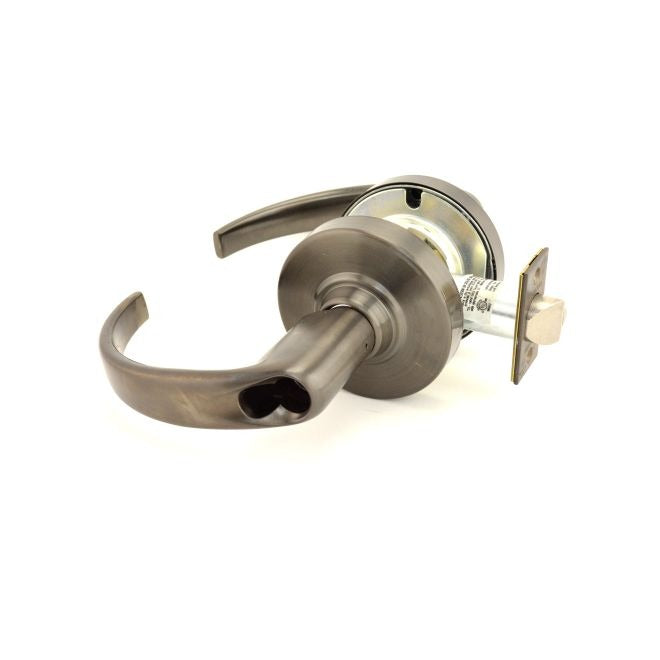

The SCHLAGE COMMERCIAL ND80JSPA613 is a storeroom-function cylindrical lockset in the ND Series, finished in oil rubbed bronze (613). It is configured as Large Format Less Core (LFIC-ready), meaning it ships without a core installed and accepts large format interchangeable cores from compatible keying systems. The Sparta (SPA) lever trim gives it a clean, institutional profile suited to commercial and light-institutional environments. This lockset includes a 13-247 latch and a 10-025 strike, so the hardware needed for a complete door prep is included in the box. Installation is handled by licensed locksmiths or commercial door hardware technicians.

The storeroom function keeps the latch bolt retracted from the outside only by key, while the inside lever is always free-egress — a configuration required in many commercial occupancies for storage rooms, server rooms, and utility spaces. The ND Series cylindrical platform is a widely specified grade for commercial office buildings, healthcare facilities, schools, and institutional buildings where durability and access control flexibility are priorities. The LFIC configuration allows a facility manager to rekey or recore without removing the lockset from the door.

Key Features

• Storeroom function: outside lever locked at all times, inside lever always free for egress
• Large Format Less Core (LFIC) — accepts large format interchangeable cores; ships without core installed
• Sparta lever design for a low-profile institutional appearance
• Oil rubbed bronze finish (613) for corrosion resistance and aesthetic consistency
• Includes 13-247 latch and 10-025 strike for a complete hardware set
• ND Series cylindrical construction built for high-cycle commercial use

Compatibility

Designed as an OEM-style cylindrical lockset replacement or new installation for commercial doors prepped for ND Series hardware with a large format interchangeable core keying system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lockset prep standards. Power down any electrified hardware on the door assembly before beginning work. Verify the door prep — backset, cross bore, and face bore — matches the lockset specifications before installation. The LFIC core must be sourced separately and installed after the lockset is mounted and secured.
