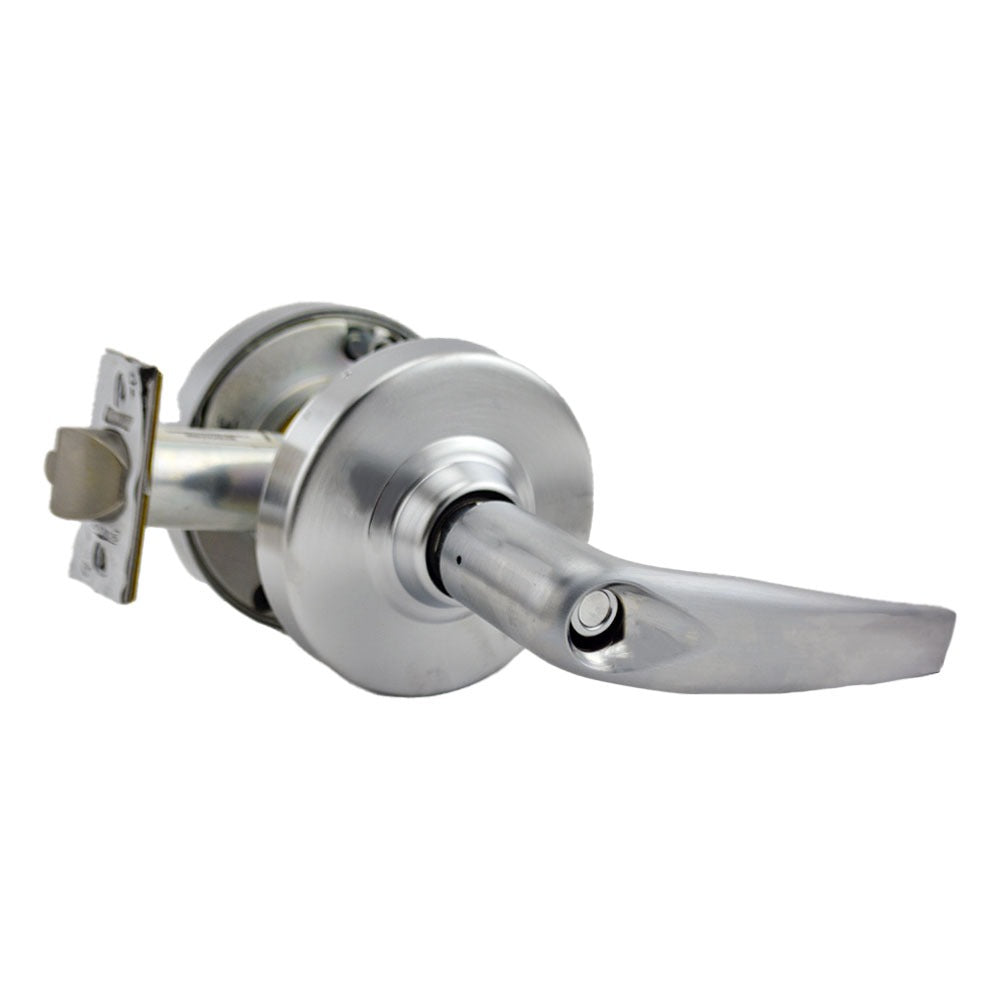

Schlage Commercial ND73LATH626 Nd Series Corridor Lockset

Product Description

The SCHLAGE COMMERCIAL ND73LATH626 is an ND Series corridor lockset configured for less-cylinder applications, meaning it ships without a key cylinder installed. It features the Athens lever trim in a satin chrome (626) finish. The unit includes a 13-247 latch and a 10-025 strike plate. Corridor function locks the outside lever by default; the inside lever always allows free egress. This makes it well suited for hallways, storage rooms, and interior corridors where controlled entry is required. Installation is handled by licensed locksmiths or commercial door hardware technicians.

The ND73LATH626 is intended for commercial and institutional interior door applications where a corridor-function lever lockset is specified. Typical installations include office corridors, school hallways, healthcare facilities, and multi-family common areas. The less-cylinder configuration allows the end user or hardware contractor to core the lock with a site-specific cylinder to match an existing keying system. The satin chrome finish suits most commercial hollow-metal and wood door applications.

Key Features

• Corridor function: outside lever locked by default, inside lever always free for egress
• Less-cylinder configuration allows field installation of a site-matched cylinder
• Athens lever trim in satin chrome (626) finish
• Includes 13-247 latch and 10-025 strike plate
• ND Series commercial-grade lever hardware designed for high-traffic door applications

Compatibility

Designed as an OEM-style commercial corridor lockset for standard commercial door preparations; cylinder compatibility and keying system should be confirmed with the hardware supplier or locksmith prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify the door prep (bore pattern and backset) matches ND Series requirements before installation. Always confirm the building egress and fire-code requirements under applicable local codes before selecting corridor function hardware. Do not install the cylinder or complete the lockset while the door is in an occupied egress path without a temporary means of exit maintained.
