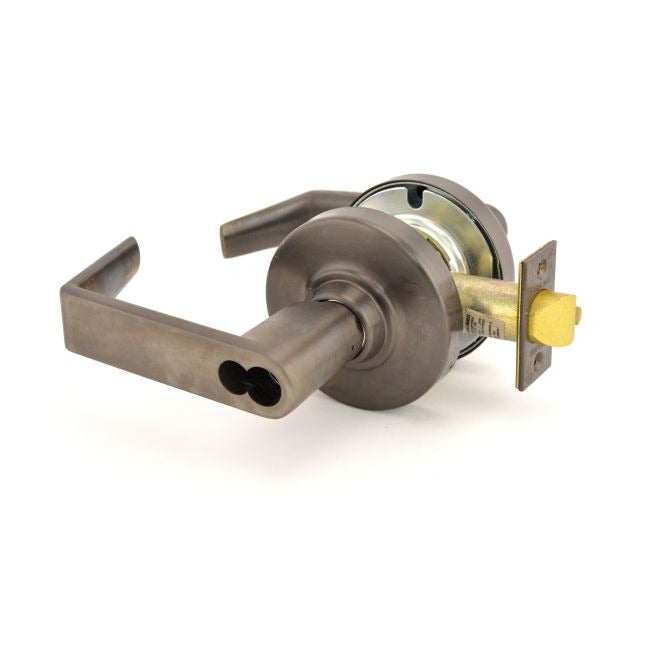

Schlage Commercial ND53JRHO613 Nd Series Entry Lockset

Product Description

The SCHLAGE COMMERCIAL ND53JRHO613 is a heavy-duty entry lockset from the ND Series, designed for commercial and institutional door applications. This unit features the Rhodes lever trim and ships in an Oil Rubbed Bronze (613) finish. It is configured as Large Format Less Core (LFIC-ready), meaning the lock cylinder is not included and must be sourced separately to match the facility keying system. The package includes a 13-247 latch and 10-025 strike, giving installers the primary hardware needed for a complete mortise-prep or cylindrical installation. This lockset is specified by locksmiths, commercial door hardware distributors, and facilities maintenance teams handling access control upgrades or new construction.

The ND53JRHO613 is suited for entry function doors in commercial buildings, multi-family residential properties, schools, healthcare facilities, and institutional environments. The entry function requires a key from the outside to retract the latch, while the inside lever operates freely for egress. Large Format Less Core compatibility allows this lockset to integrate into master-keying systems using interchangeable cores from major LFIC manufacturers. The included latch and strike are matched components intended for use with standard door prep dimensions common in commercial hollow metal and wood door frames.

Key Features

• ND Series heavy-duty commercial cylindrical lockset with entry (keyed outside, free egress inside) function
• Large Format Less Core (LFIC) configuration — cylinder ordered separately for site master-key compatibility
• Rhodes lever design in Oil Rubbed Bronze (613) finish
• Includes 13-247 latch and 10-025 strike for a complete hardware set
• Sold individually (each); packaged in cases of 6
• Overall package dimensions: 9.7 inches long, 8.3 inches wide, 5.1 inches tall

Compatibility

Designed for use within the SCHLAGE COMMERCIAL ND Series cylindrical lockset platform. Large Format Less Core configuration is compatible with LFIC cylinders sourced to match the facility keying system. Consult door prep specifications to confirm backset and cross-bore dimensions before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI cylindrical lock prep standards. Verify door thickness, backset measurement, and cross-bore diameter before mounting. The LFIC core must be installed or replaced using the appropriate control key — never force the core without the correct control key, as this can damage the core retainer. Follow local building and fire code requirements for egress hardware on rated door assemblies.
