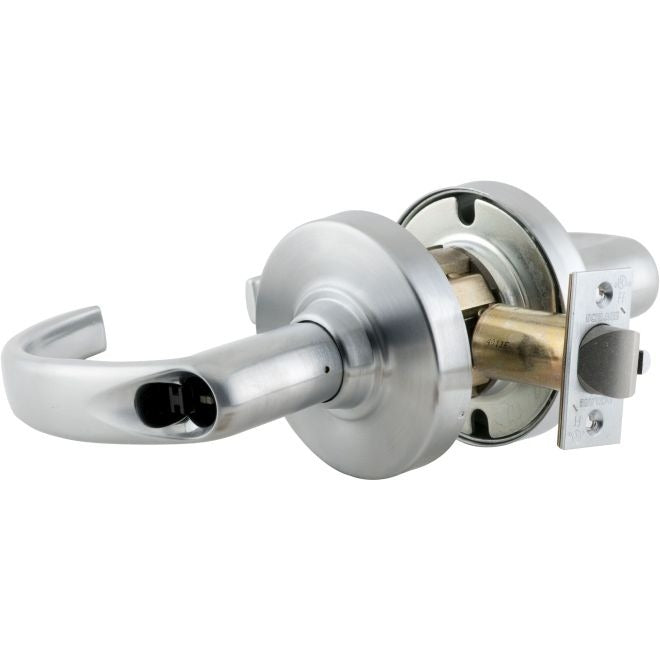

Schlage Commercial ND50JSPA626 Nd Series Entry Lever

Product Description

The SCHLAGE COMMERCIAL ND50JSPA626 is an ND Series cylindrical lever lock configured for entry and office applications, finished in satin chrome (626). Built as a large format less core (LFLC) unit, it ships without a permanent core installed, making it compatible with large format interchangeable core systems used in commercial and institutional key control programs. The Sparta lever trim provides a clean, institutional profile suited to high-traffic doors. Included in the package are a 13-247 latch and a 10-025 strike plate, so the hardware set is complete for a standard cylindrical bore prep.

This lever set is intended for commercial, institutional, and multi-family applications where a keyed entry or office function is required. The less-core configuration is a common specification on new construction and renovation projects managed under a master key or access control program, where the facility manager or locksmith installs the permanent core at final commissioning. It is typically installed by licensed locksmiths or commercial door hardware contractors on hollow metal, wood, or aluminum stile doors prepared to ANSI standard cylindrical bore dimensions.

Key Features

• Large format less core (LFLC) design accepts large format interchangeable cores for flexible key control
• Entry and office function supports keyed outside, always-free inside lever operation
• Sparta lever trim offers a low-profile, institutional aesthetic suitable for commercial corridors
• Satin chrome (626) finish provides corrosion resistance for interior commercial environments
• Includes 13-247 latch and 10-025 strike for a complete hardware installation
• Sold individually, with a case quantity of 6 units available for larger project orders

Compatibility

Designed as an OEM-style cylindrical lever lock for commercial and institutional doors prepared to standard ANSI cylindrical bore dimensions and compatible with large format interchangeable core systems.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify the door prep matches the required cylindrical bore and cross-bore dimensions before installation. The permanent large format core must be ordered and installed separately; do not operate the lock in a high-security application without the core seated. Consult applicable building and fire codes, including IBC and local AHJ requirements, for proper function selection on rated egress doors.
