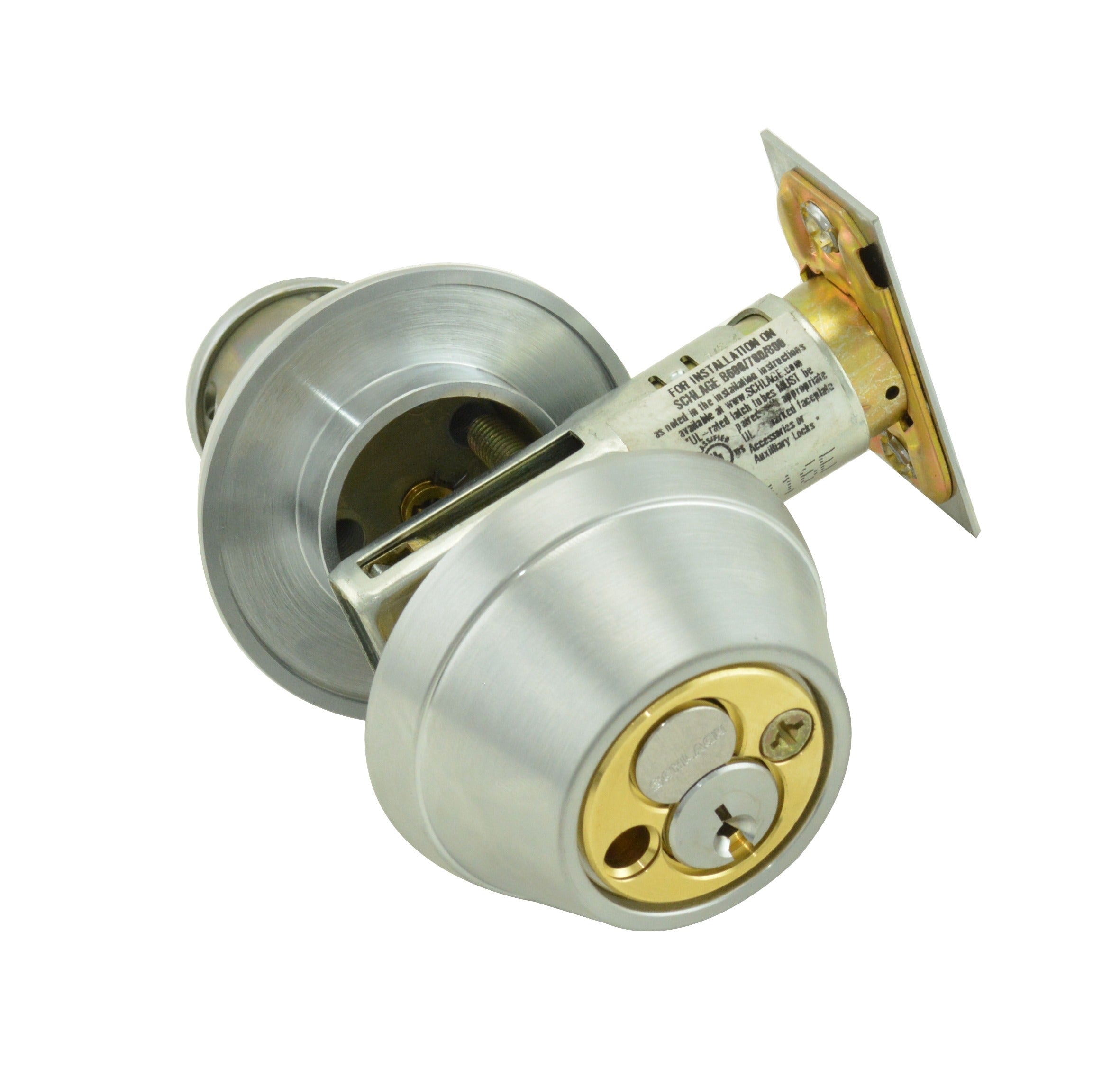

Schlage Commercial B662R626 Grade 1 Double Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B662R626 is a Grade 1 double cylinder deadbolt designed for commercial and institutional door applications. It features a Large Format Interchangeable Core (LFIC) with a C Keyway, shipped 1-bitted for field keying. The deadbolt includes a 12296 latch and 10094 strike plate and comes in a Satin Chrome finish. At 3.3 pounds, it is a heavy-duty mechanical lock intended for high-traffic commercial doors. Licensed locksmiths, commercial door hardware installers, and facilities maintenance personnel are the primary installers of this hardware.

This deadbolt is suited for commercial buildings, institutional facilities, multi-family properties, and other applications where Grade 1 security and a master key system are required. The LFIC design allows cores to be swapped without removing the lock from the door, making it well suited for large facilities that manage keying changes frequently. The 1-bitted configuration means the core is keyed to a single cut at the factory and must be re-keyed or re-cored on site to fit the facility's key system.

Key Features

• Grade 1 commercial-grade deadbolt construction for high-security applications
• Large Format Interchangeable Core accepts LFIC cylinders for rapid re-keying without lock removal
• C Keyway cylinder shipped 1-bitted for field configuration
• Includes 12296 latch and 10094 strike plate for complete installation
• Satin Chrome (626) finish resists corrosion and wear in commercial environments
• Double cylinder design requires a key on both interior and exterior sides

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial and institutional doors requiring a Grade 1 double cylinder deadbolt with Large Format Interchangeable Core hardware.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC systems. Verify door prep dimensions and backset before installation. Local building and fire codes may restrict or prohibit double cylinder deadbolts on certain egress doors — confirm compliance with applicable codes before installing. Power down any access control or electrified hardware integrated with the door before beginning work.
