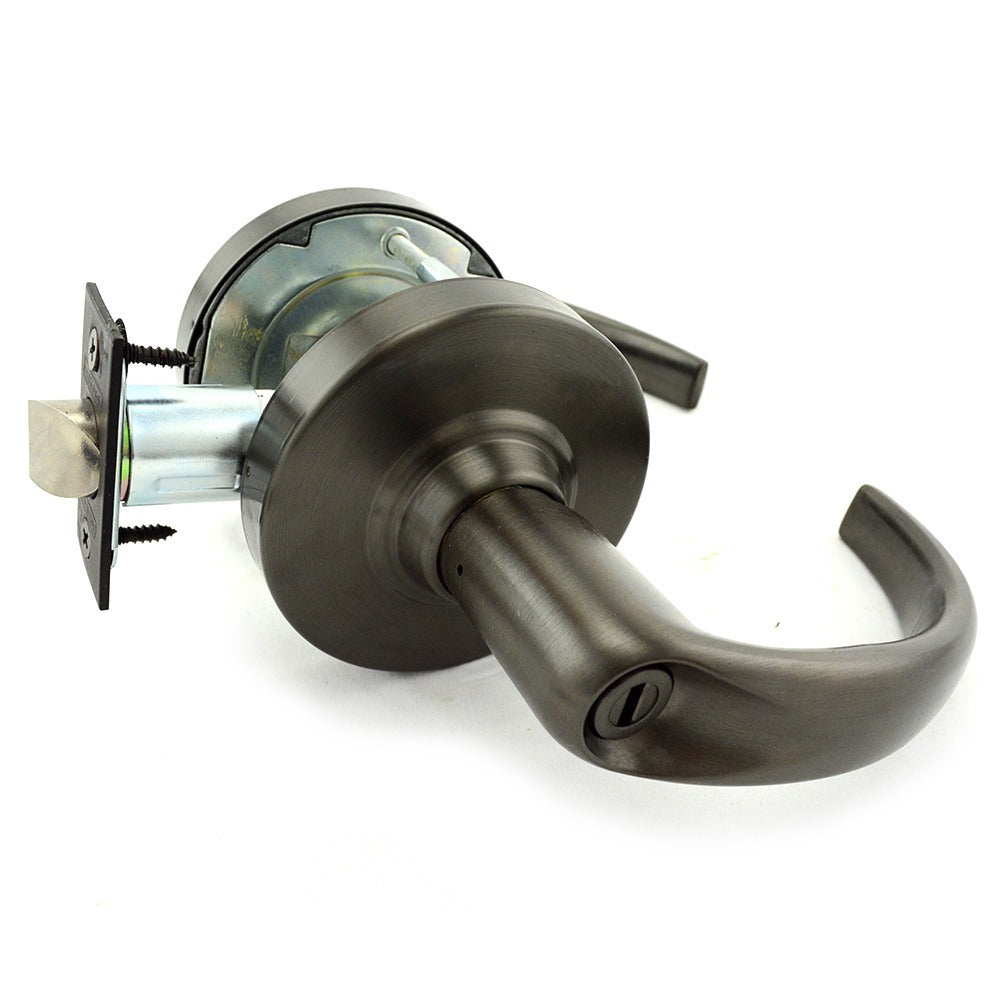

Schlage Commercial ALX40SPA613 Grade 2 Privacy Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX40SPA613 is a Grade 2 privacy lever lock from the ALX Series, featuring the Sparta lever design in an Oil Rubbed Bronze finish. Built for interior privacy applications, this lock uses a spring latch mechanism with a 2.75-inch throw, supplied with an ANSI-standard strike plate. It is suited for installation on interior doors in residential, multi-family, and light commercial settings where a privacy function is required. Licensed locksmiths, commercial door hardware installers, and skilled maintenance technicians are the typical installers of this hardware.

The ALX40SPA613 is intended for interior privacy doors such as bathrooms, bedrooms, and similar spaces where one-side locking with emergency egress access is required. The Sparta lever style provides a modern, streamlined profile. The Oil Rubbed Bronze finish coordinates with matching door hardware in the same finish family. This unit ships as a single assembly including the 2.75-inch spring latch and ANSI strike, making it a ready-to-install package without requiring separate hardware sourcing.

Key Features

• Grade 2 ANSI/BHMA rating suitable for residential and light commercial interior doors
• Privacy function allows interior locking with emergency access from the exterior side
• Sparta lever design in Oil Rubbed Bronze finish
• Includes 2.75-inch spring latch (part 47267038) and ANSI strike plate (part 47267101)
• ALX Series construction designed for durability in high-use interior environments

Compatibility

Designed as an OEM-style privacy lever lockset for interior door applications in residential, multi-family, and light commercial buildings. Compatible with standard door prep for ANSI-standard cylindrical locksets.

Installation Notes

Installation is performed by licensed locksmiths or qualified door hardware technicians. Verify door thickness and backset before installation to confirm fitment with the included 2.75-inch spring latch. Follow the door manufacturer's prep specifications and applicable local building codes for hardware installation. Do not force the latch or lever assembly during installation, as this may damage the mechanism.
