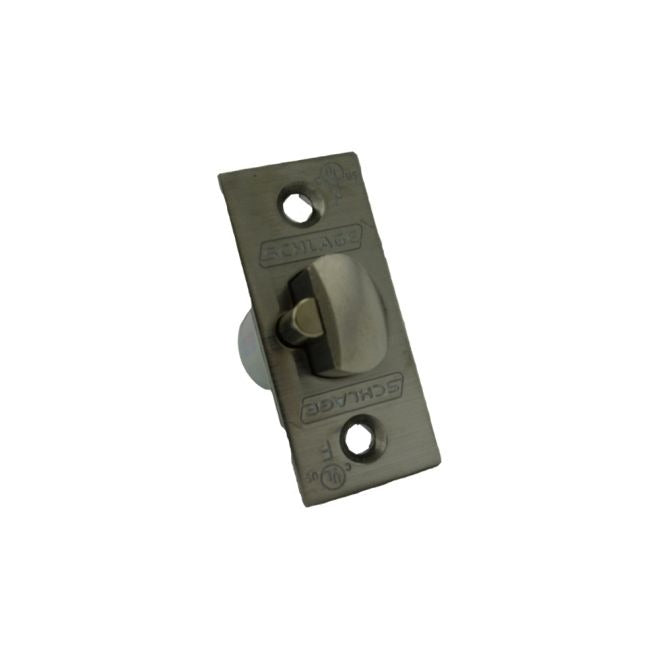

Schlage Commercial 47273624626 Non-restoring Deadlatch

Product Description

The SCHLAGE COMMERCIAL 47273624626 is a non-restoring deadlatch designed for commercial and institutional door hardware applications. It features a 2-3/8 inch backset and a 1 inch by 2-1/4 inch square corner faceplate finished in satin chrome. The non-restoring latch bolt stays retracted once manually pressed, holding position until the door is cycled again. This latch is installed by commercial locksmiths and door hardware technicians as part of a cylindrical or mortise lock assembly in light to heavy commercial door frames.

This deadlatch is suited for commercial buildings, institutional facilities, and multi-family residential projects where a non-restoring latch function is required. The square corner faceplate fits standard square-edge door edge preparations common in steel and solid wood commercial doors. The satin chrome finish coordinates with AL-series lock trim and other commercial-grade hardware in matching finishes.

Key Features

• Non-restoring latch function holds retracted position after manual depression
• 2-3/8 inch backset fits standard commercial door preparations
• 1 inch by 2-1/4 inch square corner faceplate for steel or solid wood door edges
• Satin chrome finish for corrosion resistance and trim compatibility
• Sold individually as a single unit replacement component

Compatibility

Designed as an OEM-style replacement deadlatch for commercial cylindrical lock assemblies requiring a 2-3/8 inch backset and a 1 inch by 2-1/4 inch square corner faceplate.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician. Disengage all electrical access control power and verify the door is de-latched before removing the existing latch assembly. Confirm the door edge bore and backset measurement match the 2-3/8 inch specification before installation. Follow applicable building and fire codes when servicing latches on rated door assemblies.
