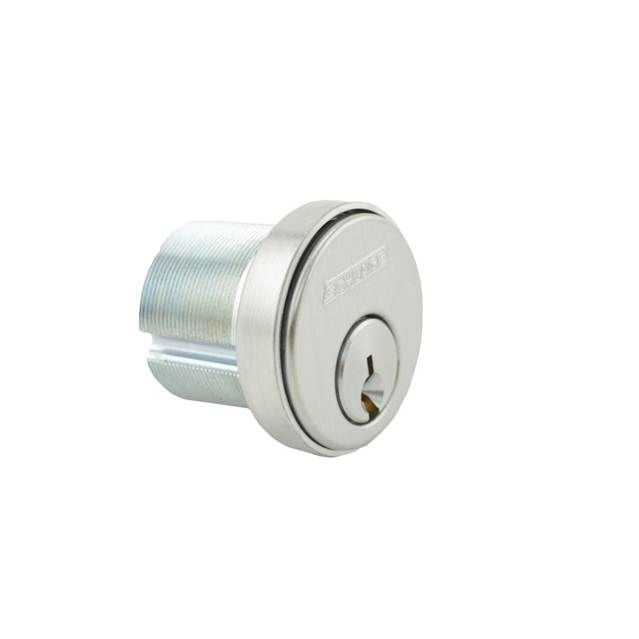

Schlage Commercial 30001C145626118 Mortise Cylinder Satin Chrome

Product Description

The SCHLAGE COMMERCIAL 30001C145626118 is a 1-1/8 inch mortise cylinder built for commercial and institutional door hardware applications. It features the C145 keyway, ships 0-bitted for field keying, and includes a compression ring, spring, and L cam as part of the assembly. The satin chrome finish provides a clean, professional appearance suited to high-traffic commercial environments. This cylinder is installed by licensed locksmiths and commercial door hardware technicians as part of a mortise lockset assembly. The compact form factor and included hardware make it a ready-to-install replacement or new-construction component.

This mortise cylinder is intended for commercial, institutional, and multi-family building applications where mortise-style locksets are specified. It is suited for interior and exterior doors requiring a standardized keyway profile. The C145 keyway is a widely used commercial keyway that supports master keying and restricted key systems. The 0-bitted configuration allows the installing technician or locksmith to cut keys to the required bitting specification on site or through a key shop.

Key Features

• 1-1/8 inch cylinder length for standard mortise lockset applications
• C145 keyway supports master keying and restricted key system integration
• 0-bitted from the factory — ready for field keying to specification
• Includes compression ring, spring, and L cam for complete installation
• Satin chrome finish for a consistent, professional appearance
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets requiring a 1-1/8 inch cylinder with C145 keyway and L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Power down any access control or electrified hardware integrated with the lockset before beginning work. Verify cam selection and cylinder length against the host mortise lockset body prior to installation. Follow applicable local building codes and ANSI hardware standards for commercial door hardware.
