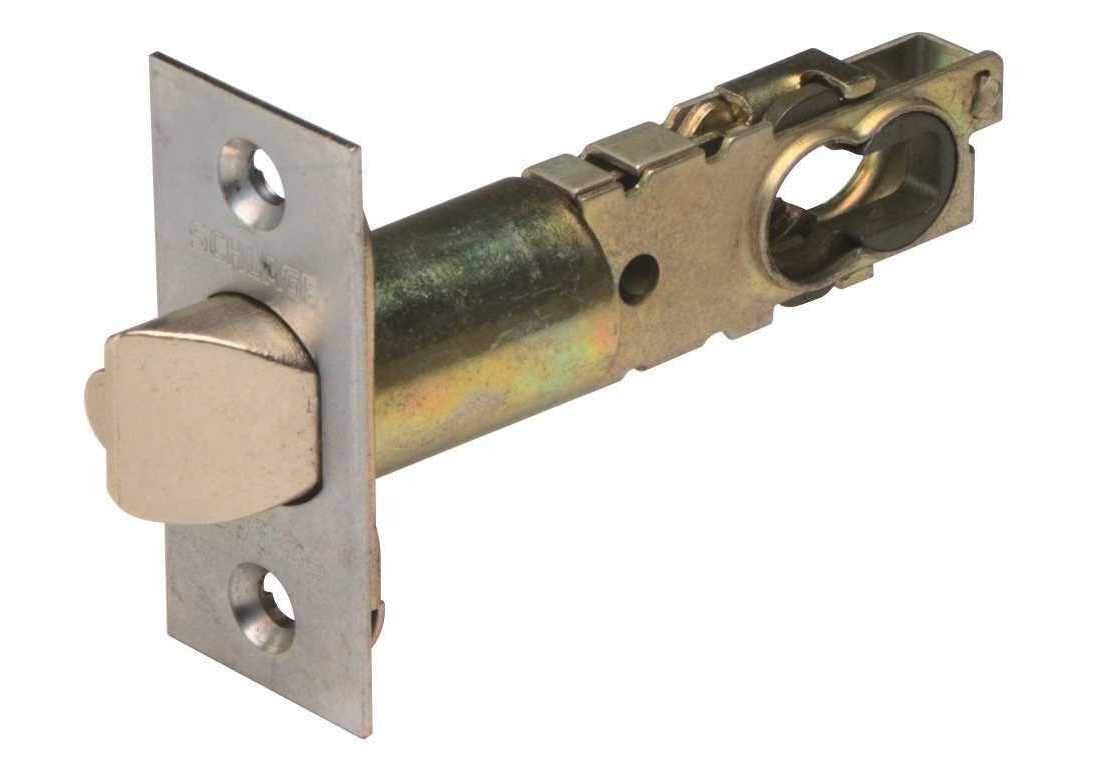

Schlage 16-207-626 Square Corner Dead Latch F Series

Product Description

The SCHLAGE 16-207-626 is a universal square corner dead latch designed as a direct replacement or upgrade component for Schlage F Series locksets. The dead latch bolt engages the strike to resist unauthorized entry, while the square corner faceplate provides a clean, flush fit in standard door preps. The faceplate measures 1 inch by 2-1/4 inches, and the latch diameter is 7/8 inches. It accommodates two common backset dimensions, 2-3/8 inches and 2-3/4 inches, making it adaptable to a wide range of residential door preparations. Licensed locksmiths and general contractors typically handle installation of this component.

This dead latch is intended for residential lockset applications where an F Series Schlage knob or lever lock is installed. It ships with an A501-878 adaptor that allows use with a 1-1/8 inch faceplate, expanding compatibility with door preps that require the narrower faceplate width. The dual-backset design reduces the need to stock multiple latch assemblies on the job, making it a practical choice for service calls and new installs alike.

Key Features

• Square corner faceplate measuring 1 inch by 2-1/4 inches for standard door prep fitment
• Accepts 2-3/8 inch and 2-3/4 inch backset configurations
• Latch diameter of 7/8 inches for proper bore fit
• Includes A501-878 adaptor for 1-1/8 inch faceplate installations
• Lightweight at 0.22 pounds for easy handling and install

Compatibility

Compatible with Schlage F51, F54, F80, FA51, FA54, and FA80 locksets.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified contractor. Before servicing any door lockset, ensure the door is secure and will not swing freely during work. Follow the door manufacturer specifications for bore and cross-bore dimensions before seating the latch. Verify backset measurement at the existing door prep before selecting the 2-3/8 inch or 2-3/4 inch orientation.
