Schlage 09-997 Service Kit Back Housing for 1-3/4 inches

Product Description

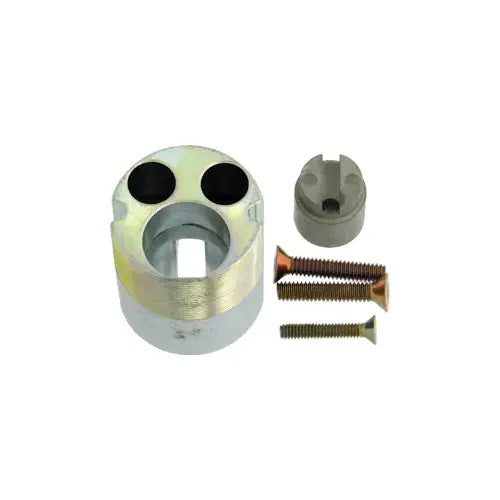

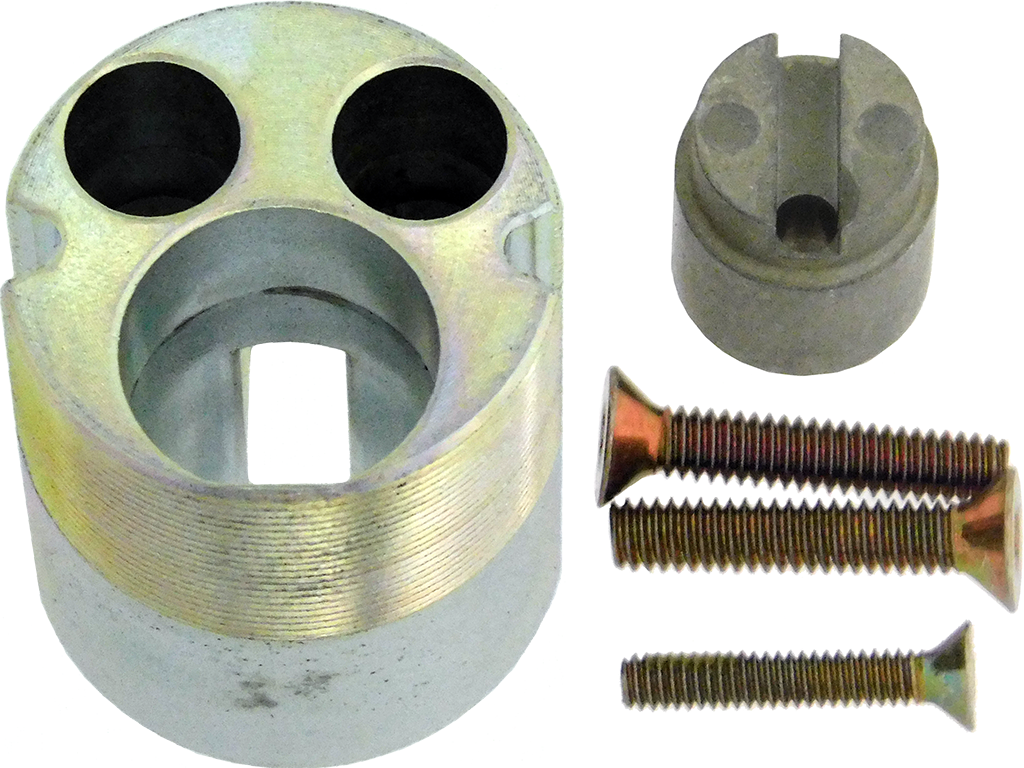

The SCHLAGE 09-997 service kit converts any Schlage modular mortise cylinder into 1-3/4" length. Contains one B520-727 back housing, two B520-693 housing screws, one B590-299 plug extension, and one B520-692 cam screw. Works with SCH-L583-447, SCH-L583-475 and SCH-L583-477 cams.

• Certified Schlage Parts
• Made With Strong Materials
• Many Parts Are Finish Specific

Product Highlights

This service kit includes the necessary components to convert a Schlage modular mortise cylinder to 1-3/4" length.

Product Information

Standard Information

• Brand: SCHLAGE
• Manufacturer Part Number: 09-997

Technical Specifications

• Series: L Series
• Style: Service Kit Back Housing
• Use For: 1 3/4"
• Manufacturer Parent: Allegion
• Function: Cylinder Service Kit
• Sub-Series: 09-997
• ADA Compliant: No
• For Cylinder Type: Mortise
• Function Family: Part/Component
• Product Type: Cylinder Part/Accessory
• Features: 1-3/4" Back Housing
• Alternate Part Number-1: 159196
• JMAC_ID: 202412044
• MPN: 09-997
• df_manual_boost: 1.00
• Brand: Schlage
• SKU: 09-997
• U/M - Units: EA
• Proprietary: No
• Buildable: No
