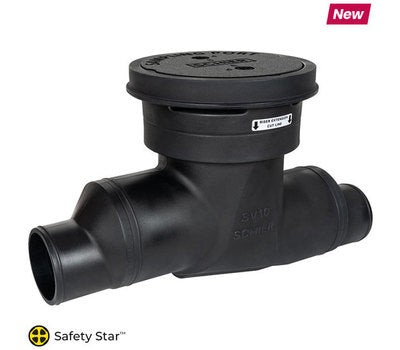

SCHIER SV10 Sewer Viewer 24-1/4 x 11-5/8 in. Polyethylene Wastewater Sampling Port

Product Description

The SCHIER SV10 is a polyethylene sampling port designed for access to wastewater in commercial drain lines. This port provides eight inches of visual and sampling access to waste streams in four and six inch pipes commonly found in settings like schools, restaurants, and manufacturing plants. It is suitable for both indoor and outdoor use, even in pedestrian and H-20 traffic areas.

• Effective for wastewater sampling and monitoring.
• Compatible with four and six inch standard flexible couplings.
• Ideal for deep burial applications with a maximum depth of ninety-seven inches.

Product Highlights

This product utilizes the FCR10 riser system, allowing for a secure installation buried beneath the surface. The sump shape allows for high-quality horizontal grab samples, which is crucial for analysis. The gasketed HDPE cover is rated for H-20 loads and employs two stainless steel cam locks to ensure durability and security.

Product Information

Standard Information

• Brand: SCHIER
• MPN: SV10

Technical Specifications

• Weight: 9 lb.
• For Use With: 4 and 6 in Plain End Standard Flexible Couplings
• Catalog Number: SV10
• Dimensions: 24-1/4 x 11-5/8 in.
• Construction Material: Polyethylene
• Installation Depth: Maximum of 97 in.
