Schier Products 8010-012-01 Fast Pitch Riser 5 in

Product Description

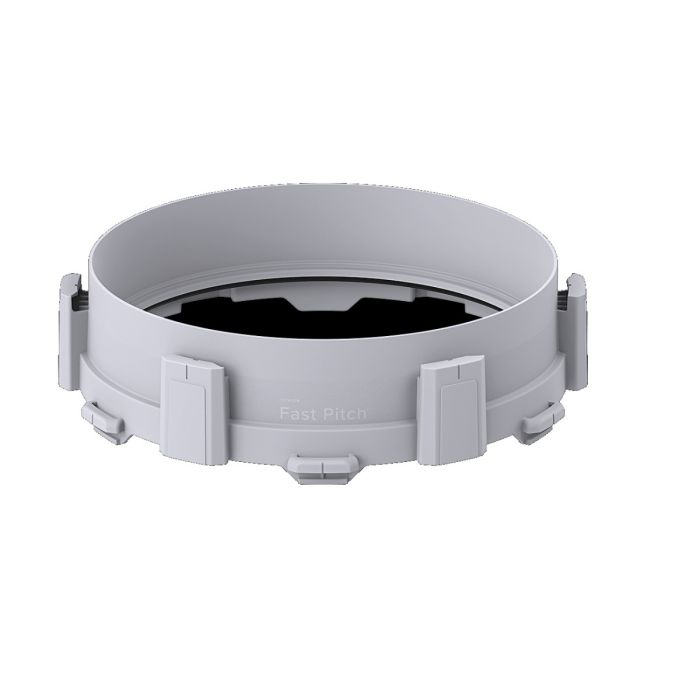

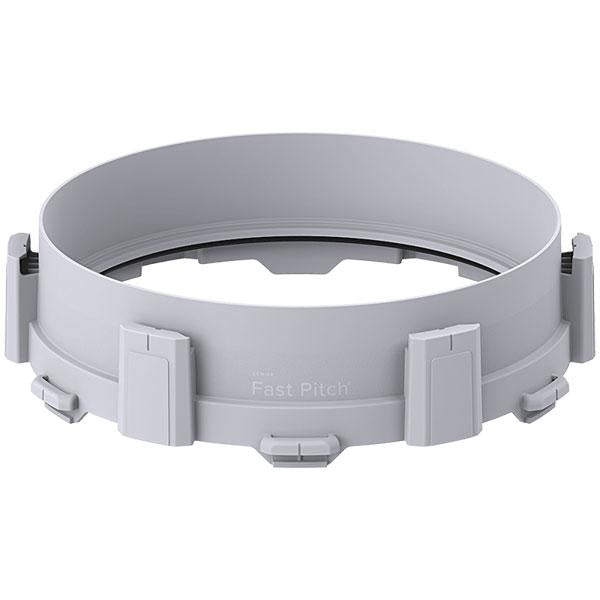

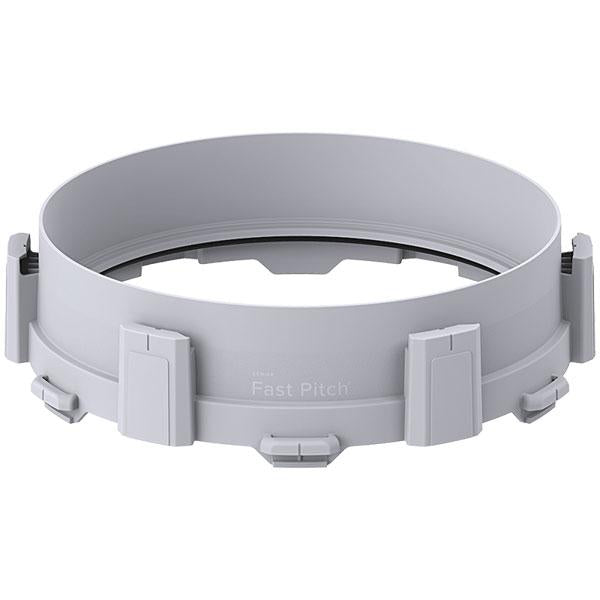

The SCHIER PRODUCTS 8010-012-01 is a 5-inch tall Fast Pitch Riser designed for buried grease interceptors, solids interceptors, and sampling ports that require grade adjustment in the field. Built from lightweight, durable polyethylene, this riser installs quickly using an intuitive twist-and-lock design that eliminates the need for custom-fabricated risers. It is compatible with interceptor covers measuring 24 inches in diameter. The field-cut design allows installers to trim the riser body on-site to achieve precise finished grade elevation, reducing project delays and keeping installation schedules on track.

This riser is used in commercial and light-industrial plumbing applications where buried grease interceptors or solids interceptors must be brought to grade after installation. Typical scenarios include new construction and retrofit jobs where final grade elevation is not determined until late in the project schedule. Plumbing contractors install this accessory directly over the interceptor body, stacking multiple units as needed to reach the correct height. Up to 17 FP24 risers can be stacked in a single assembly. Each riser is sold individually, allowing installers to purchase only the quantity required for each job.

Key Features

• Field-cuttable polyethylene body allows on-site height adjustment without special equipment
• Twist-and-lock connection design simplifies stacking and ensures alignment
• Heavy-duty gasket provides a tight seal between riser sections
• Stack up to 17 FP24 units to reach required grade elevation
• Fits interceptor covers with 24-inch diameter openings
• Sold individually for flexible quantity ordering by job

Compatibility

Designed for use with buried grease interceptors, solids interceptors, and sampling ports fitted with 24-inch covers. Compatible with the FP24 riser system; up to 17 risers may be stacked per assembly.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing code and applicable IPC requirements. Confirm the interceptor is depressurized and that all service flow is stopped before beginning riser work. Trim the riser body to the required height using standard cutting tools before securing with the twist-and-lock connection. Verify gasket seating at each joint before backfilling to ensure a watertight assembly.

Technical Specifications

• Height: 5 inches
• Cover Diameter Compatibility: 24 inches
• Material: Polyethylene
• Maximum Stack Height: 17 risers
• Connection Type: Twist and lock
• Seal Type: Heavy-duty gasket
• Sold As: Individual unit

Standard Information

• Brand: SCHIER PRODUCTS
• Manufacturer Part Number: 8010-012-01
