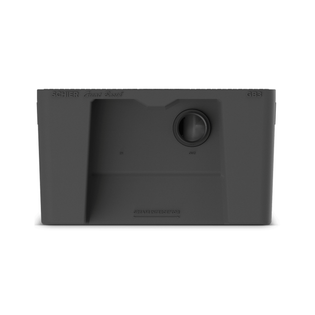

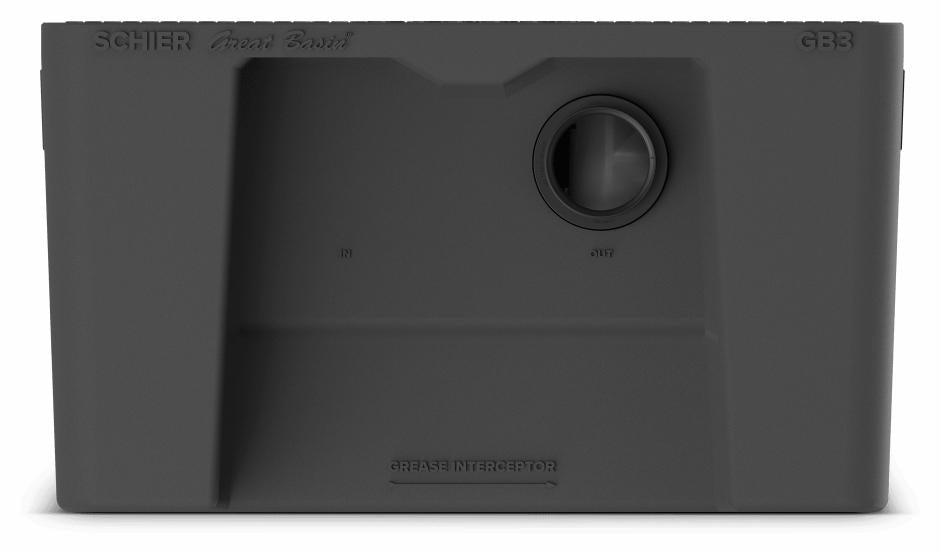

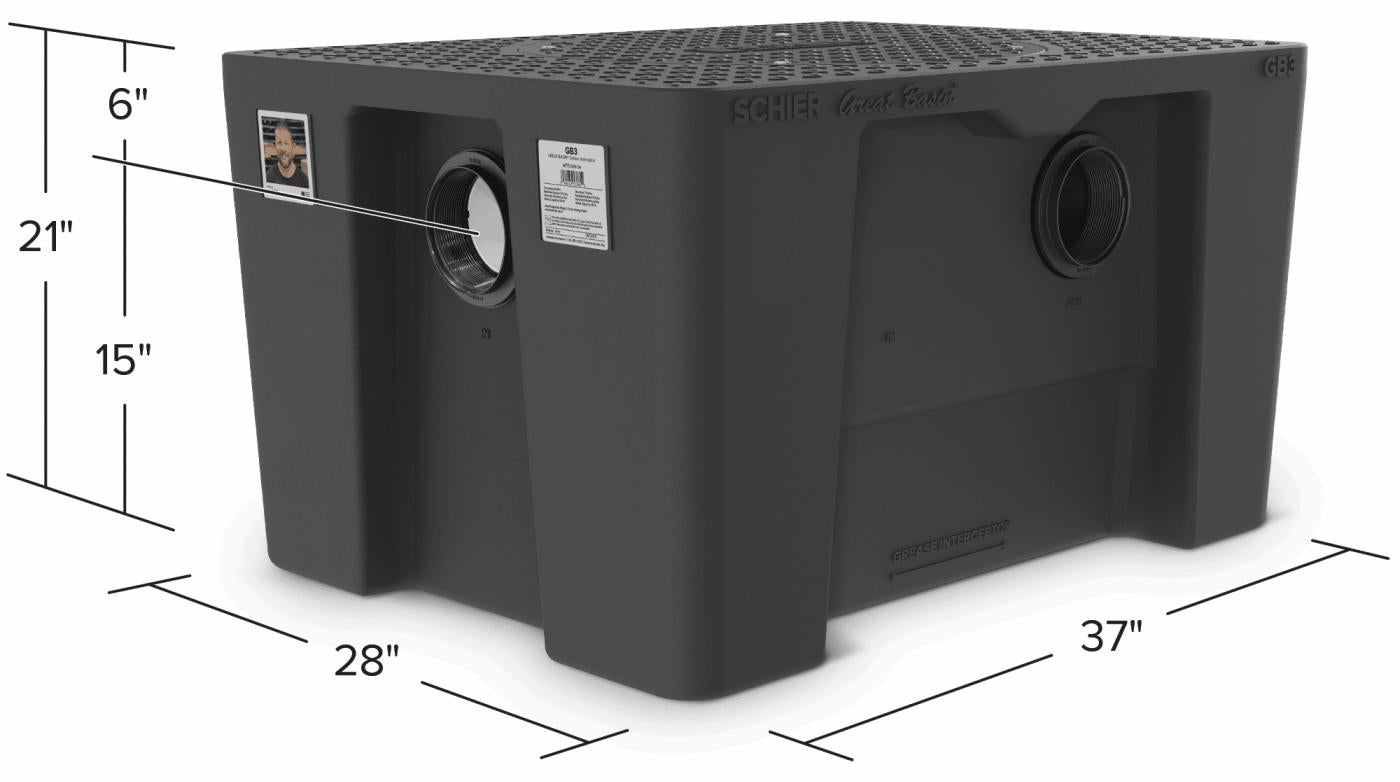

Schier 4070-001-05 GB-3 Grease Interceptor 50 GPM (40 Gal. Liquid Capacity) REPLACEMENT 407-001-04

Product Description

The Schier GB-3, 4070-001-05 Great Basin™ grease interceptor is made in the USA of seamless, molded polyethylene and guaranteed for life. Type D certified for hydromechanical performance to ASME A112.14.3 and CSA B481.1, it features a 50 GPM flow rate without external flow control. Designed for indoor, on-floor, below-grade, or under-sink installations.

• Lifetime Guaranteed and Made in the USA
• Type D Certified Performance - No Flow Control Required for 50 GPM
• 4" FPT Inlet/Outlet Connection with 4" Plain End Adapters

Product Highlights

This grease interceptor has a 50 GPM flow rate, 4" FPT inlet/outlet, and is suitable for gravity drainage applications. Features integral air relief, anti-siphon, and sampling access.

Product Information

Standard Information

• Brand: SCHIER PRODUCTS
• Manufacturer Part Number: 4070-001-05
• Country of Origin: USA

Technical Specifications

• Brand: Schier
• Model: GB-3
• Part Number: 4070-001-05
• Flow Rate: 50 GPM
• Grease Capacity: 268.1 lbs. (36.7 gal.)
• Liquid Capacity: 40 gal.
• Solids Capacity: 1.9 gal.
• Connections: 4" FPT Inlet/Outlet w/ 4" Plain End Adapters
• Unit Weight: 69 lbs. (Empty)
• Max Operating Temp: 150°F Continuous
• Cover: 21-1/2" Bolted Composite Cover
• Cover Load Capacity: 450 lb. Load Capacity
• Connection Type: FPT
• Material: Polyethylene
• Nominal Size: 4 in
• Type: Grease Interceptor
