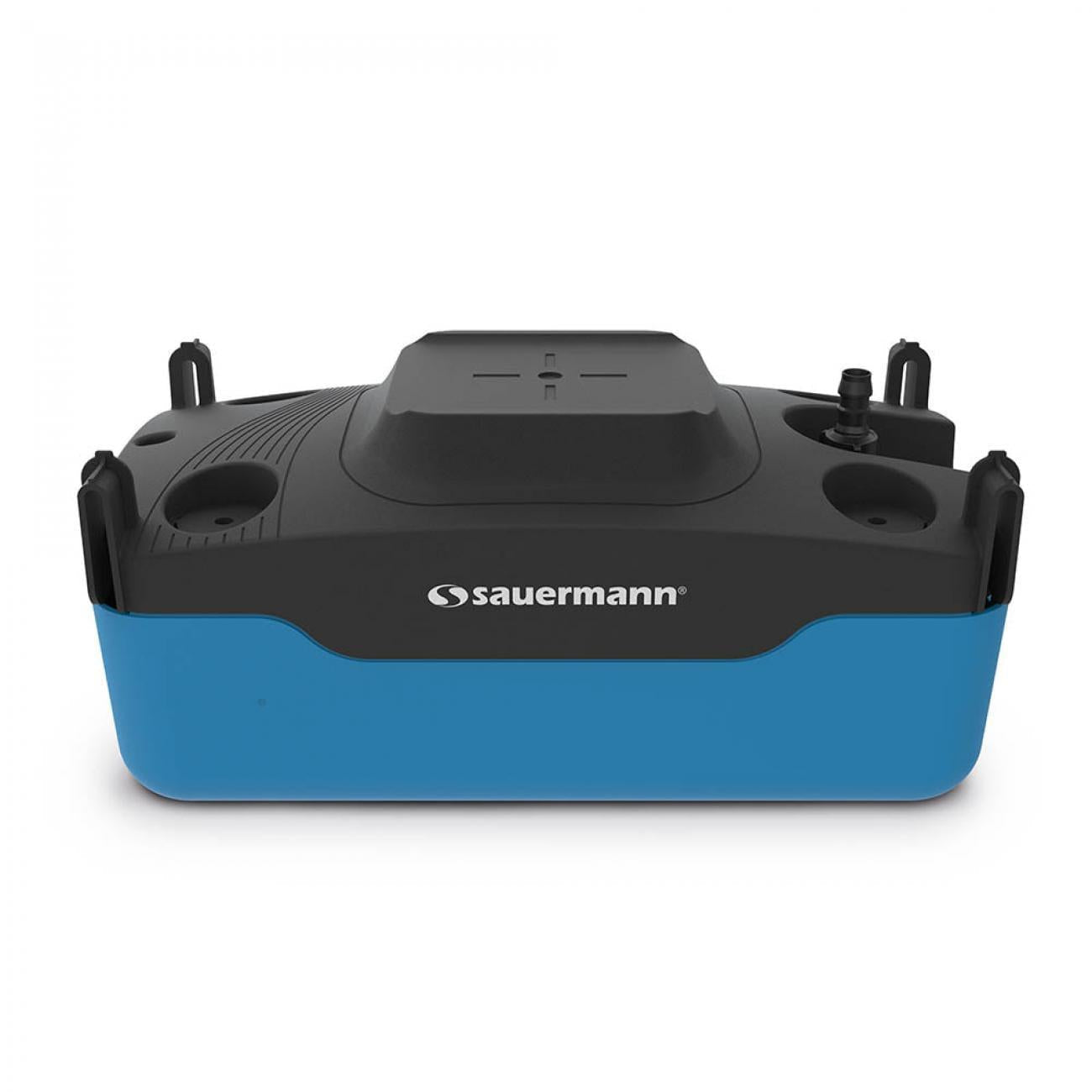

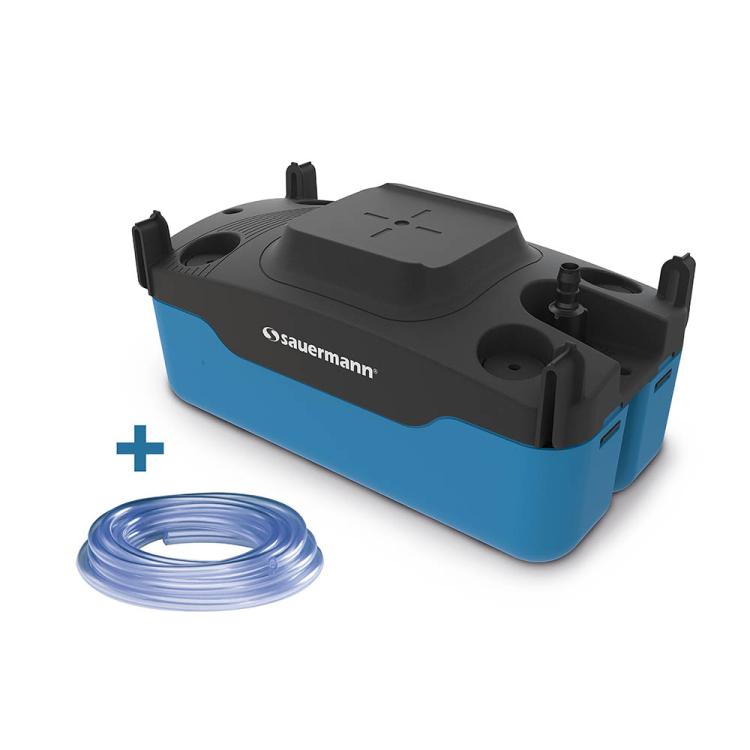

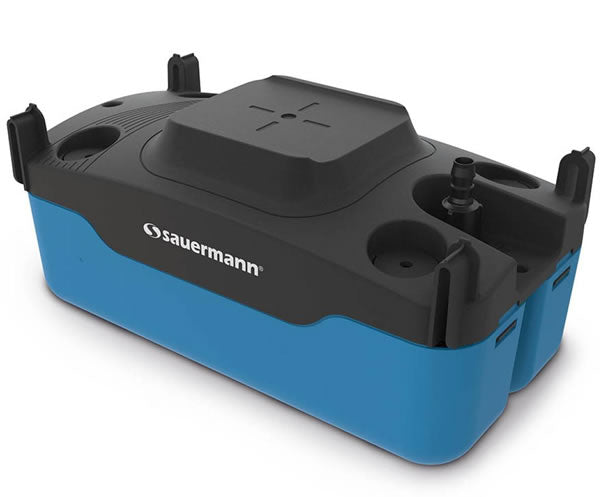

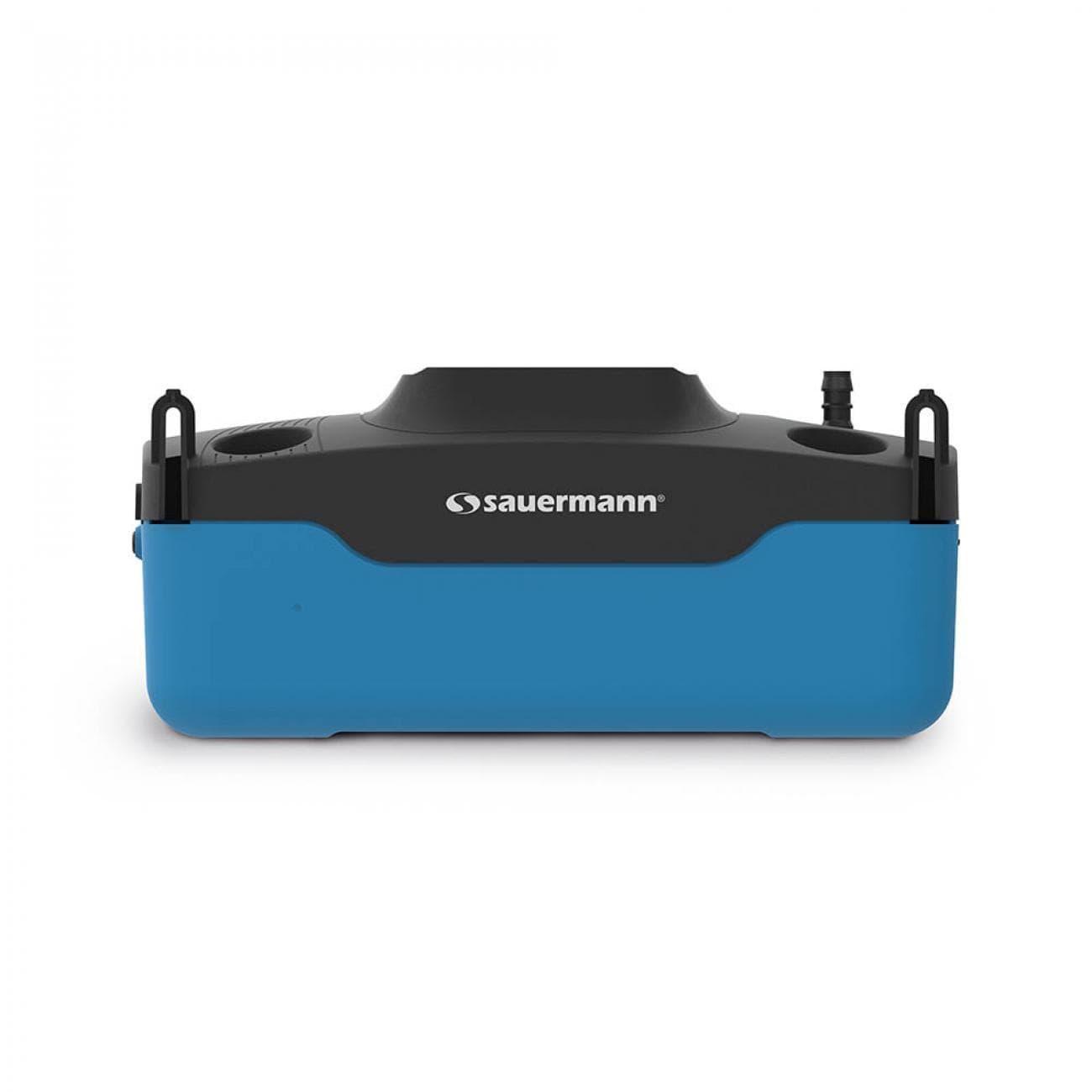

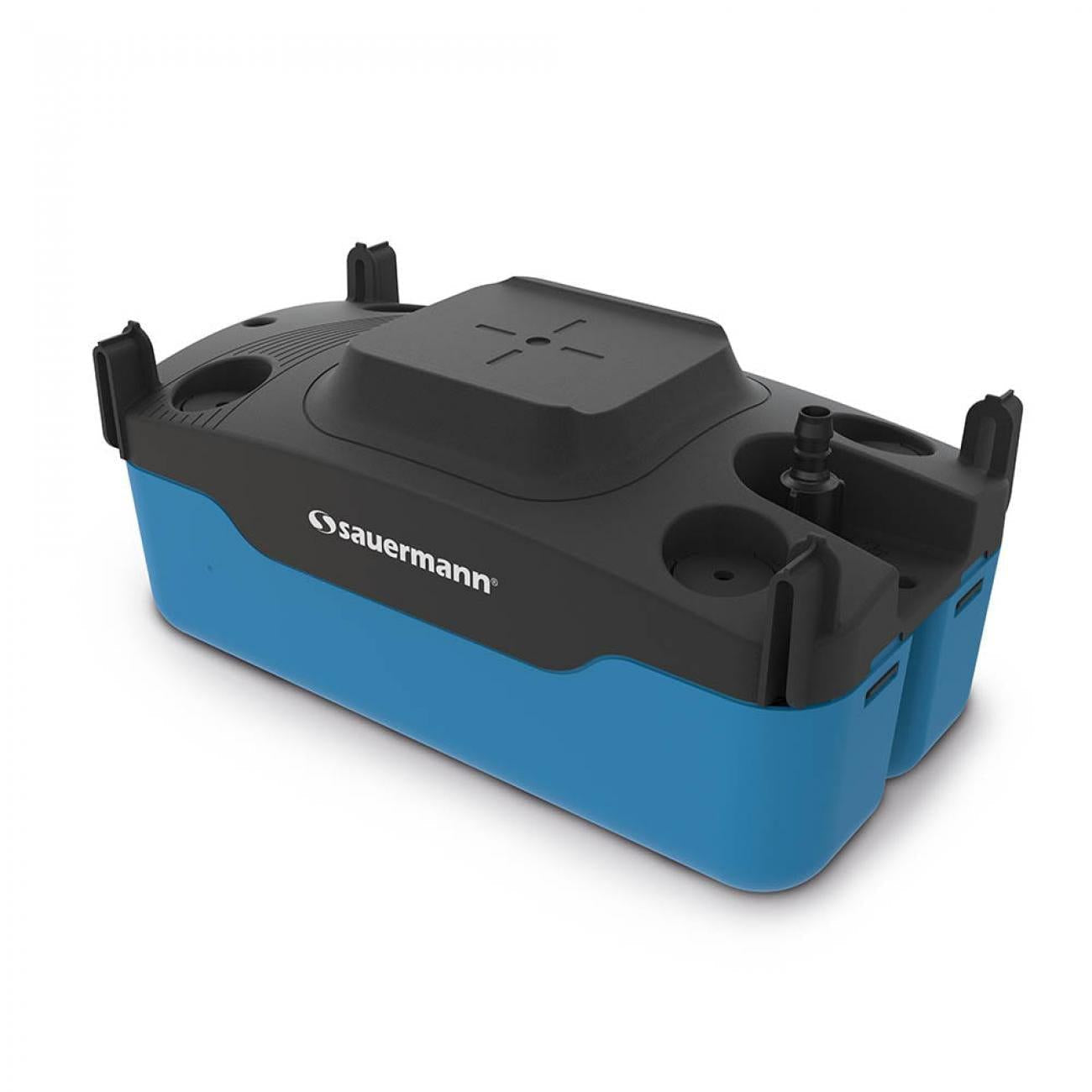

Sauermann SI-83 Automatic Condensate Pump 145 GPH 1/2 Gallon Capacity

Product Description

The Sauermann SI-83 automatic condensate pump has a 145 GPH flow rate and a 1/2 gallon capacity. Sauermann engineers redesigned the tank pump from the inside-out, making the Si-83 more compact than any other tank pump in its class. It is constructed from rugged materials and components for exceptional durability and reliability.

• Exceptional Durability and Reliability
• Quick & Easy Installation in any place
• Quick & Easy Maintenance

Product Highlights

The Si-83 tank pump from Sauermann is perfect for residential A/C and heating units. It comes with a customized Smartphone App that makes installation both simple and intuitive.

Product Information

Standard Information

• Brand: SAUERMANN
• Manufacturer Part Number: SI-83

Technical Specifications

• Brand Name: Sauermann
• Type: Condensate Pump
• Flow Rate: 145 GPH
• Voltage: 230V
• Hertz: 60
• Shut-off head: 22'
• Max discharge head: 21 ft
• Mains supply: 230 V
• Operation conditions: 7%: 16s ON - 212s OFF
• Max condensate temperature: 55 00b0C
• Max condensate acidity: pH > 2.5 (Gas condensing boilers)
• Tank volume: 0.5 ft 00b3
• Safety switch: NC 5A
• Pump Dimensions Length: 11 5/16 inches
• Pump Dimensions Width: 5 3/4 inches
• Pump Dimensions Height: 5 5/16 inches
• SOUND LEVELS at 3,3ft or 1m in application (dBA): 22645 dBA
• Storage temperature Min: 36.00 00b0F
• Storage temperature Max: 122.00 00b0F
• Operating temperature Min: 36.00 00b0F
• Operating temperature Max: 122.00 00b0F
• Safety standards: UL/CSA by Intertek
• ROHS and WEEE directives: Compliant
• Pump Length: 11 5/16 inches
• Pump Width: 5 3/4 inches
• Pump Height: 5 15/16 inches
• Max Head: 21 ft (15 gph flow rate)
• Voltage (SI83ULx2UN12): 120 V~ 60 Hz - 84 W 2013 1.7 A
• Voltage (SI83ULx2UN23): 230 V~ 60 Hz 2013 1.25 A
• Tank: 1/2 gallon tank
• Sound Level: < 45 dBA at 1m
• Max flow rate: 700 l/h
• Max pressure: 5.7 m
• Protection: IP44
