Sauermann OP20UL01UN23 Omega Pack Kit with Si-20 230V

Product Description

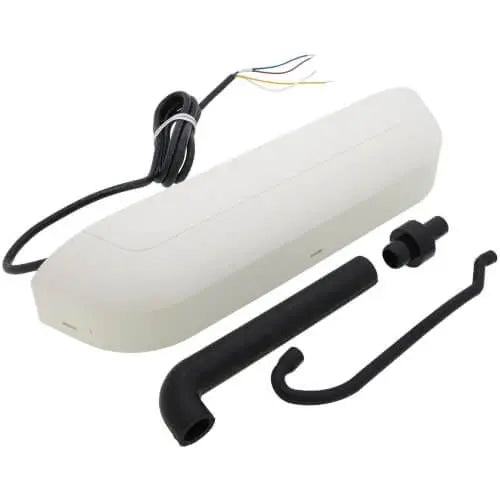

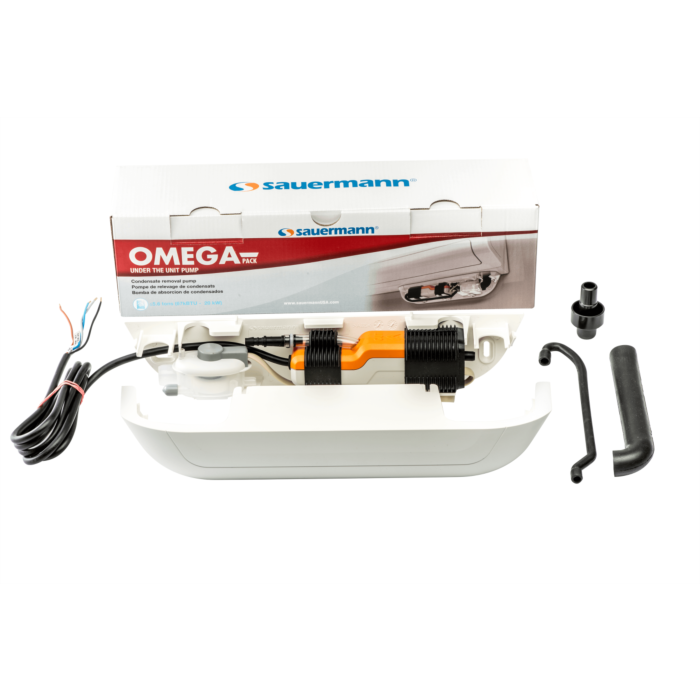

The Sauermann OP20UL01UN23 Omega Pack Kit includes an Si-20 (5gph) 230V pump. Its compact, sleek design is ideal for under-unit mounting. The onboard Si-20 provides high-performance pumping with ultra-quiet operation. The kit is designed for convenient and attractive installation in tight spaces.

• Compact, sleek design for convenient under unit mounting
• Onboard Si-20 provides high performance pumping capacities
• Ultra quiet operation

Product Highlights

This Omega Pack Kit is designed for efficient condensate removal in mini-split systems, offering quiet operation and easy installation.

Product Information

Standard Information

• Brand: SAUERMANN
• Manufacturer Part Number: SAU-OP20UL01UN23

Technical Specifications

• MAX. FLOW RATE: 5.0 gph
• MAX. DISCHARGE HEAD: 33ft; flow rate = 1 gph
• MAX. PRESSURE: 46ft; flow rate = 0 gph
• SOUND LEVEL AT 3.3FT: 22 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating with water, out of application)
• POWER SUPPLY: 230 V ~ 50/60 Hz - 14 W (OP20UL01UN23)
• INSULATION CLASS: Double Insulation
• DETECTION LEVELS: On: 5 /8" • Off: 7 /16" • Safety: 3 /4"
• SAFETY SWITCH: NC 8A resistive - 250 V
• THERMAL PROTECTION: 240°F auto-reset
• OPERATING CONDITIONS: 230V - 60%: 3s ON – 2s OFF
• Manufacturer: Sauermann
• Manufacturer Part Number: OP20UL01UN23
• Voltage: 230 V AC, 50/60 Hz
• Max Flow Rate: 5 GPH (18.9 L/h)
• Max Discharge Head: 33 ft (10 m)
• Sound Level: ≤ 22 dBA at 1 m
• Power Consumption: ≈ 14–15 W
• Mounting: Reversible, compact footprint for mini-split units
• Compatibility: For units up to 5.5 tons (18,000–66,000 BTU)
