Product Description

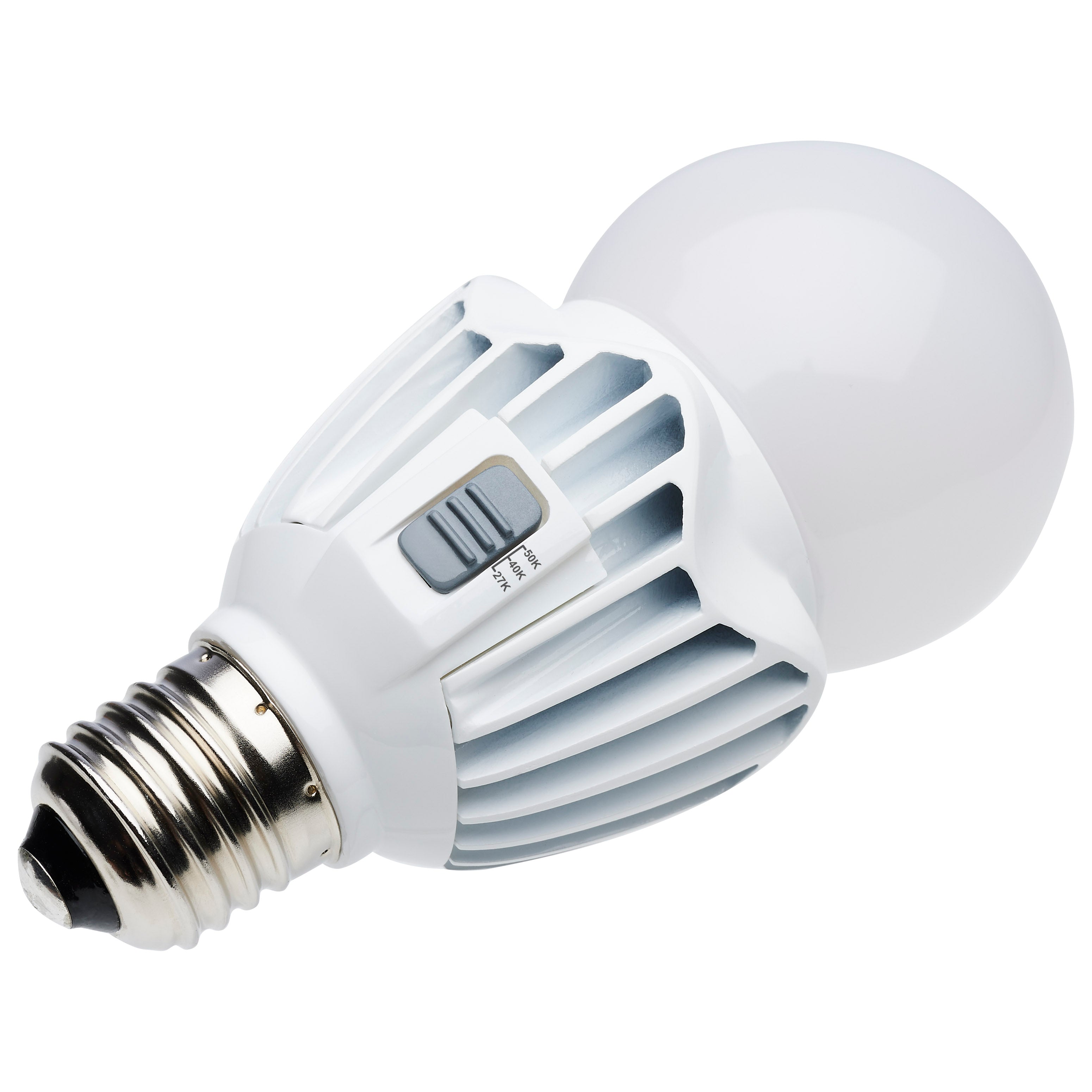

The Satco S28737 is a 20 Watt LED A21 lamp with high lumen output and a selectable color temperature of 2700K, 4000K, and 5000K. It features a medium base and a white finish, and it is designed to operate on 120V-277V. This lamp is equivalent to 150W incandescent lights and is suitable for indoor and outdoor use.
- Halogen and ceramic metal halide replacement lamp
- Universal burning position
- 6 in L x 6 in W x 8-1/2 in D minimum compartment
Product Highlights
This 20W LED A21 lamp offers selectable color temperatures and is dimmable in 120V applications. It's designed for high heat dissipation and is suitable for various applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S28737
-
Country of Origin: Malaysia
Technical Specifications
-
Brand: Satco
-
Product UPC: 04592328737
-
12-Digit UPC: 045923287374
-
Average Life: 25000 hr
-
Beam Angle: 280 deg
-
Color Rendering Index (CRI): 80
-
CCT (Kelvin): 2700K/4000K/5000K K
-
Lamp Base Type: E26 Medium
-
Lamp Finish: Frosted
-
Lamp Type: LED
-
Lumens: 2760L/3020L/2860L Lumens
-
Shape: A21
-
Type: Type A
-
Voltage Rating: 120 to 277 VAC
-
Wattage: 20 W
-
Incandescent Equivalent: 150 W
-
MPN: S28737
-
Finish: White
-
Dimmable: Yes-Dimmable
-
Operating Frequency: 50/60Hz
-
Operating Temp: -25C (-13F) to +45C (+113F)
-
Volts: 120V-277V
-
Watts: 20W
-
Lamp Base: Medium
-
Housing Color: White
-
ANSI Base: E26
-
MOD Lamps: 2.46
-
MOL: 5.08
-
Rated For Enclosed Fixture: True
-
Ballasting Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
-
Dimmable Text: 120V only
-
Lamp Filament: LED
-
Material: Die-Cast Aluminum / PC
-
Fixture Type: Type A
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2KV
-

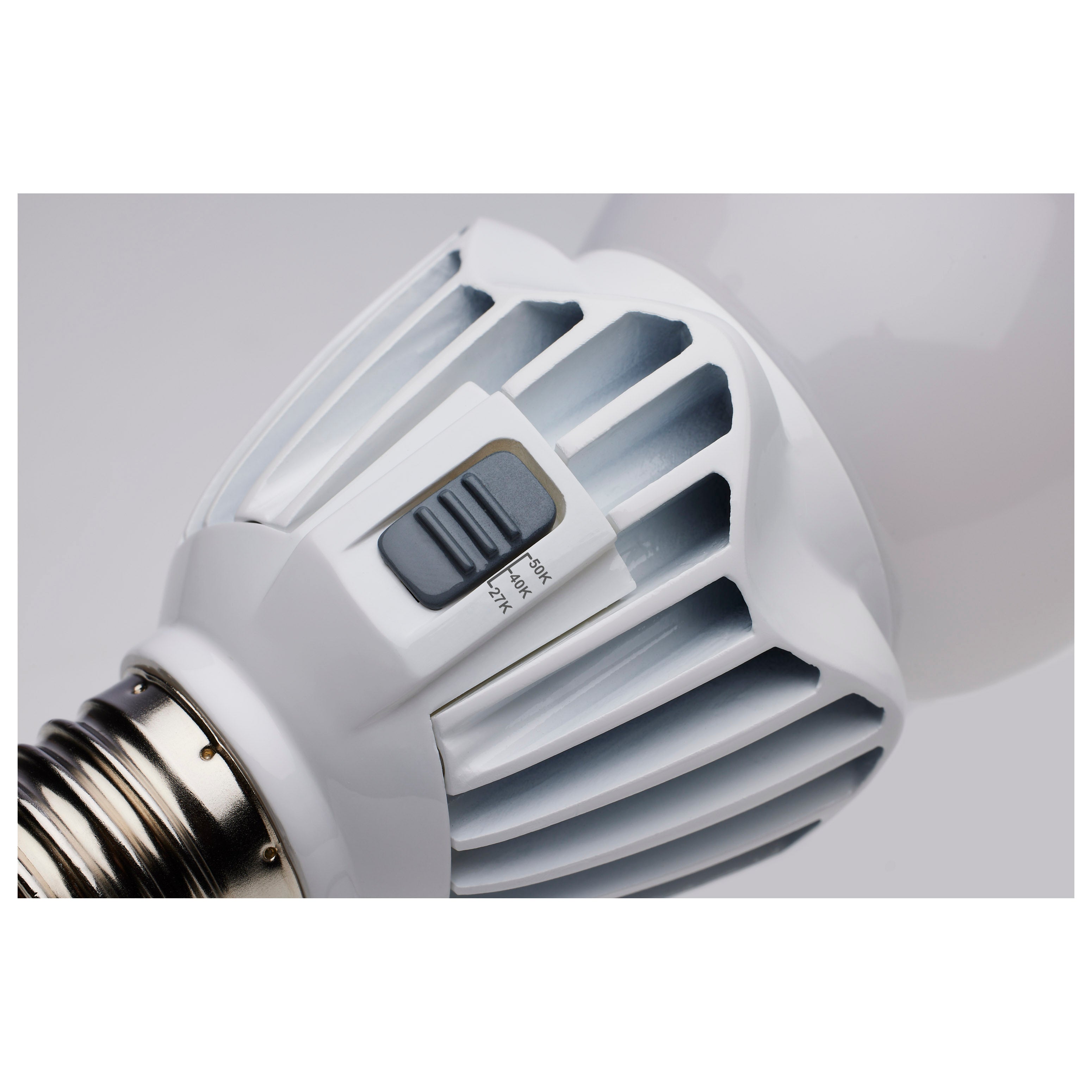

CCT Selectable: True
-
Wattage Selectable: False
-
Lens Finish: Frosted
-
Lens Material: Polycarbonate (PC)
-
Minimum Compartment Size: Length: 6 in. Width: 6 in. Height: 8.5 in.
-
Power Factor: >0.9
-
SDS Class: LED_Lamp
-
Indoor Outdoor: Indoor, Outdoor
-
Product Technology: LED
-
CCT (Kelvin Temp): 2700K/4000K/5000K
-
Dimming Type: Forward Phase or Reverse Phase or Phase Selectable
-
Amps: 0.200A
-
Bulb Shape Size: A21
-
Bulb Base: E26
-
Voltage: 120 Volts
-
Brightness: 2760 Lumen
-
Power Source: Corded Electric
-
Light Source Type: Light Emitting Diode (LED)
-
Accepted voltage frequency: 100 to 240 Volts and 60 Hertz
-
White Brightness: 2760 Lumens
-
Size: 20 Watts
-
Special Features: Adjustable Color Temperature, Dimmable, Energy Efficient, Frosted, Shatter Resistant
-
Average Rated Life: 50000 hr
-
Beam Spread: 280
-
Correlated Color Temp: 2700 K
-
Wet Location: Damp
-
Pkg Qty: 1
-
GTiN: 00045923287374
-
LPW: 151
-
Enclosed Fixture Rated: Yes
-
Ratings and Certifications: Damp Location/UL
-
Burn Position: Universal
-

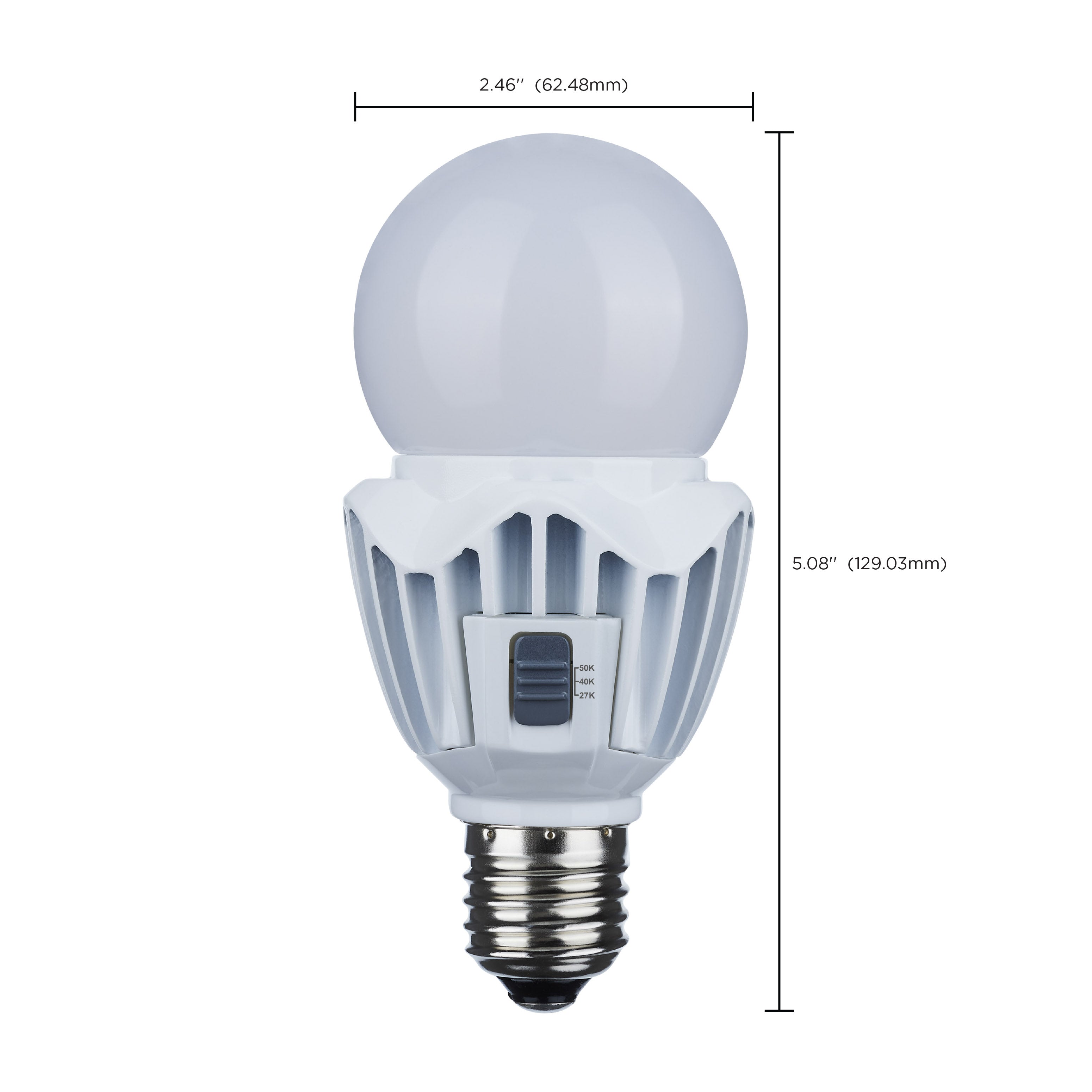

Height: 5.08 in.
-
Diameter: 2.46 in.
-
Case Quantity: 12
