Product Description

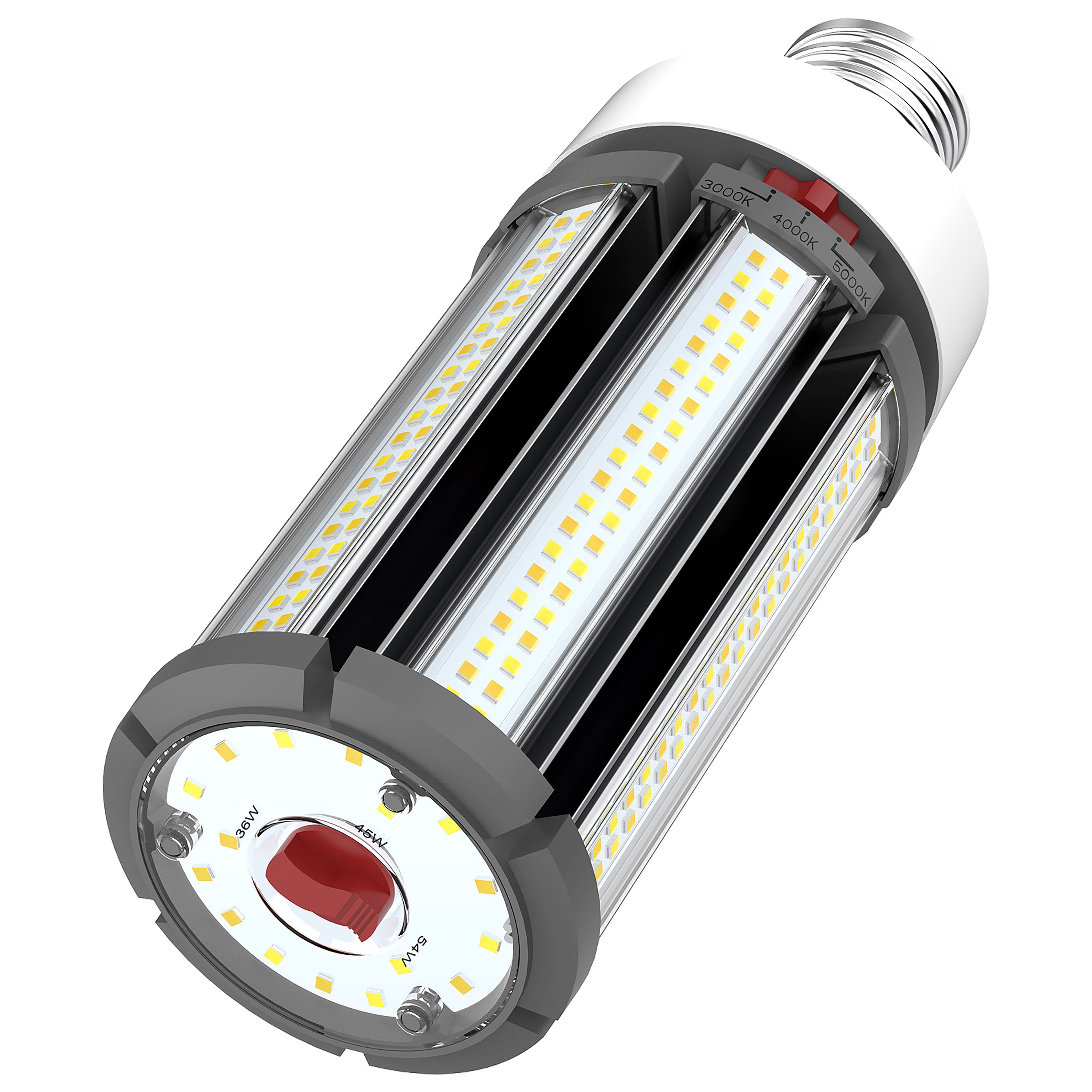

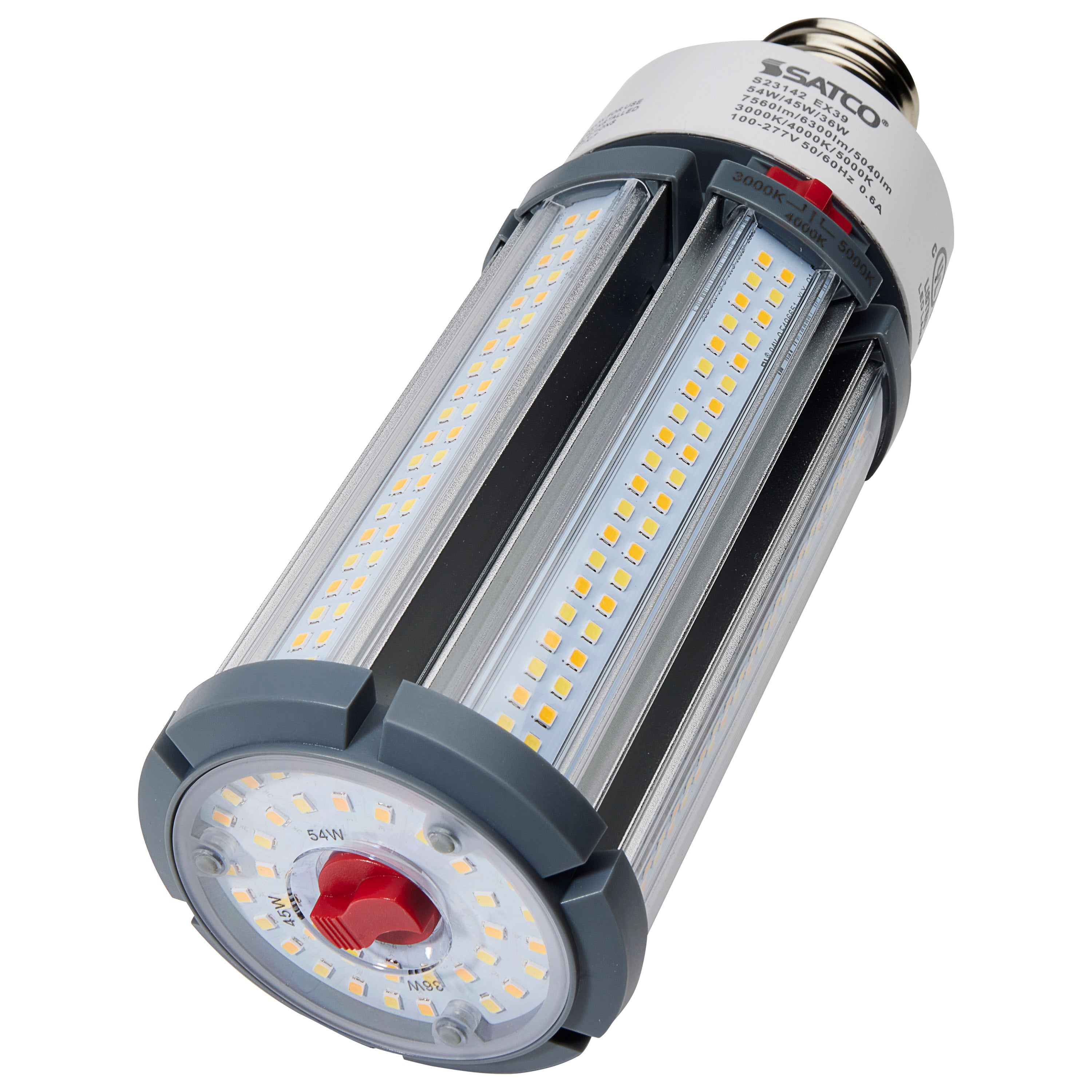

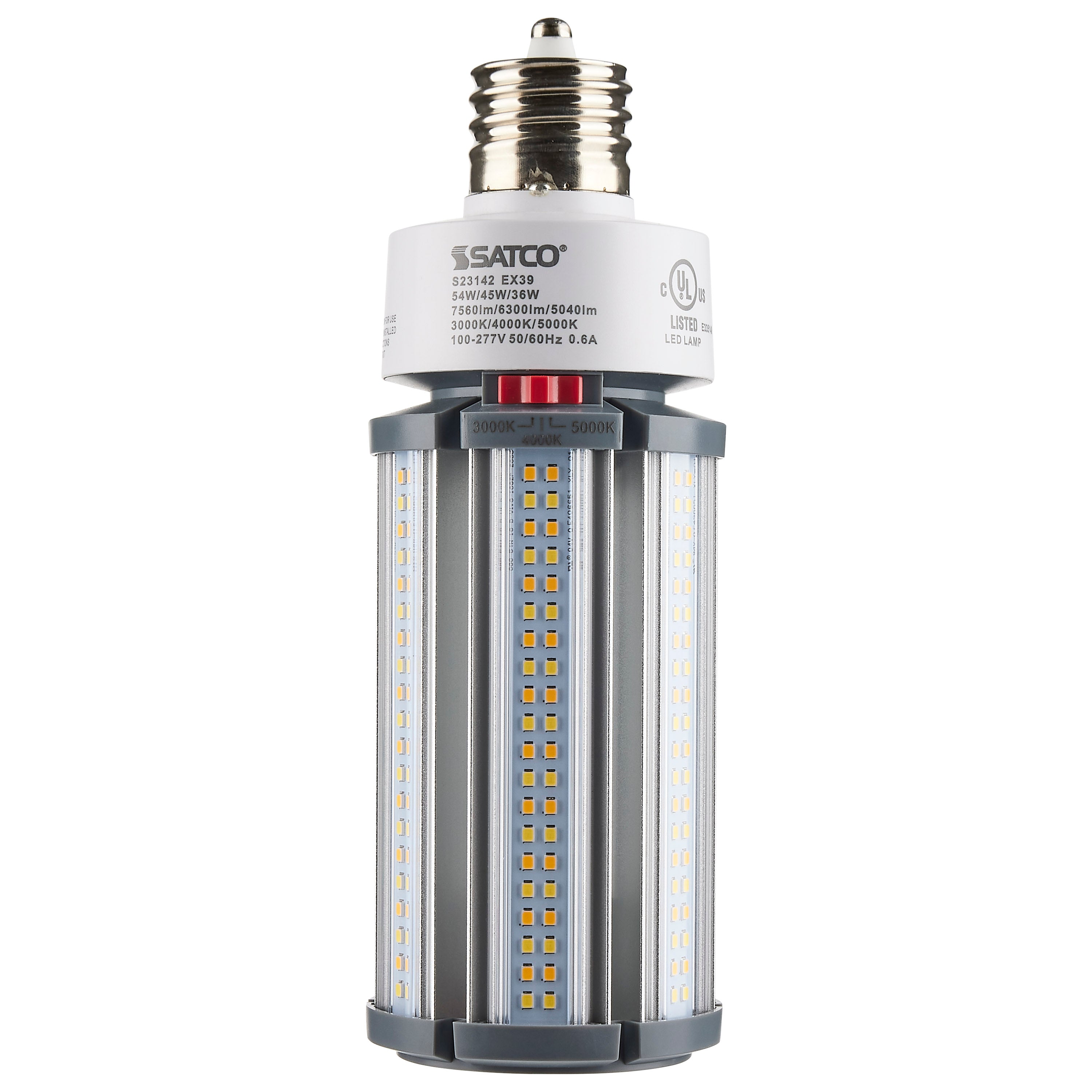

The SATCO S23142 is a versatile LED HID Replacement lamp, offering selectable wattages of 54W, 45W, and 36W, along with CCT selectable options of 3000K, 4000K, and 5000K. This corncob-shaped lamp operates on 100-277 Volts and features an Extended Mogul Base, making it suitable for various commercial and industrial applications. It provides efficient lighting for spaces like gymnasiums, warehouses, and areas with high ceilings.

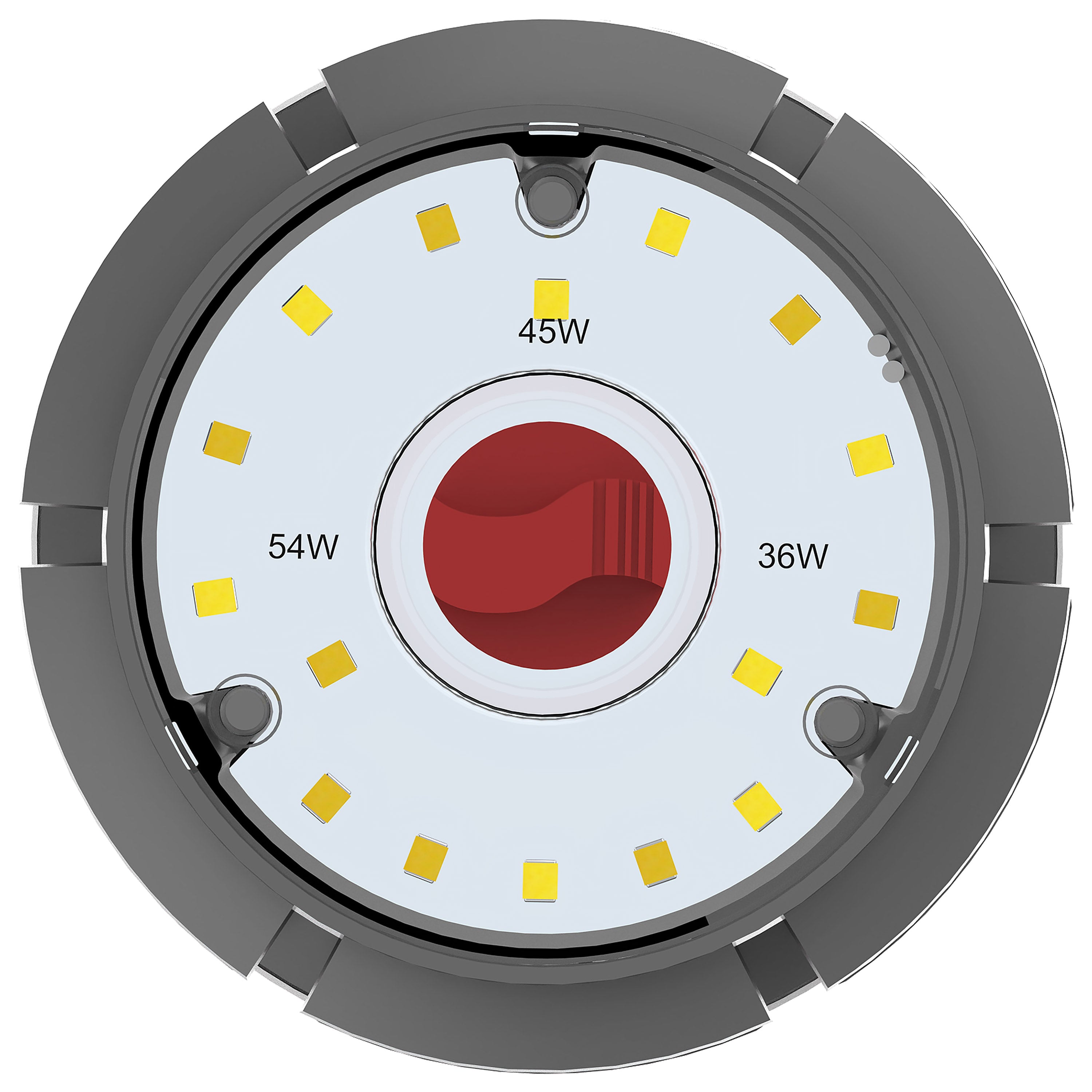

- Dimmable only via the wattage/lumen selectable dial included on the lamp.
- Features CCT selectable options (3000K/4000K/5000K) for customized lighting.
- Offers wattage selectable functionality (54W/45W/36W) to adjust power output.
Product Highlights
This Hi-Pro LED Corncob lamp provides energy-efficient HID replacement with tunable wattage and color temperature, suitable for indoor and outdoor high-ceiling applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S23142
-
Country of Origin: China
Technical Specifications
-
MPN: S23142
-
Brand: Satco
-
Made in USA: No
-
Bulb Type: Corncob
-
Certifications: cULus listed, cULus classified, Lawful for sale in California, FCC Compliant, TITLE20, ROHS Compliant, DLC Approved, DLC ID: S-KS5HW0
-
Color Temperature: 3000K/4000K/5000K
-
Color Temperature Description: Soft White / Cool White / Daylight
-
Length (MOL): 9.69 in.
-
Diameter (MOD): 3.35 in.
-
Bulb Shape (ED): ED28
-
Sub-Brand: Hi-Pro
-
Amps: 0.6
-
Ballasting Requirements: Ballast Bypass
-
Rated For Enclosed Fixture: Yes
-
HID Equivalent: 200W
-
Location Use: Indoor and Outdoor
-
IP Rating: IP64
-
Lamp Ballast Type: Type B
-
Lens Finish: Clear
-
Material: Aluminum and Plastic
-
NSF Approved: No
-
Operating Frequency: 50-60 Hz
-
Operating Temperature: -30C (-22F) to +45C (+113F)
-
Power Factor: >0.9
-
Location Rating: Damp
-
Surge Protection: Built-in surge protection - 4KV
-
Lumens: 7560L/6300L/5040L
-
Input Voltage: 100-277 Volt
-
Lamp Base: Extended Mogul
-
Finish: White
-
Beam Angle: 360 degrees
-
Rated Life Hours: 50000
-
Lamp Technology: LED
-
THD: 16.60%
-
Lens Material: Plastic
-
Minimum Compartment Size: Length: 7.88 in., Width: 7.88 in.
-
Operating Position: Universal
-
Incandescent Equivalent: 125W/150W/200W
-
CRI: 80+
-
Housing Color: Dark Gray
-
Lamp Base ANSI: EX39
-
Bug Rating: B2-U5-G3
-
Wattage: 54W/45W/36W
-
Efficacy: 140 Lumens per Watt
