Satco S13192 led hid ed37 45w ex39

Product Description

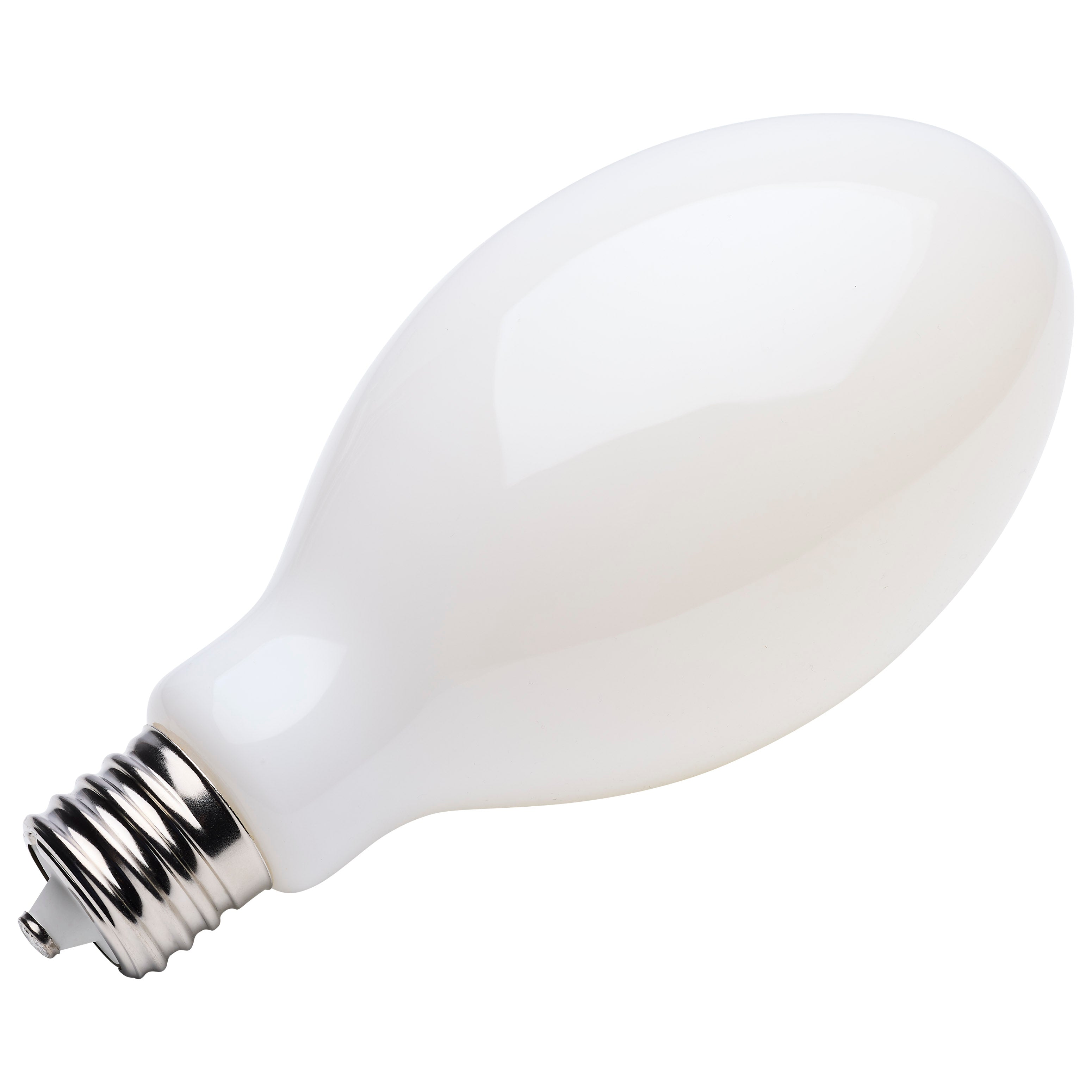

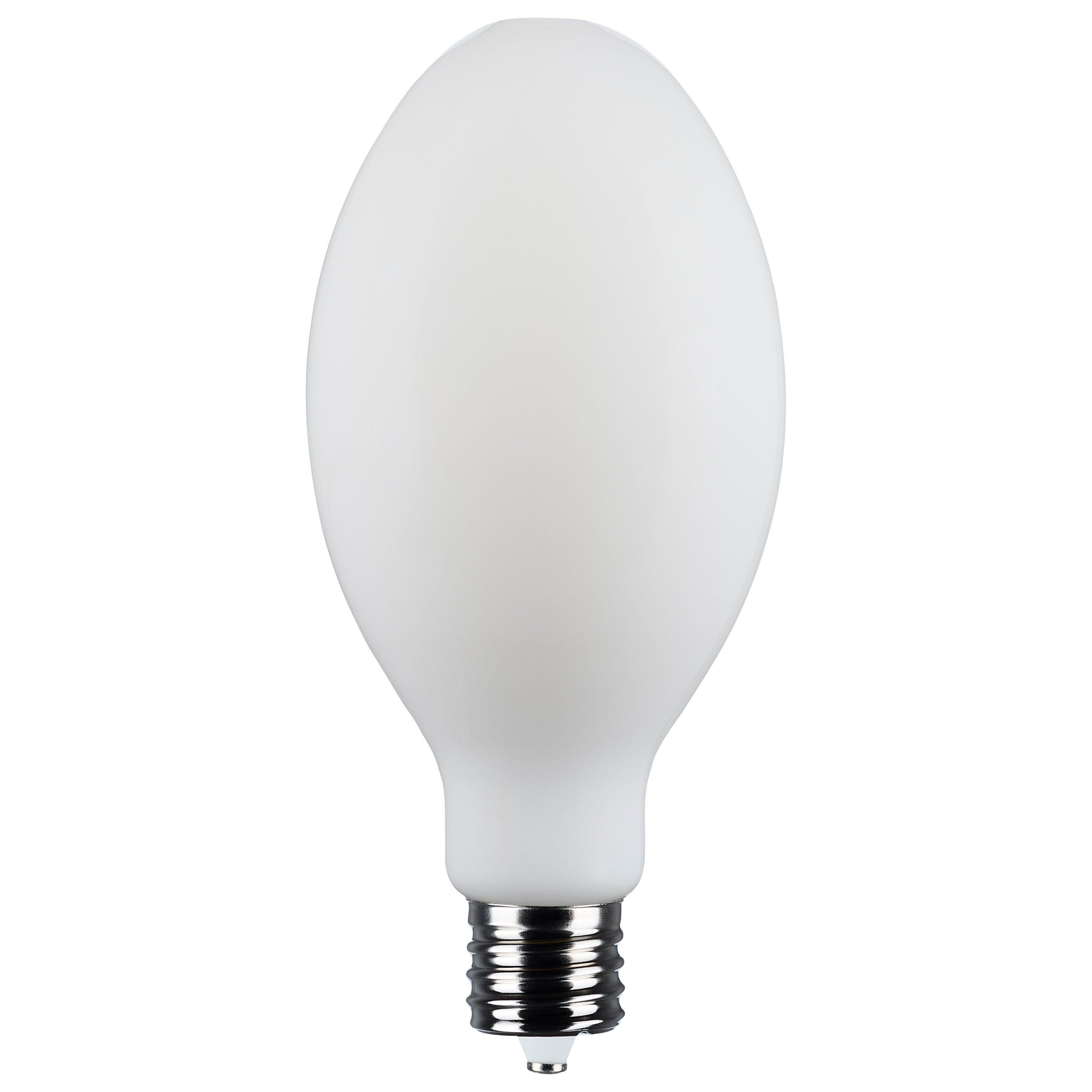

The SATCO S13192 is a 45W LED HID replacement lamp with an ED37 form factor and an EX39 extended mogul base. Operating within a 120V-277V range, this lamp is designed for ballast bypass installations. It emits a 5000K natural light and is suitable for both indoor and outdoor use.

• 45 Watt LED HID Replacement
• ED37 Form Factor
• Extended Mogul Base

Product Highlights

45W LED HID replacement lamp with EX39 base, operating at 120V-277V, ideal for indoor and outdoor applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S13192

Technical Specifications

• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Material: Glass
• Fixture Type: LED HID
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 4KV
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: White
• Amps: 0.380-0.160A
• Has Camera: False
• IOT Enabled: False
• Operating Position: Universal
• Power Factor: 0.9
• SDS Class: LED_Lamp
• Indoor Outdoor: Indoor, Outdoor
• Product Technology: LED
• CCT (Kelvin Temp): 5000K
• Dimmable: Non-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 320
• Color Temp: Natural Light
• CRI: 80+
• Operating Frequency: 60Hz
• Operating Temp: -30C (-22F) to +65C (+149F)
• HID Equivalent: 250W
• Lumens: 7500L
• Volts: 120V-277V
• Watts: 45W
• Lamp Base: Mogul Extended
• Finish: WHITE
• Housing Color: None
• ANSI Base: EX39
• Lamp Type: ED37

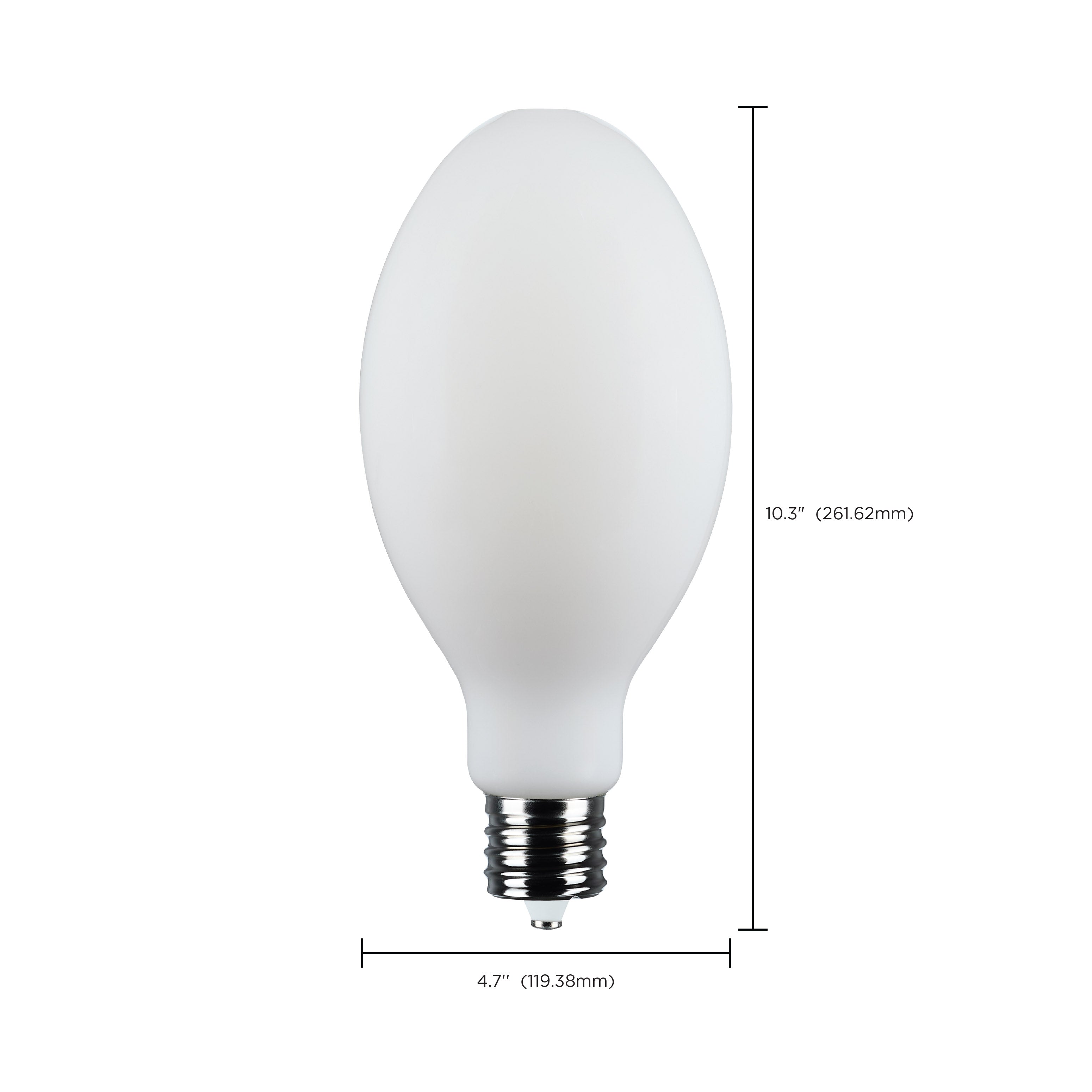

• MOD Lamps: 4.7
• MOL: 10.3
• Rated For Enclosed Fixture: True
