Product Description

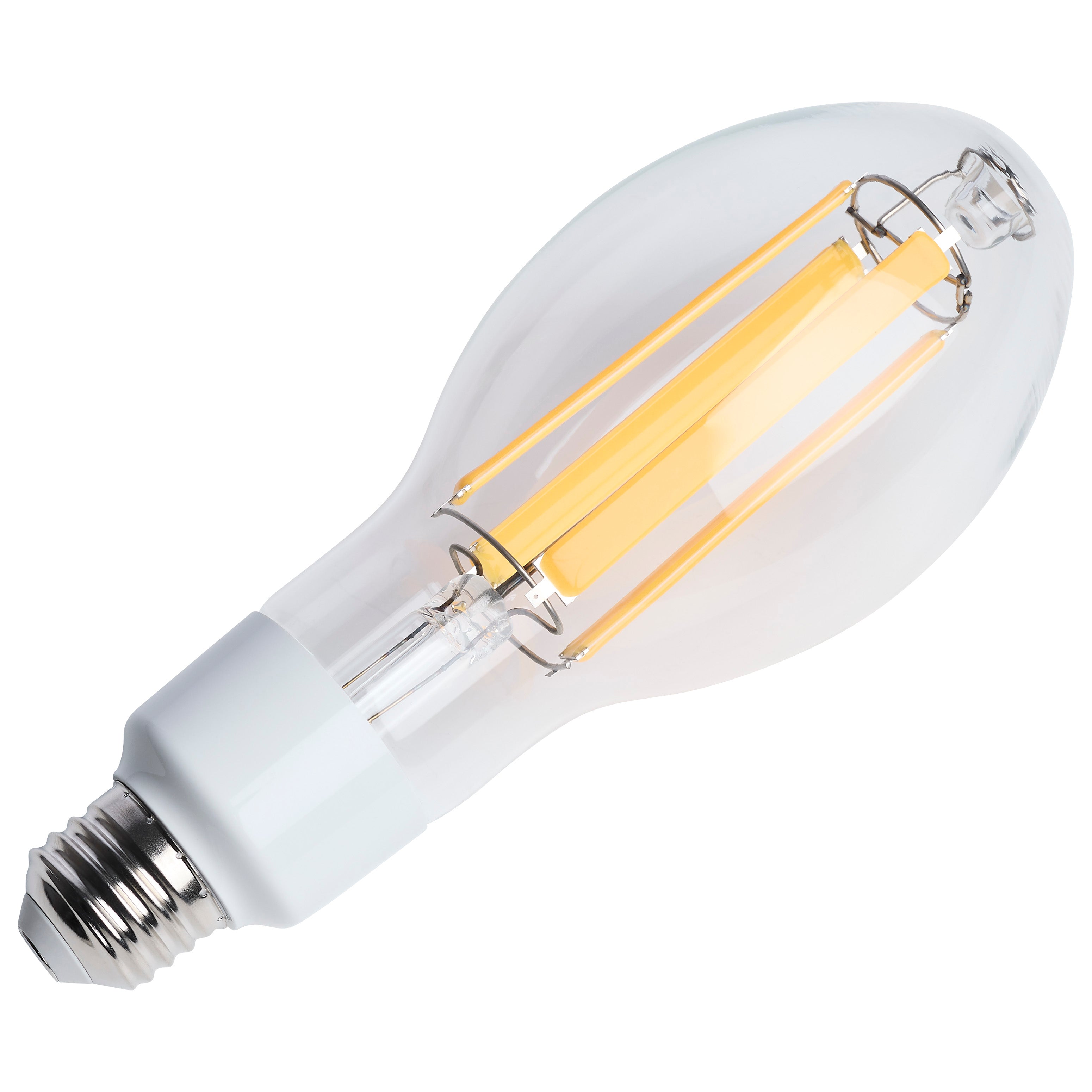

The SATCO S13183 23W LED HID replacement lamp is designed for energy-efficient upgrades of traditional HID lamps. This ED23.5 lamp features a medium base, operates within a 120V-277V range, and emits a 2200K warm white light. Ideal for streetlights, warehouses, retail spaces, and gymnasiums, it offers a long-lasting lighting solution for indoor and outdoor applications.
- 23 Watt LED HID Replacement
- ED23.5 shape resembles traditional HID lamps
- Built-in 4KV surge protection
Product Highlights
Energy-efficient LED HID replacement with a 2200K color temperature, suitable for a variety of applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S13183
-
Country of Origin: China
Technical Specifications
-
Company: SATCO
-
Lamp Ballast Type: Type B
-
Ballasting Requirements: Ballast Bypass
-
Lamp Filament: LED
-
Material: Glass
-
Fixture Type: LED HID
-
Status: Active
-
Style: ED23.5
-
Surge Protection: Built-in surge protection - 4KV
-
CCT Selectable: False
-
Wattage Selectable: False
-
Finish Family: Clear
-
Amps: 0.190-0.080A
-
Has Camera: False
-
IOT Enabled: False
-
Operating Position: Universal
-
Power Factor: 0.9
-
SDS Class: LED_Lamp
-
Indoor Outdoor: Indoor, Outdoor
-
Product Technology: LED
-
CCT (Kelvin Temp): 2200K
-
Dimmable: Non-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 320
-
Color Temp: Warm White
-
CRI: 80+
-
Operating Frequency: 60Hz
-
Operating Temp: -30C (-22F) to +65C (+149F)
-
HID Equivalent: 100W
-
Lumens: 3400L
-
Volts: 120V-277V
-
Watts: 23W
-
Lamp Base: Medium
-
Finish: Clear
-
Housing Color: White
-
ANSI Base: E26
-
Lamp Type: ED23.5
-
MOD Lamps: 2.95
-
MOL: 7.6
-
Rated For Enclosed Fixture: True
-
Brand: Satco | Nuvo
-
Brand Category: HID Replacements
-
Brand Product Description: 23 Watt Led Hid Replacement - Ed23.5 - 2200k - Medium Base - Clear - 120-277 Range Voltage
-
Wattage Max: 23.00
-

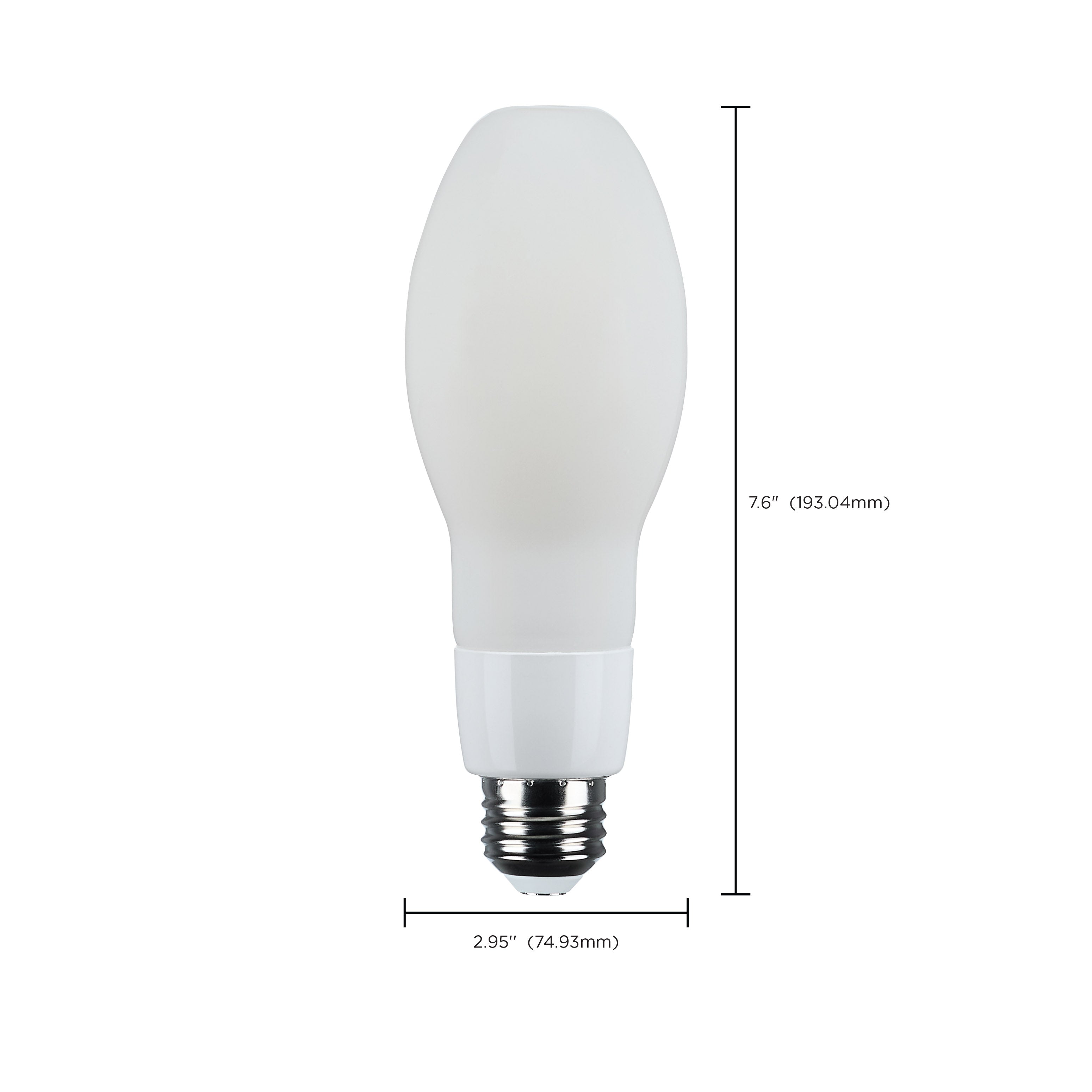

Diameter: 2.95
-
Length: 7.6
-
Width: 2.95
-
Country of Origin: China
-
UL Ratings: cULus Wet
-
Features: E26 Base
Ballast Bypass Type B
Range Voltage 120V-277V
4kV Integrated Surge Protection
ED23.5 Shape
-
Batteries Included: No
-
Commercial Usage: Yes
-
Mildew Resistant: No
-
Light Type: LED
-
Special Feature: Energy Efficient, Long Lasting
-
Bulb Shape Size: ED23
-
Bulb Base: E26
-
Incandescent Equivalent Wattage: 50 Watts
-
Specific Uses For Product: Lamp
-
Light Color: White
-
Voltage: 120 Volts
-
Unit Count: 1.0 Count
-
Color Temperature: 2200 Kelvin
-
Number of Items: 1
-
Brightness: 3400 Lumen
-
Model Name: S13183
-
Light Source Wattage: 23 Watts
-
Average Life: 50000 Hours
-
White Brightness: 3400 Lumens
-
Manufacturer: Satco Products
-
Part Number: S13183
-
Item model number: S13183
-
Size: 2200K
-
Special Features: Energy Efficient, Long Lasting
-
Included Components: 1 Bulb
-
Batteries Required?: No
-
Shape: ED23.5
-
Base: Medium
-
Temperature: Warm White
-
Beam Spread: 320
-
Product Category: Lamp - HID Replacements
-
Technology: LED
-
IP Rating: IP65
-
Installation Notes: Not for use in vapor tight fixtures.
-
Safety Listing: cULus - Certified; cULus - Classified; cULus - Listed
-
Location Rating: Wet
-
DLC Approved: No
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
MPN (Part No.): S13183
-
Lighting Technology: LED
-
LPW: 148
-
Enclosed Fixture Rated: Yes
-
Metal Halide Equal: 100 Watt
-
Burn Position: Universal
-
Height: 7.6 in.
-
Case Quantity: 12
-
Input Voltage: 120-277V
-
Lamp / Base Type: E26 Medium
-
Lamp Shape: ED23
-
Rated Hours: 50,000 Hours
-
Equivalent: 100W HID
-
Min Operating Temp: -4 Degrees F
