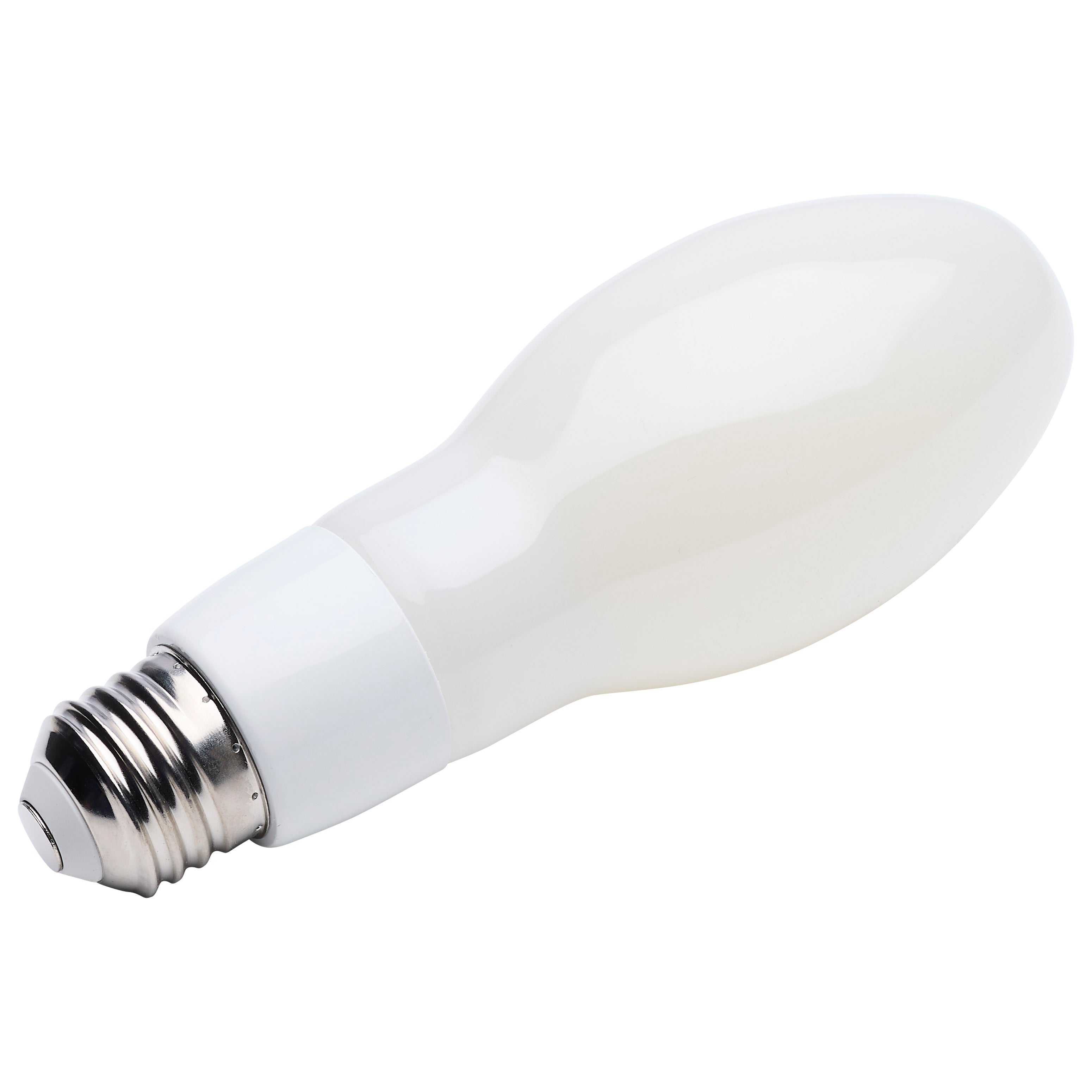

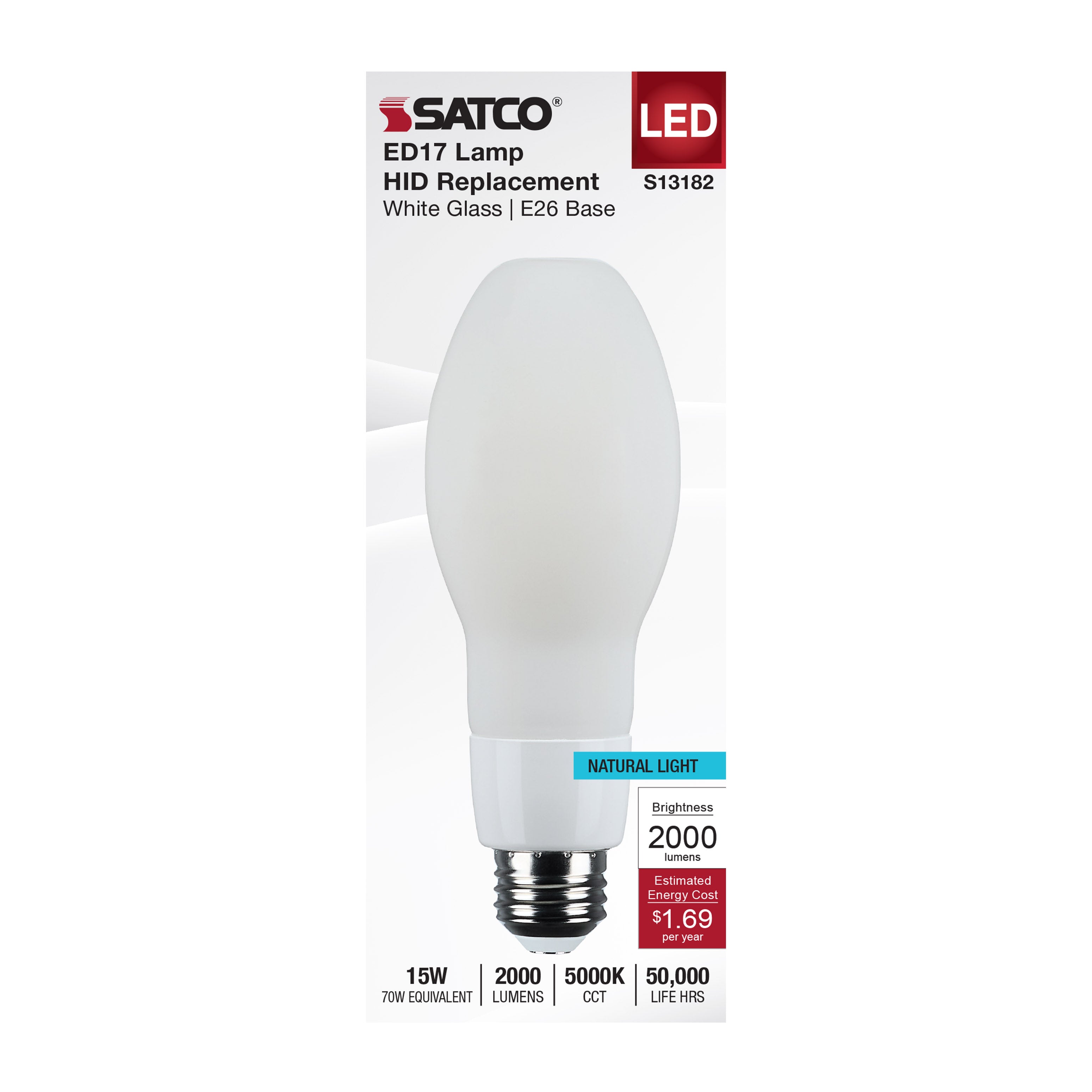

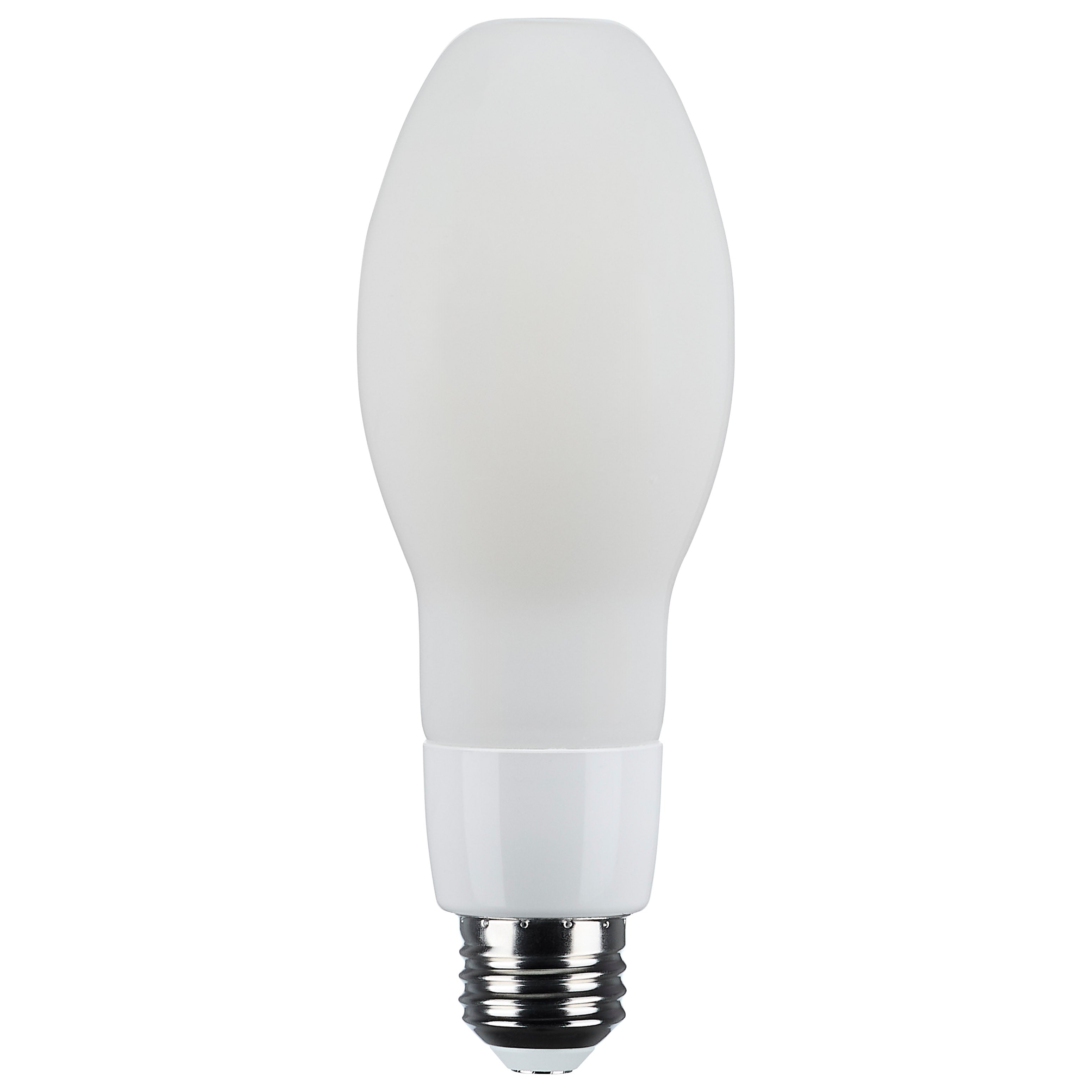

Satco S13182 15W LED HID Replacement ED17 5000K E26

Product Description

The SATCO S13182 is a 15W LED HID replacement lamp with an ED17 shape and E26 medium base. This lamp is designed for energy-saving replacement of 70W metal halide or high-pressure sodium systems. It delivers 2000 lumens at a 5000K daylight color temperature, providing clarity and visibility. Built-in 4KV surge protection ensures reliability.

• 15 Watt LED HID Replacement
• 5000K color temperature
• Suitable for enclosed fixtures and wet locations

Product Highlights

This 15W LED HID replacement lamp offers a long 50,000-hour life and a wide 320° beam angle, ideal for security lighting, wall packs and small area lights.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S13182

Technical Specifications

• Company: SATCO
• Lamp Ballast Type: Type B
• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Material: Plastic
• Fixture Type: LED HID
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 4KV
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: White
• Amps: 0.110-0.050A
• Has Camera: False
• IOT Enabled: False
• Operating Position: Universal
• Power Factor: 0.9
• SDS Class: LED_Lamp
• Indoor Outdoor: Indoor, Outdoor
• Product Technology: LED
• Color Temperature: 5000K
• Dimmable: No
• Hours Rated: 50000
• Beam Angle (degree): 320
• Color Temp: Natural Light
• CRI: 80+
• Operating Frequency: 60Hz
• Operating Temp: -30C (-22F) to +65C (+149F)
• HID Equivalent: 70W
• Lumens: 2000L
• Volts: 120V-277V
• Watts: 15W
• Lamp Base: E26
• Finish: WHITE
• Housing Color: White
• ANSI Base: E26
• Lamp Type: ED17
• MOD Lamps: 2.13
• MOL: 5.8
• Installation Notes: Not for use in vapor tight fixtures.
• Rated For Enclosed Fixture: True
• IP Rating: IP65
• Location Rating: Wet
• ROHS Compliant: Yes
• Safety Listing: cULus - Certified, cULus - Classified, cULus - Listed
• CA Compliance Text: Non-Compliant
• DLC Approved: False
• Title 20: No
• T24 Compliant: False
• Light Type: LED
• Special Feature: Energy Efficient
• Bulb Shape Size: ED17
• Incandescent Equivalent Wattage: 70 Watts
• Light Color: Natural Light
• Unit Count: 1.0 Count
• Brightness: 2000 Lumen
• Shape: Arbitrary(A)
• Power Source: Corded Electric
• Power Consumption: 15 Watts
• Item Package Quantity: 1
• Light Source Type: LED
• Light Source Wattage: 15 Watts
• Accepted voltage frequency: 100 to 240 Volts and 60 Hertz
• Control Method: Push Button
• Average Life: 50000 Hours
• White Brightness: 2000 Lumens
• Efficiency: 133.33 lm/W
• Manufacturer: Satco
• Part Number: S13182
• Item model number: S13182
• Special Features: Energy Efficient
• Batteries Required?: No
• Product Category: Lamp - HID Replacements
• Brand: Satco | Nuvo
• UPC: 045923131820
• Input Voltage: 120-277V
• Lamp / Base Type: E26 Medium
• Lamp Shape: ED17
• Rated Hours: 50,000 Hours
• Equivalent: 70W HID
• Min Operating Temp: -4 Degrees F
• Length: 5.8
• Certificate: cUL/UL Listed, Wet Location, RoHS Compliant, FCC
• Connection Type: Direct Wire
• Life Hours: 50000
• Maximum Voltage: 120V-277V
• Bulb Shape: High Output Filament Bulb
• Bulb Finish: Frosted
• LPW: 133
• Enclosed Fixture Rated: Yes
• Voltage: 120/208/240/277
• Ratings and Certifications: UL / Wet Location
• Base Type: Medium (E26)
• Metal Halide Equal: 70 Watt
• Burn Position: Universal
• Height: 5.8 in.
• Diameter: 2.13 in.
