Product Description

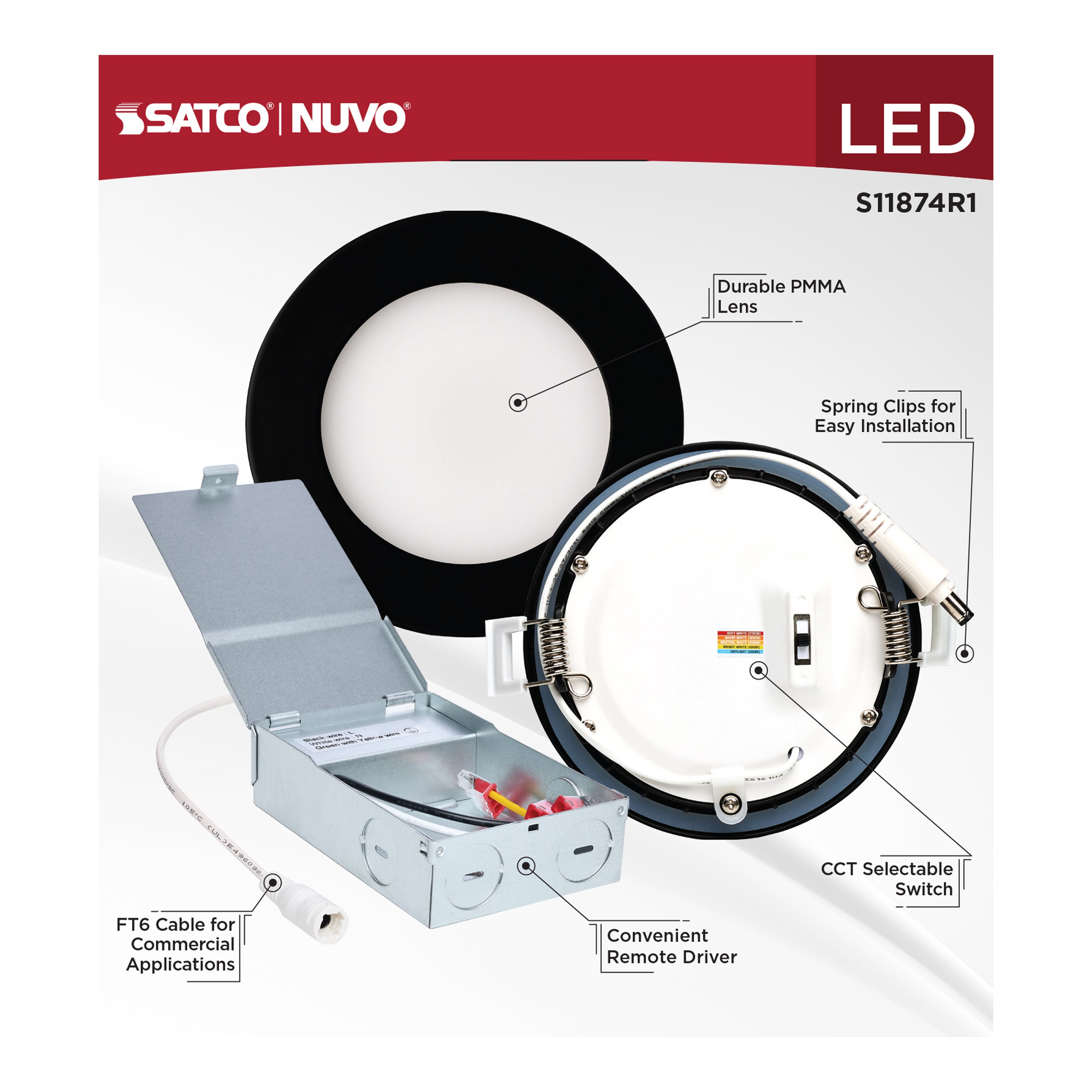

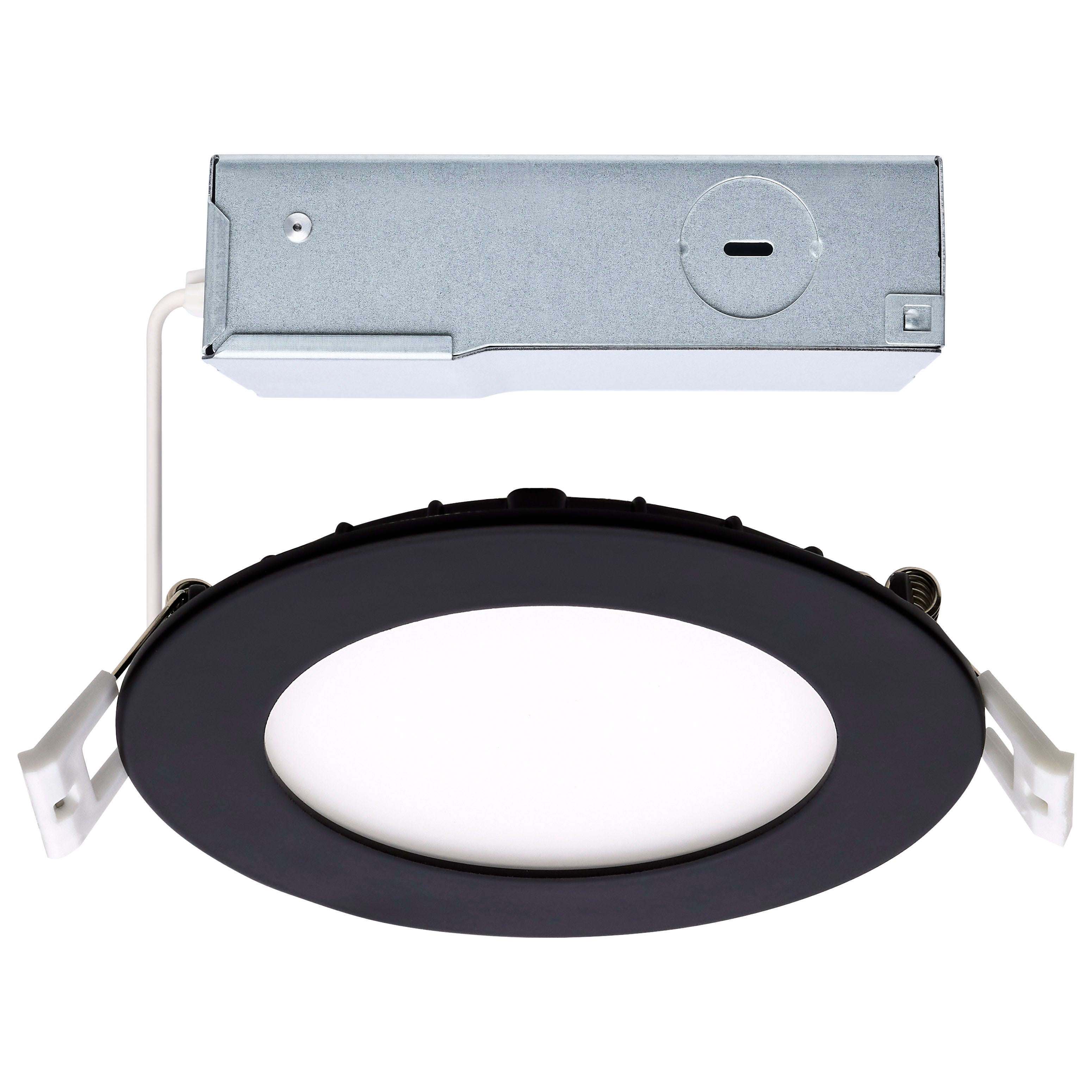

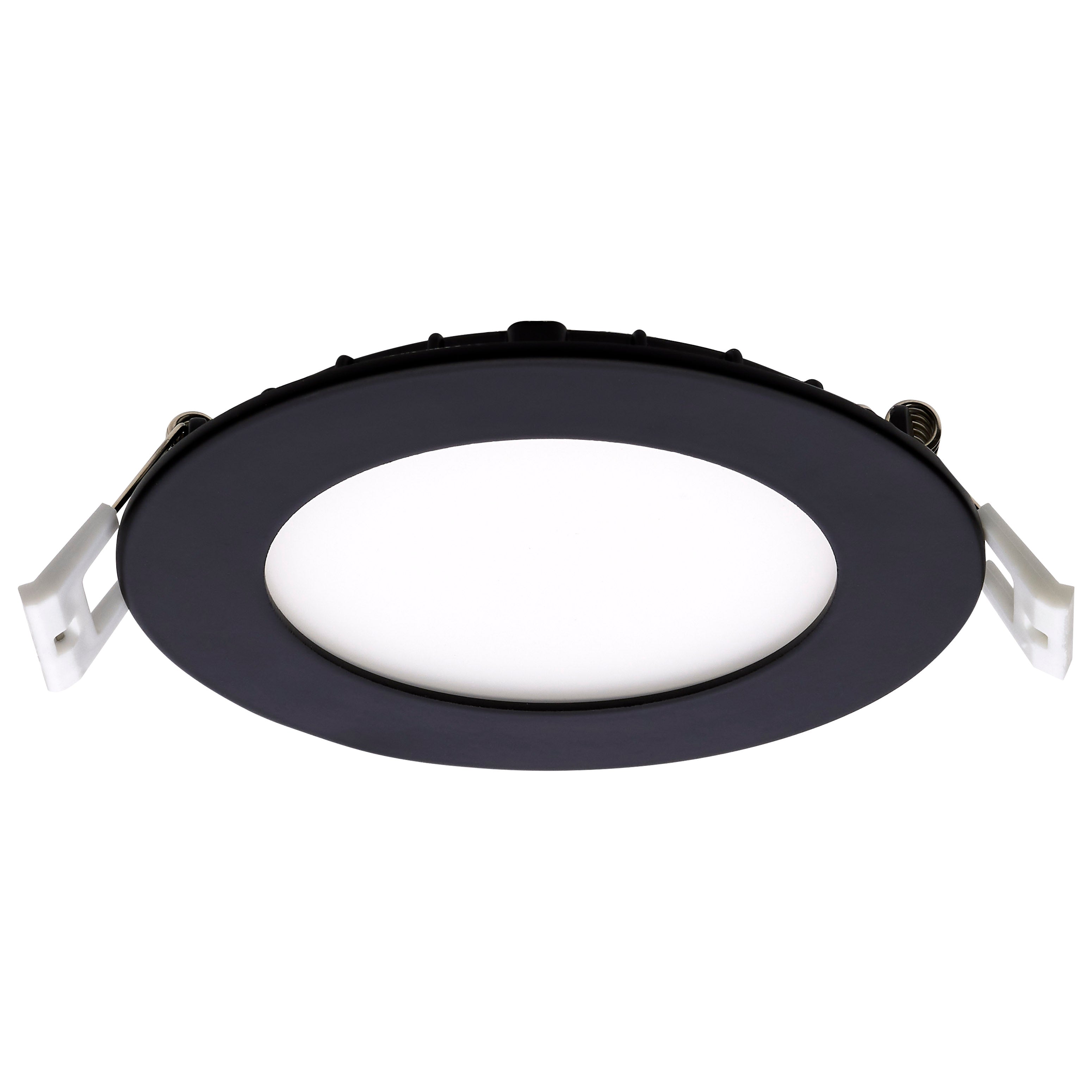

The SATCO S11874R1 is a 10 Watt LED Direct Wire Downlight, designed for versatile lighting applications. This 4-inch round fixture offers CCT selectable color temperatures (2700K-5000K) and delivers 850 lumens with a 110-degree beam angle. Operating at 120V, it features a 90+ CRI for accurate color rendering and a 50,000-hour rated life. Ideal for both indoor and outdoor wet locations, it is also dimmable and suitable for clothes closets, commercial, and residential settings.
- CCT selectable (2700K/3000K/3500K/4000K/5000K) for adjustable color temperature.
- Wet Location Rated and IC Rated, suitable for diverse indoor and outdoor environments.
- Dimmable functionality with a high 90+ CRI for accurate color rendering.
Product Highlights

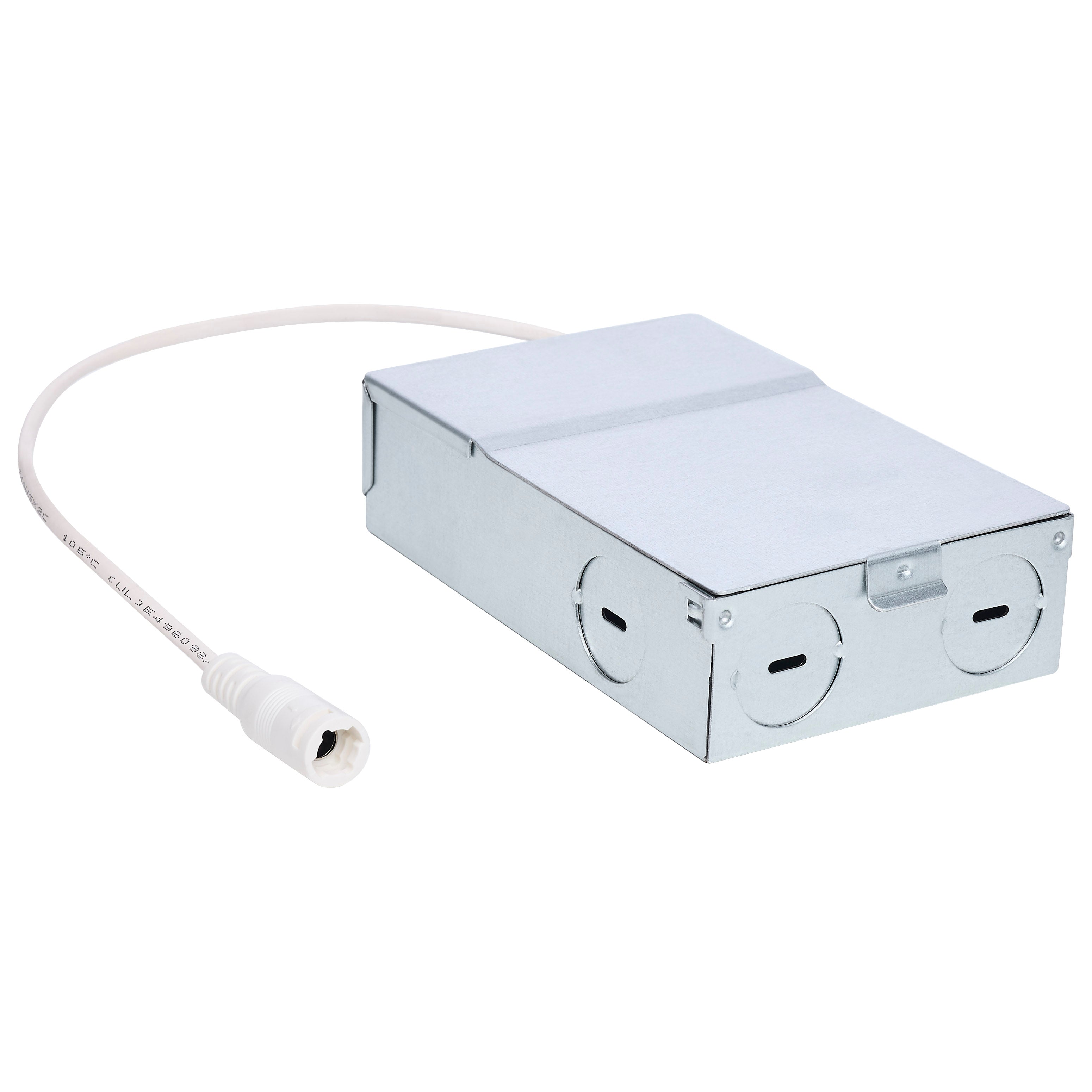

Features a durable aluminum housing, remote driver, 2.5KV surge protection, and is compatible with sloped ceilings.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11874R1
-
Country of Origin: Vietnam

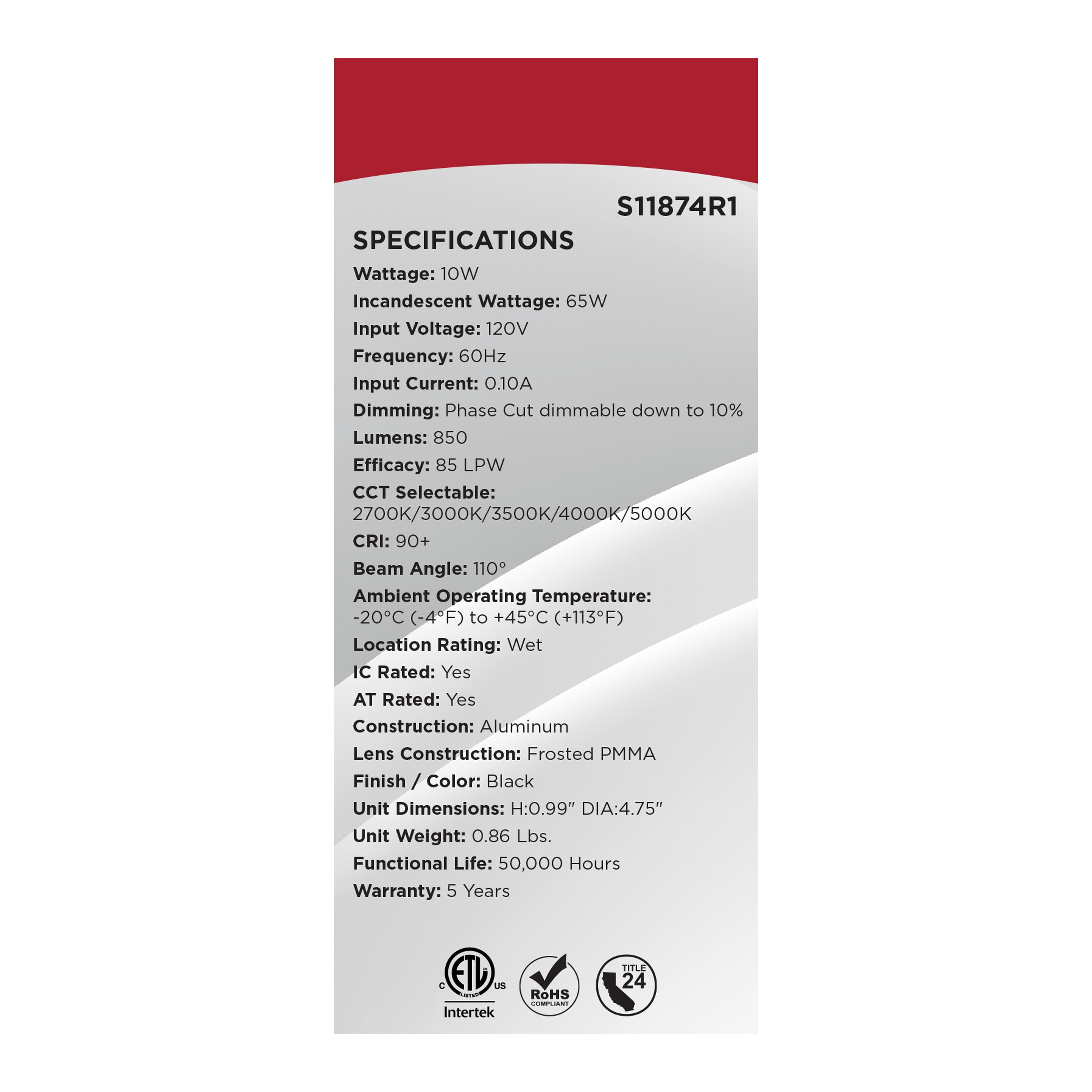

Technical Specifications
-
Mounting Height: 2.28 inches
-
Mounting Length: 4.25 inches
-
Bulb Included: Integrated
-
Center Beam Candle Power: 330 cd
-
Diameter: 4.75 inches
-
Material: Aluminum
-
Fixture Type: Direct Wire LED Downlight
-
Style: Utility
-
Surge Protection: 2.5KV
-
Total Harmonic Distortion: <20%
-
Installation Direction: Down
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Current: 0.100A
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Nominal Length: 4.0 inches
-
Power Factor: >0.9
-
Sloped Ceiling Compatible: Yes
-
Location Use: Indoor and Outdoor
-
Technology: LED
-
Incandescent Equivalent: 65W
-
Color Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: Linear Dimming, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +113F (-20C to +45C)
-
Lumens: 850 lm
-
Input Voltage: 120V
-
Wattage: 10W
-
Lamp Base: Integrated
-
Fixture Shape: Round
-
Air Tight Rated: Yes
-
FCC Compliant: Yes
-
IC Rated: Yes
-
Location Rating: Wet
-
NSF Approved: No
-
ROHS Compliant: Yes
-
Safety Listing: cETLus Listed
-
Energy Star Certified: Yes
-
Title 20 Compliance: Exempt
-
T24/JA8 Compliant: Yes
-
Category: Recessed
-
Collection: ColorQuick
-
Lumens Per Watt: 85.00 LPW
-
Dimmer Range: 100 to 10 percent
-
Dimmer Specifications: 120V Only
-
Height: 0.99 inches
-
Width: 4.75 inches
-
Hardwired Fixture: Yes
-
Driver Type: Remote
