Product Description

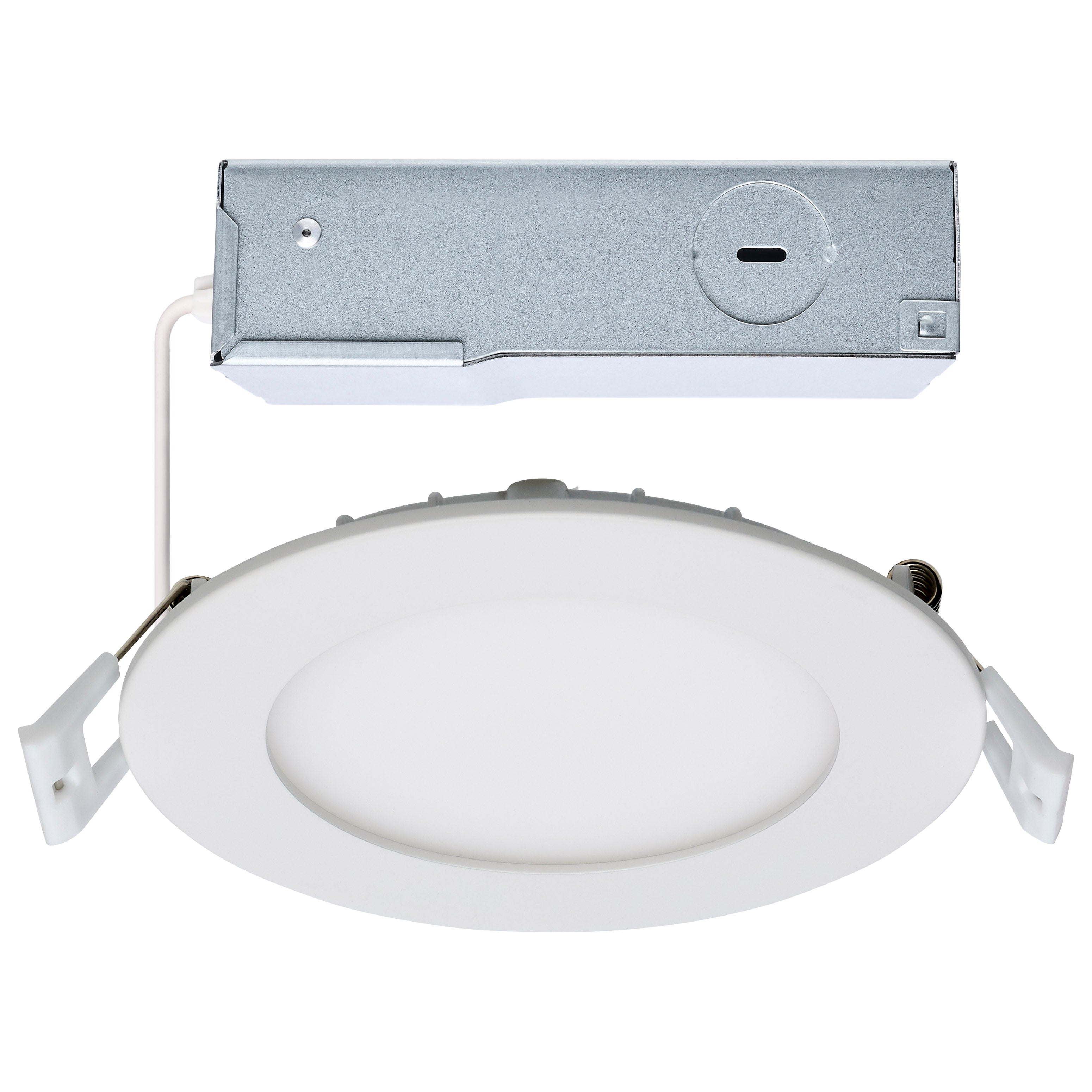

The SATCO S11826R1 is a 10 Watt LED Direct Wire Downlight with edge-lit design and a 4-inch round shape. This dimmable downlight features CCT Selectable functionality and a remote driver. Suitable for indoor and outdoor use, it offers built-in surge protection and is compatible with sloped ceilings. Ideal for creating adjustable lighting in various settings.
- Edge-lit design provides uniform light distribution.
- CCT Selectable allows adjusting color temperature.
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
Product Highlights
This 10W LED downlight offers selectable color temperatures, dimming capabilities, and is suitable for both indoor and outdoor applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11826R1
-
Country of Origin: Vietnam
Technical Specifications
-
Company: SATCO
-
Mounting Height: 2.28
-
Mounting Length: 4.25
-
Bulb Included: Integrated
-
Center Beam Candle Power: 330
-

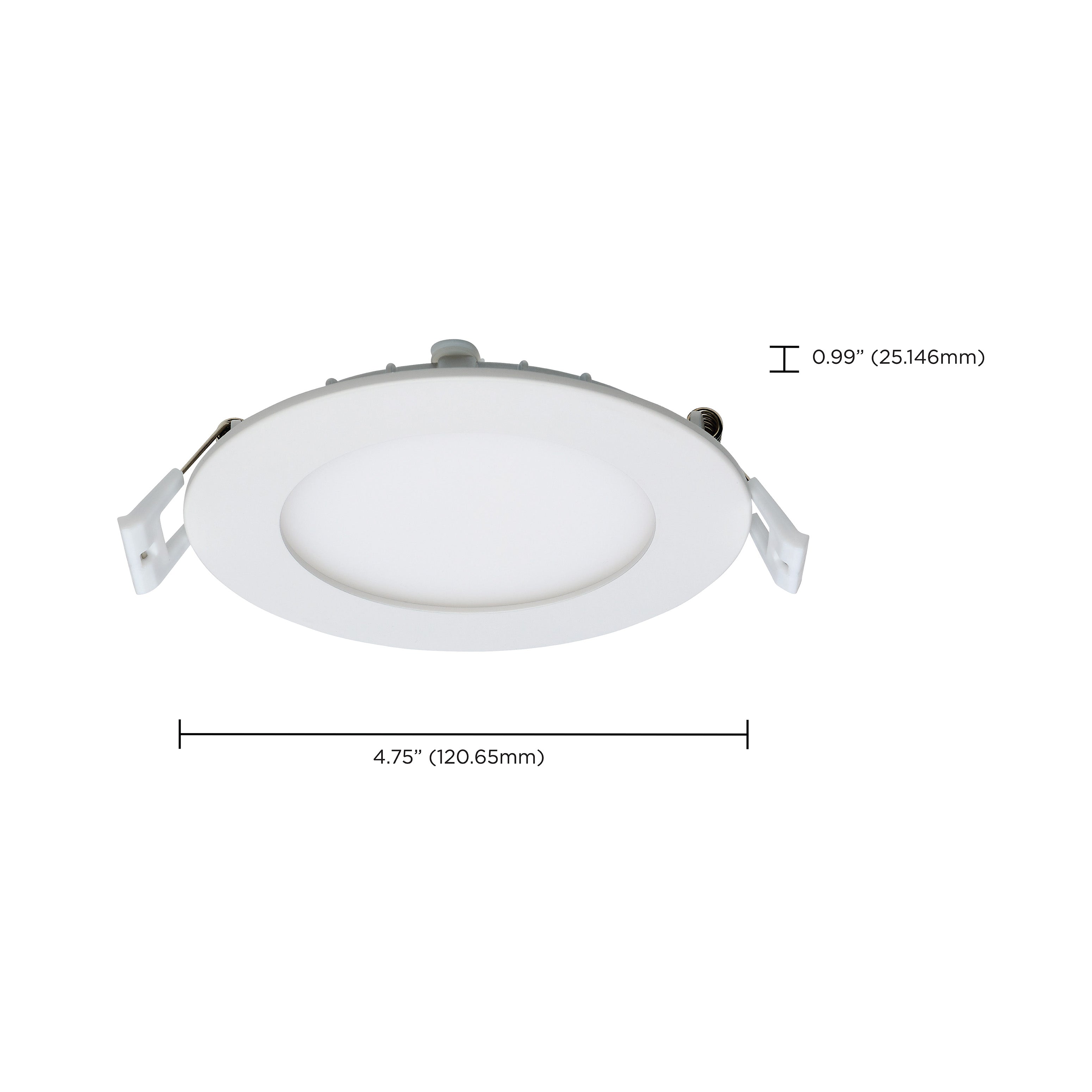

Diameter: 4.75
-
Dimmable Text: Line Voltage; 120V Only
-
Material: Aluminum
-
Fixture Type: Direct Wire LED Downlight
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: <20%
-
Up Down Installation: Down
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: White
-
Amps: 0.100A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Nominal Length: 4.0
-
Power Factor: >0.9
-
SDS Class: LED_Fixture
-
Sloped Ceiling Compatible: Yes
-
Indoor Outdoor: Indoor and Outdoor
-
Product Technology: LED
-
Incandescent Equivalent: 65W
-
CCT (Kelvin Temp): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 110
-
Color Temp: Warm White to Natural Light
-
CRI: 90+
-
Dimming Type: Linear Dimming, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temp: -20C (-4F) to +45C (+113F)
-
Lumens: 850L
-
Volts: 120v
-
Watts: 10W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Voltage: 120V
-
Location Rating: Wet Location
-
Title 24 Compliant: Yes
-
Energy Star: Yes
-
RoHS Compliant: Yes
-
Safety Listing: cETLus - Listed
-
Shape: Round
-
Color Temperature: CCT Selectable
-
CCT Range: 2700K/3000K/3500K/4000K/5000K
-
Light Color: CCT Selectable
-
Beam Angle: 110 Degrees
