Product Description

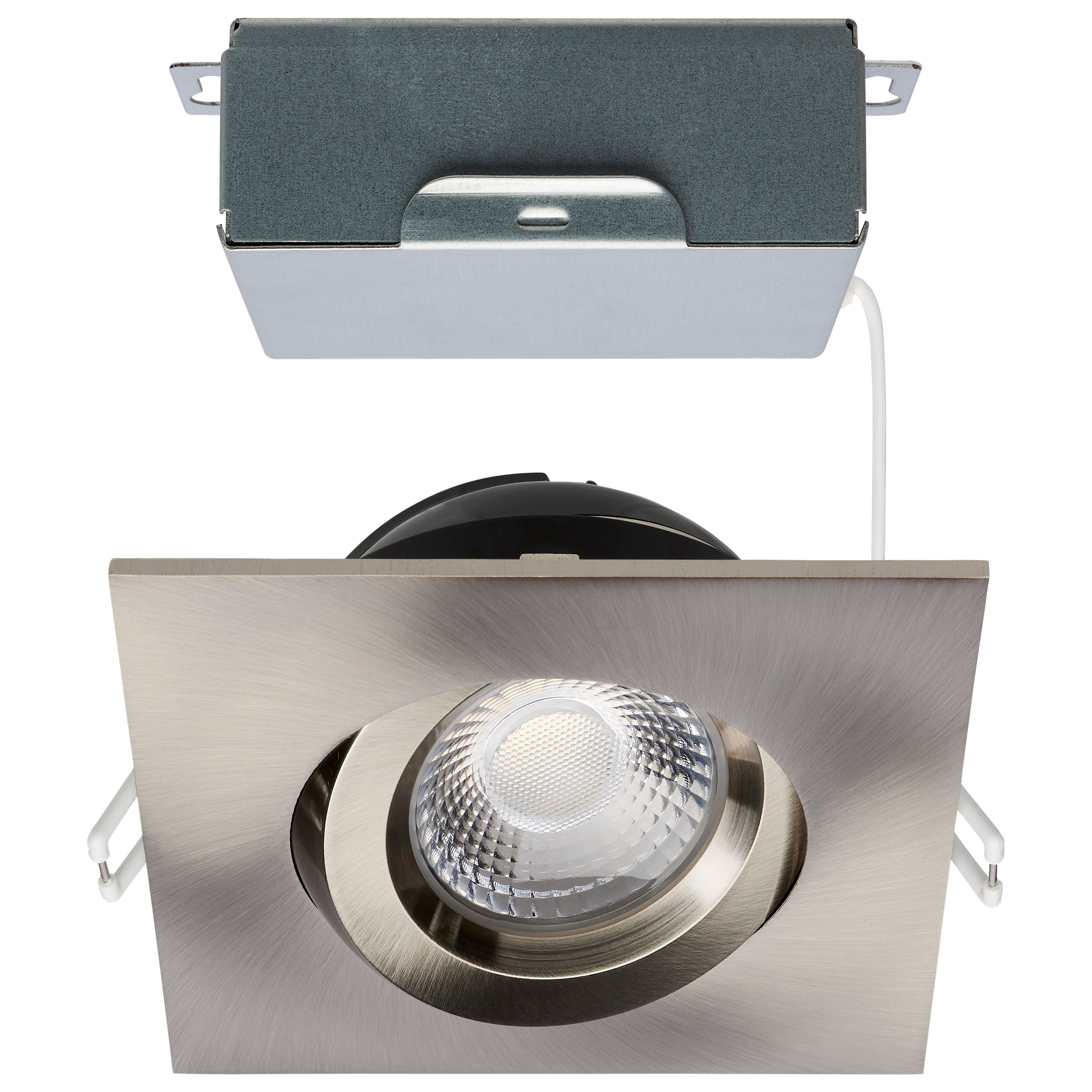

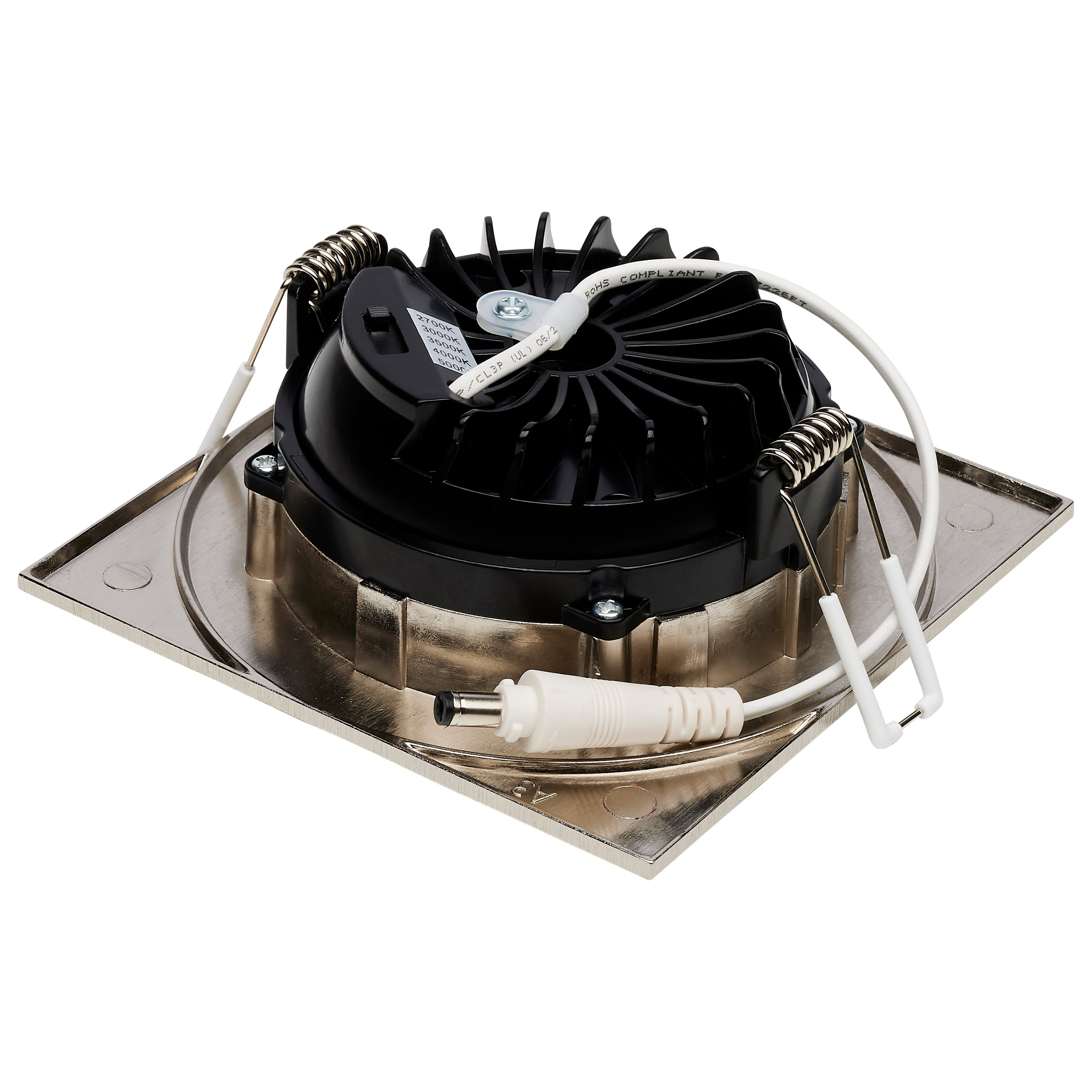

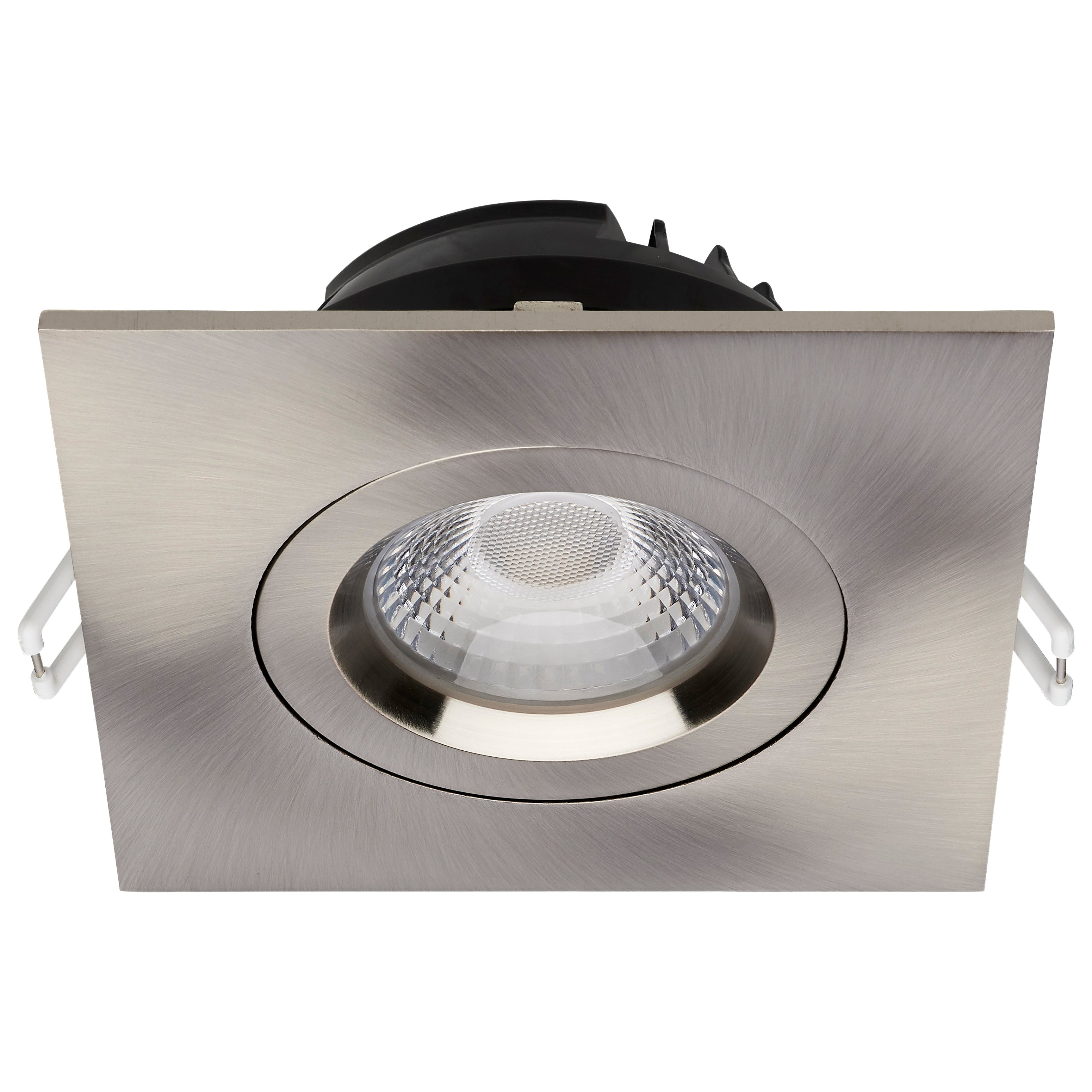

The SATCO S11623R1 is a 12 Watt LED Direct Wire Downlight, gimbaled and square, designed for recessed installation. This 4-inch fixture offers CCT selectable color temperatures (2700K-5000K) and delivers 850 lumens of light at 120 Volts. It features a remote driver and a brushed nickel finish, suitable for both indoor and outdoor wet locations. The downlight provides focused illumination with 360-degree rotation and 30-degree tilt, making it ideal for accent lighting or general ceiling applications.
- Gimbaled design with 360-degree rotation and 30-degree tilt for directional lighting.

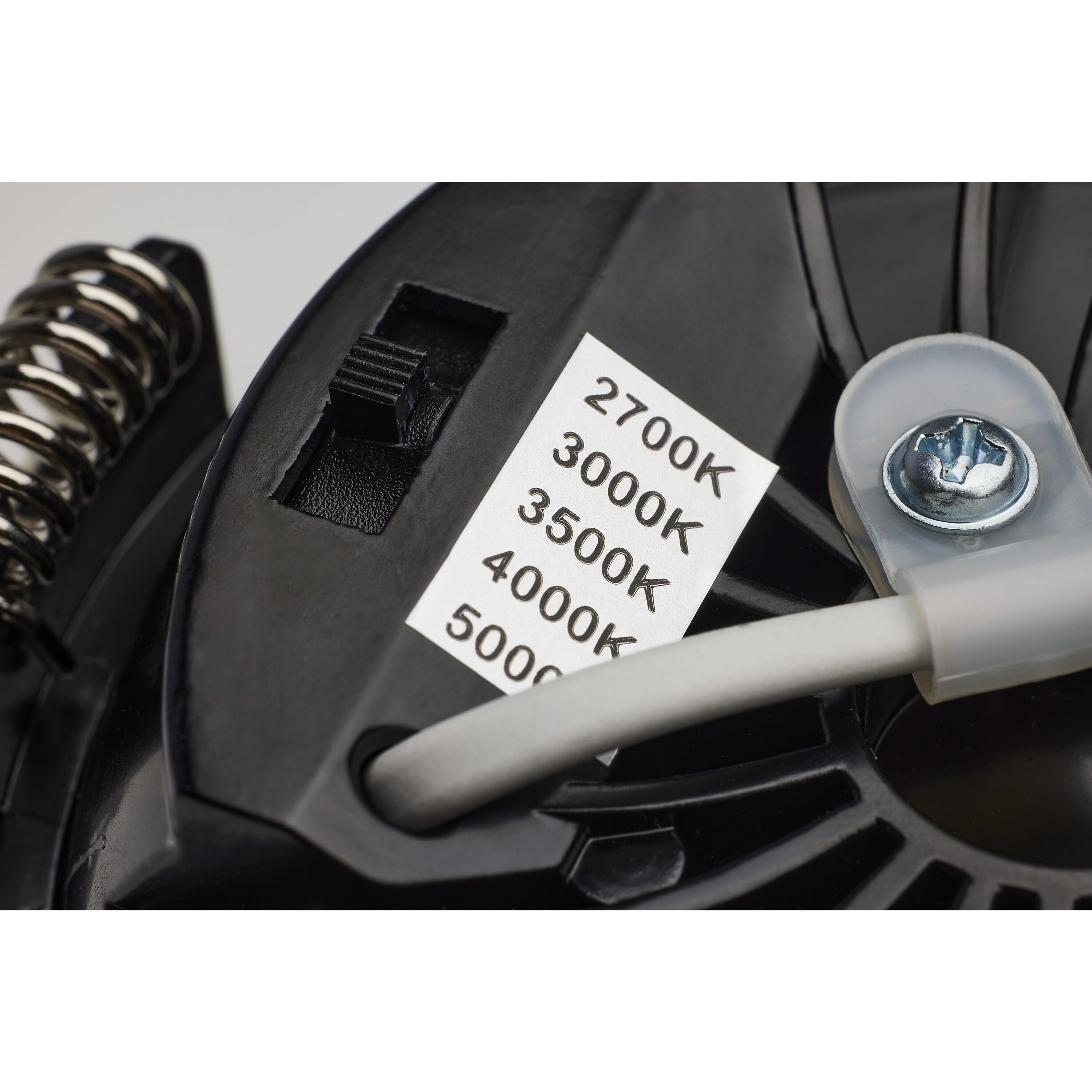

- CCT Selectable (2700K/3000K/3500K/4000K/5000K) and Dimmable (120V, Phase cut) for versatile lighting control.
- IC Rated, Wet Location Rated, and Air Tight, ensuring safe and durable performance in various environments.
Product Highlights
This 12W LED direct wire downlight offers CCT selectable lighting, 850 lumens, and a gimbaled design for adjustable, focused illumination in wet locations.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11623R1
-
Country of Origin: Vietnam
Technical Specifications
-
Brand: SATCO
-
Bulb Included: Integrated
-
Material: Aluminum
-

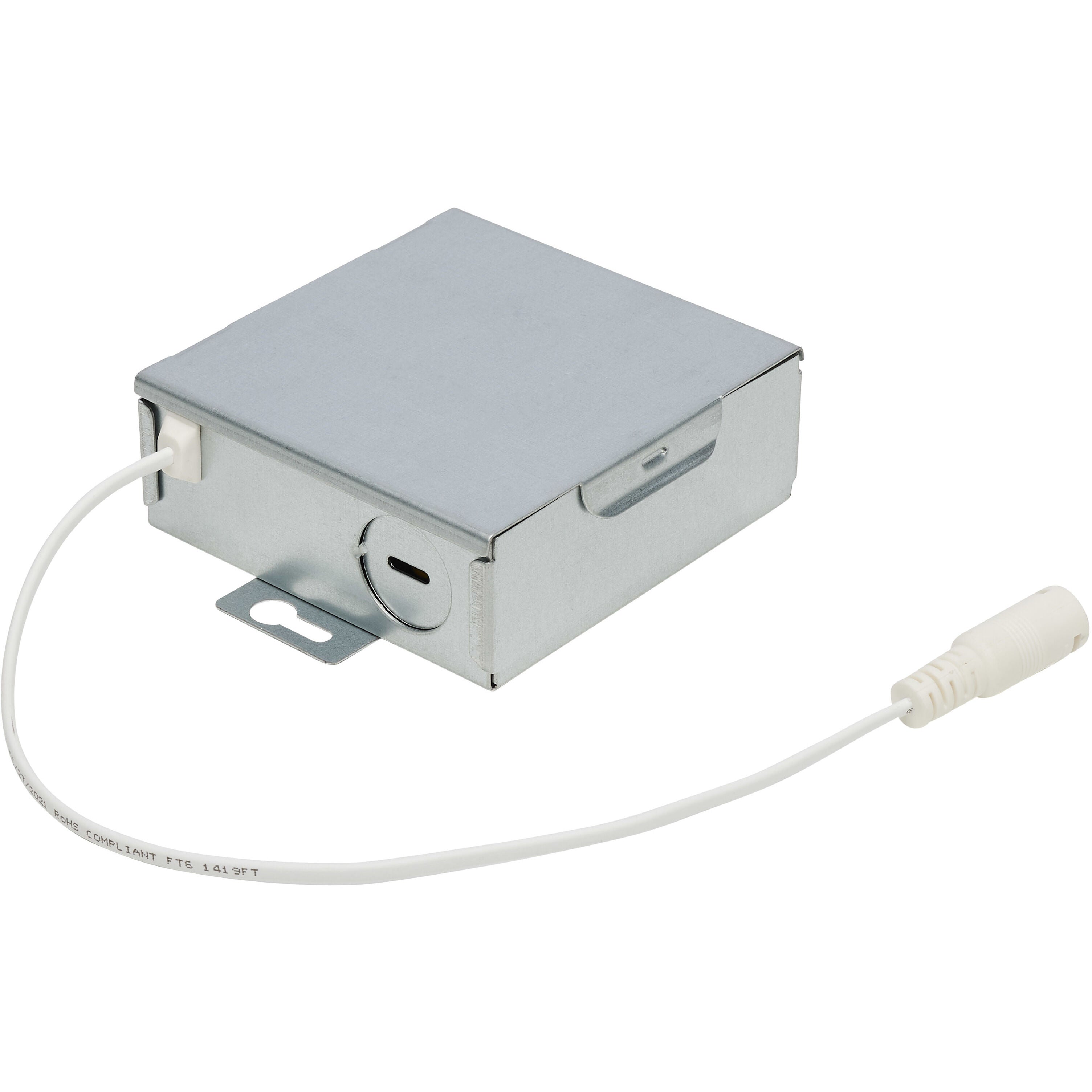

Fixture Type: Remote Driver LED Downlight
-
Status: Active
-
Style: Utility
-
Surge Protection: 1.5KV Built-in
-
THD: <30%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: Nickel
-
Rotation: 360 Degree
-
Tilt: 30 Degree
-
Amperage: 0.100A
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Power Factor: >0.9
-
Location: Indoor/Outdoor
-
Technology: LED
-
Bulb Count: 1
-
Incandescent Equivalent: 75W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 Hours
-
Beam Angle: 40 Degree
-
Color of Light: Warm White to Natural Light
-
CRI: 90+
-
Dimming Type: 120V Phase Cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -20C to +45C (-4F to +113F)
-
Lumens: 850
-
Voltage: 120V
-
Wattage: 12W
-
Lamp Base: Integrated
-
Finish: Brushed Nickel
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Square
-
Air Tight: Yes
-
CA Prop 65: Lead
-
FCC Compliant: Yes
-
IC Rated: Yes
-
Location Rating: Wet
-
RoHS Compliant: Yes
-
Safety Listing: cETLus Listed
-
California T24 Listed: Yes
-
DLC Approved: No
-
Energy Star Certified: No
-
Title 20: Exempt
-
T24/JA8 Compliant: Yes
-
Product Category: Recessed Direct Wire
-
Downlight Diameter: 4 inches
-
Downlight Type: Gimbal
-
Connection: Direct Wired
-
Mounting Type: Recessed Direct Wire
-
Replaces MPN: S11623
-
Ceiling Cutout: 4.25 inches
-
Voltage Type: AC Only
