Satco S11293 9W LED Gimbal Downlight 4 Inch RGB & Tunable White

Brand: SATCO
SKU: S11293
Availability: Out Of Stock
$56.09
$56.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

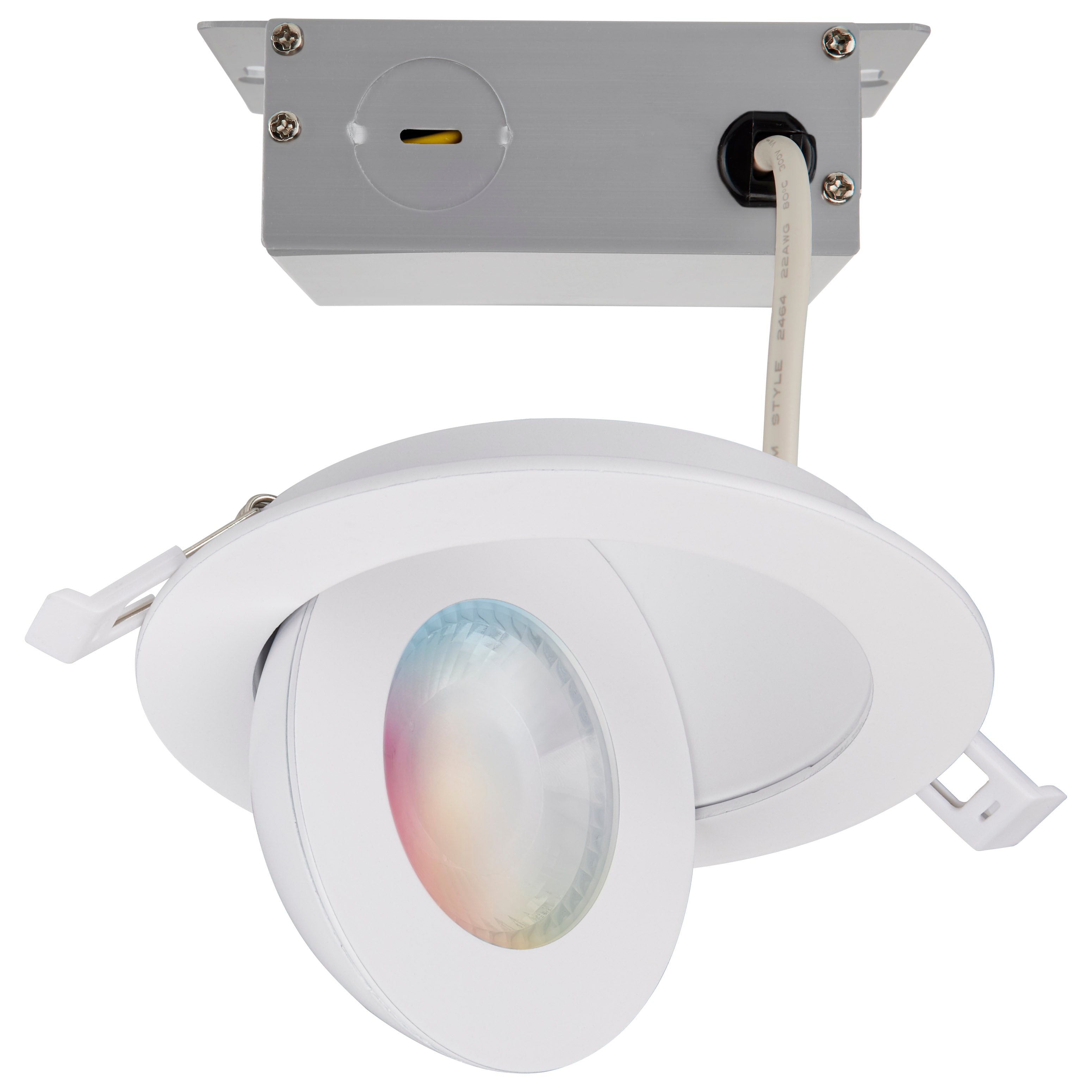

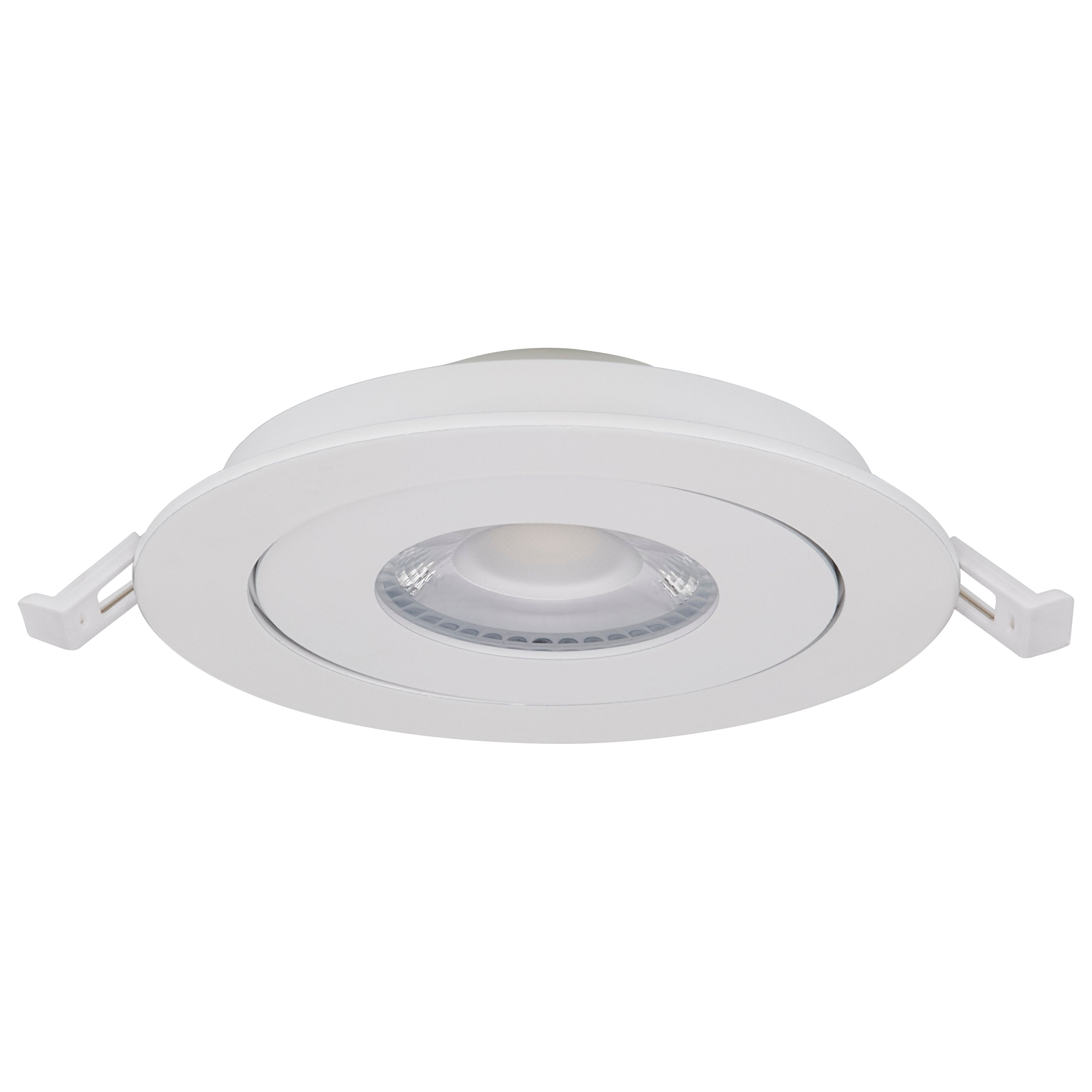

The SATCO S11293 is a 9W LED gimbaled downlight with a 4-inch diameter, offering both RGB and tunable white lighting options. This Starfish IOT enabled downlight features a white finish and provides 650 lumens of light output, operating within a 120-277 Volt range. Ideal for creating customized lighting environments.

  • LED technology for energy efficiency and long life
  • Dimmable with Starfish App
  • RGB and tunable white light options for versatile lighting

Product Highlights

Smart, efficient, and customizable lighting solution for modern spaces.

Product Information

Standard Information

  • Brand: SATCO
  • Manufacturer Part Number: S11293
  • Country of Origin: China
Technical Specifications
Company
SATCO
Bulb Included
Integrated
Starfish Communication Protocol
WiFi-2.4GHz
Diameter
4.92 in
Dimmable Text
Only with Starfish App
Material
Aluminum
Fixture Type
Downlight
Product Notes

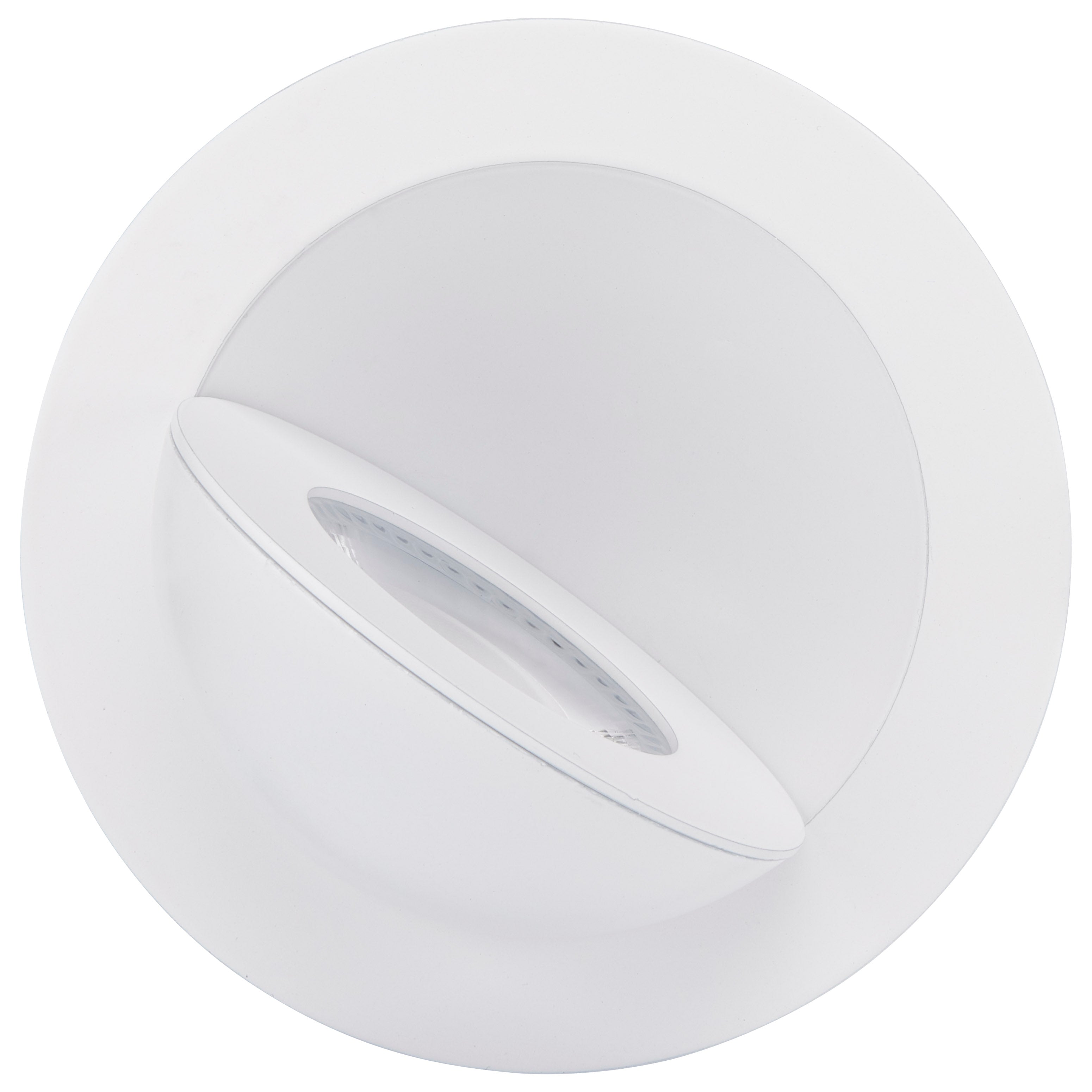

360 degree rotation; 0 to 80 degree aiming angle
Status
Active
Style
Contemporary Modern
Starfish Voice Assistants Supported
Alexa, Google Home, Siri, SmartThings
CCT Selectable
Yes
Wattage Selectable
No
Finish Family
White
Amps
0.075-0.032A
Has Camera
No
IOT Enabled
Yes
Lens Finish
Frost
Lens Material
Plastic
Power Factor
>0.9
SDS Class
LED_Fixture
Starfish Software Supported
Tuya/Starfish App
Indoor Outdoor
Indoor
Product Technology
LED
Incandescent Equivalent
50W
CCT (Kelvin Temp)
2700K-5000K
Dimmable
Yes-Dimmable
Hours Rated
50000
Beam Angle (degree)
36
Color Temp
Warm to Cool White/Color Changeable
CRI
90+
Dimming Type
Smart-Starfish App only
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Lumens
650L
Volts
120V-277V
Watts
9W
Lamp Base
Integrated
Finish
WHITE
ANSI Base
Integrated
Lamp Type
Integrated LED
Fixture Shape
Round
Air Tight
Yes
CA Prop 65
Lead
FCC Compliant
Yes
IC Rated
Yes
IP Rating
IP42
Location Rating
Damp
ROHS Compliant
Yes
Safety Listing
cETLus - Listed
California Ban
California T24 Listed
DLC Approved
No
Energy Star Certified
No
Title 20
Exempt
T24 Compliant
Yes
Brand
Satco | Nuvo
Brand Category
Direct Wire Recessed
Brand Product Description
9W LED Gimbal DL 4 in. RGB & Tune White Rnd Starfish IOT White 650L 120-277V
Voltage
277
Wattage Max
9.00
Height
1.44 in
Width
4.92 in
ADA
Yes
Energy Star
Yes
Prop 65
Yes
Title 24
Yes
UL Ratings
cETLus Damp
Integrated LED
Y
RGB, color changing & tunable white
STARFISH smart enabled product
SMART Enabled
Y
Down Light Fixture
Y
Uplight Fixture
N
Hardwired Fixture
Y
Bulb Angle
36
Bulb Average Hours
50000
Supported Bulb Color Temp
Warm to Cool White\Color Changeable 2700-5000
Supported Bulb Spread
36
Slope Ceiling Ready
Yes
Fixture Slope Mount Included
No
Dimmer Range
100 to 10 percent
Electrical Amperage
0.075
Electrical Maximum Amperage
0.032A
Glass Features
Frost Polycarbonate (PC)
Shape
Round
Product Category
Recessed - Direct Wire
Manufacturer Part Number
S11293
UPC
045923112935
Input Voltage
120-277V
Color Temperature
RGB + CCT Tunable
Downlight Diameter
4"
Downlight Type
Gimbal, Smart / RGB
Color
White
Rated Hours
50,000 Hours
Dimensions Length/Depth
2.44 in
Lamp Source
LED
Base Type
Integrated
Bulb
LED
Lamp Color

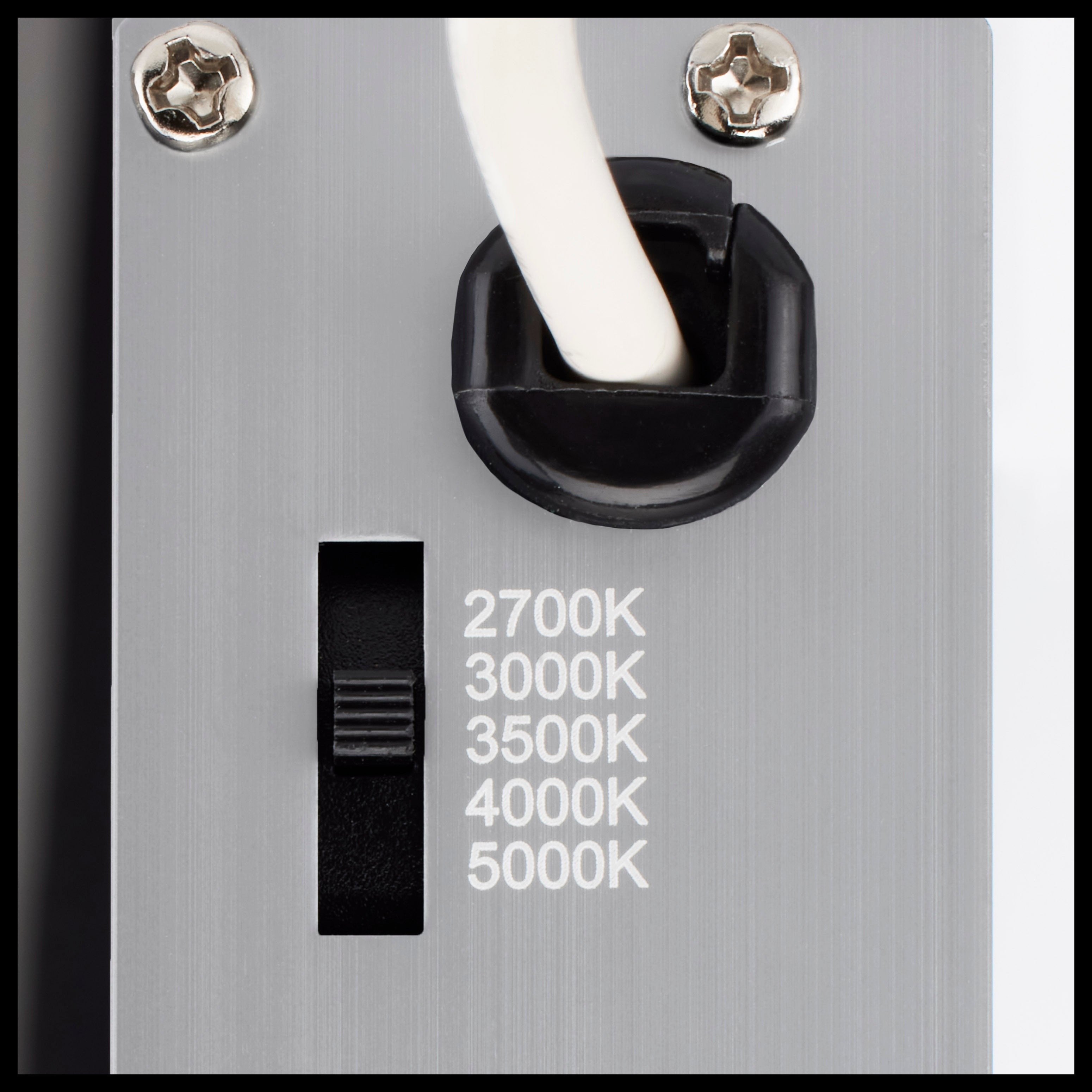

2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
650
Total Wattage
9W
Bulb Wattage
9W
MPN
S11293
Family
Starfish
Lamp Life
50000 hours
Product Rating
Damp
