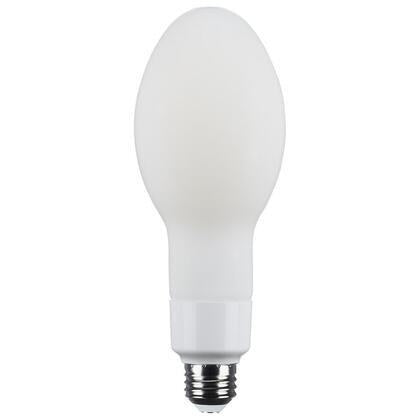

Satco-nuvo S13185 24W Led Hid Replacement ED23.5 5000K

Product Description

The SATCO-NUVO S13185 is a 24-watt LED HID replacement lamp in an ED23.5 bulb shape, designed to cut energy draw from 100 watts of HID down to 24 watts while delivering 4000 initial lumens at 5000K daylight color temperature. It screws directly into a standard medium E26 base and operates ballast-bypass on 120 to 277 volts with no external driver or ballast required. A white finish diffuses glare in open fixtures, and the 320-degree beam distribution replicates the broad throw pattern of the HID sources it replaces. Rated IP65, this lamp is approved for wet locations and burns in any position. Licensed electricians and lighting maintenance techs are the typical installers.

The S13185 is suited for outdoor and commercial lighting applications including wall packs, post-top fixtures, and open canopy luminaires where direct HID-to-LED retrofits are needed without hardware changes. Its wide voltage range of 120 to 277 volts makes it compatible with both residential and commercial branch circuits. The 5000K color temperature supports high-visibility environments such as parking lots, walkways, loading docks, and building perimeters. The lamp is non-dimmable and intended for installations that do not require dimming control.

Key Features

• 24-watt LED draws roughly 76 percent less energy than a comparable 100-watt HID source
• 4000 initial lumens at 5000K daylight color temperature with 80 CRI
• Ballast-bypass design operates directly on 120 to 277 volts with no driver or ballast needed
• 320-degree beam angle replicates HID throw pattern in open fixtures
• IP65 wet location rated, burns in any position
• Rated 50,000 average hours of service life with a 5-year warranty

Compatibility

Designed as a direct ballast-bypass HID replacement for fixtures equipped with a medium E26 base, including wall packs, post-top luminaires, and open canopy fixtures operating on 120 to 277 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and confirm power is off at the breaker before removing the existing lamp and bypassing or removing the ballast. Because this lamp is ballast-bypass, any existing ballast must be disconnected or removed prior to installation to avoid damage to the lamp. Verify the fixture socket is rated for an E26 medium base before completing the retrofit.
