Product Description

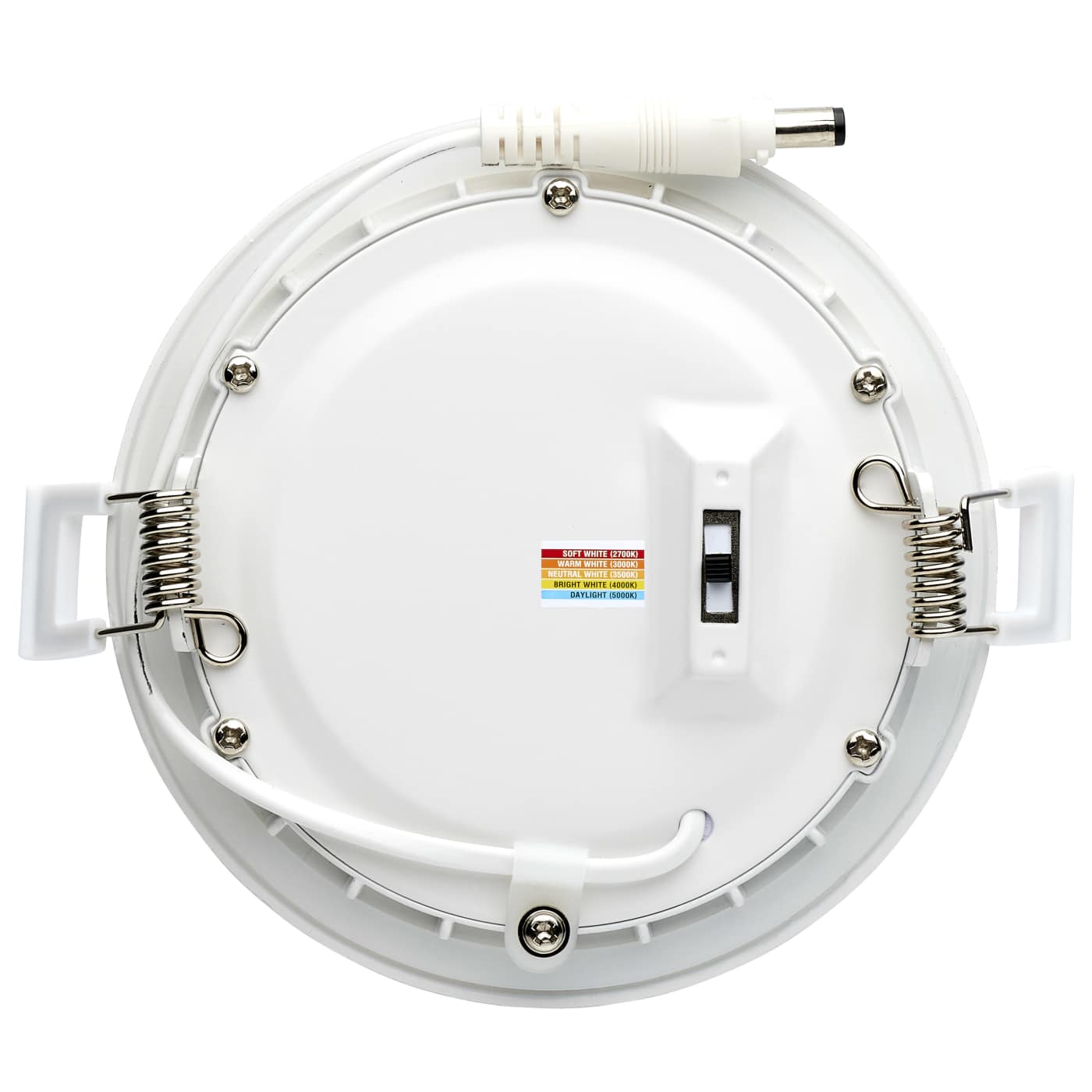

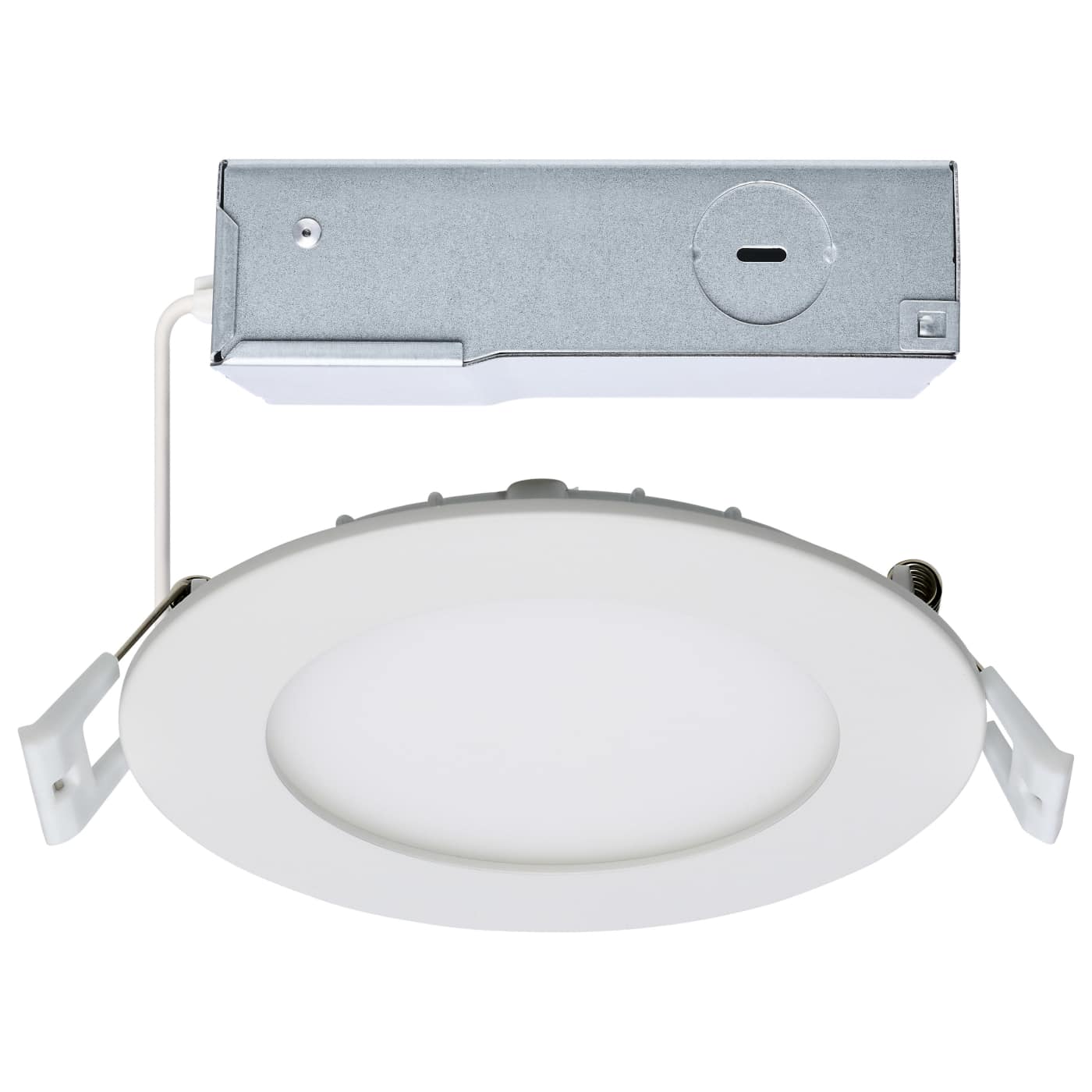

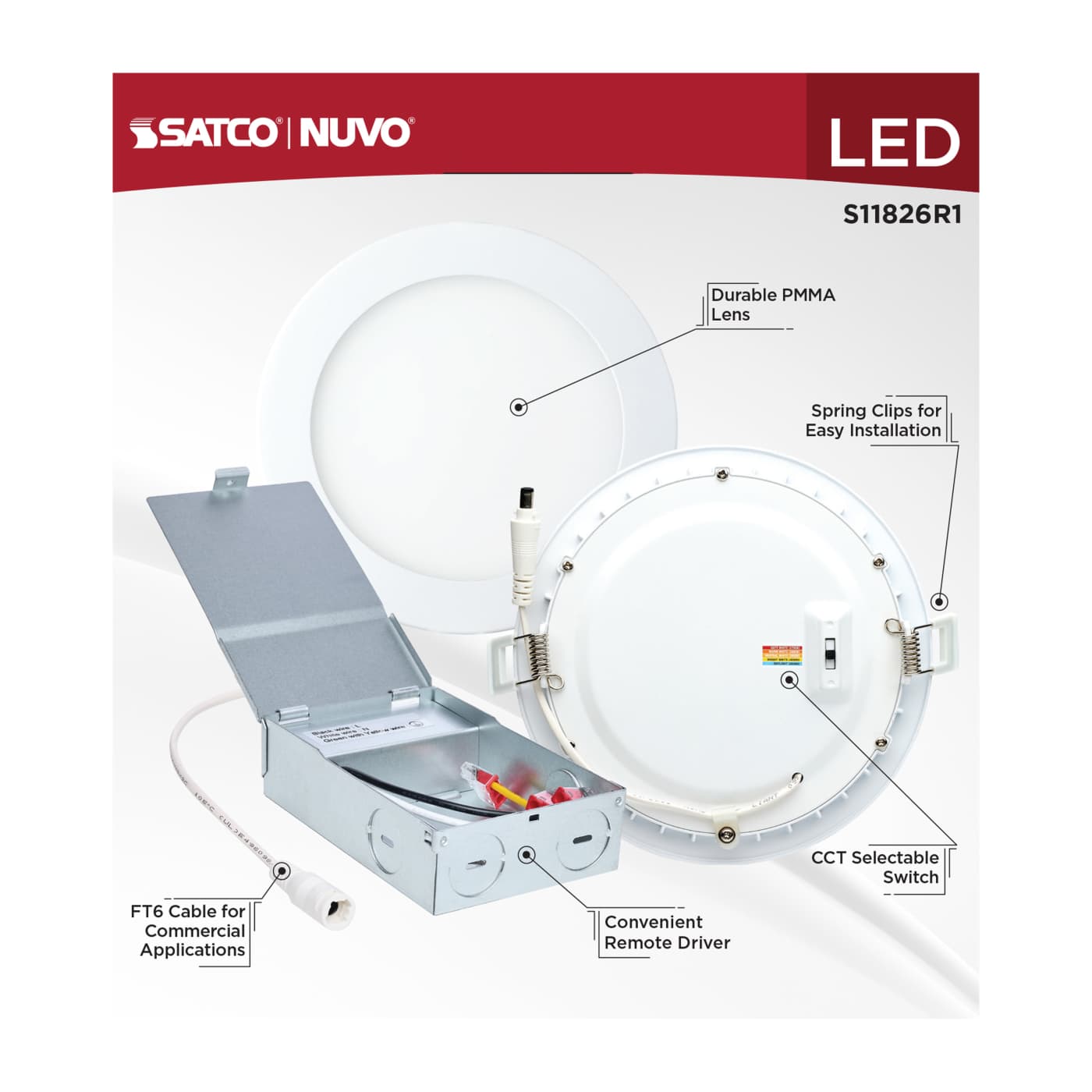

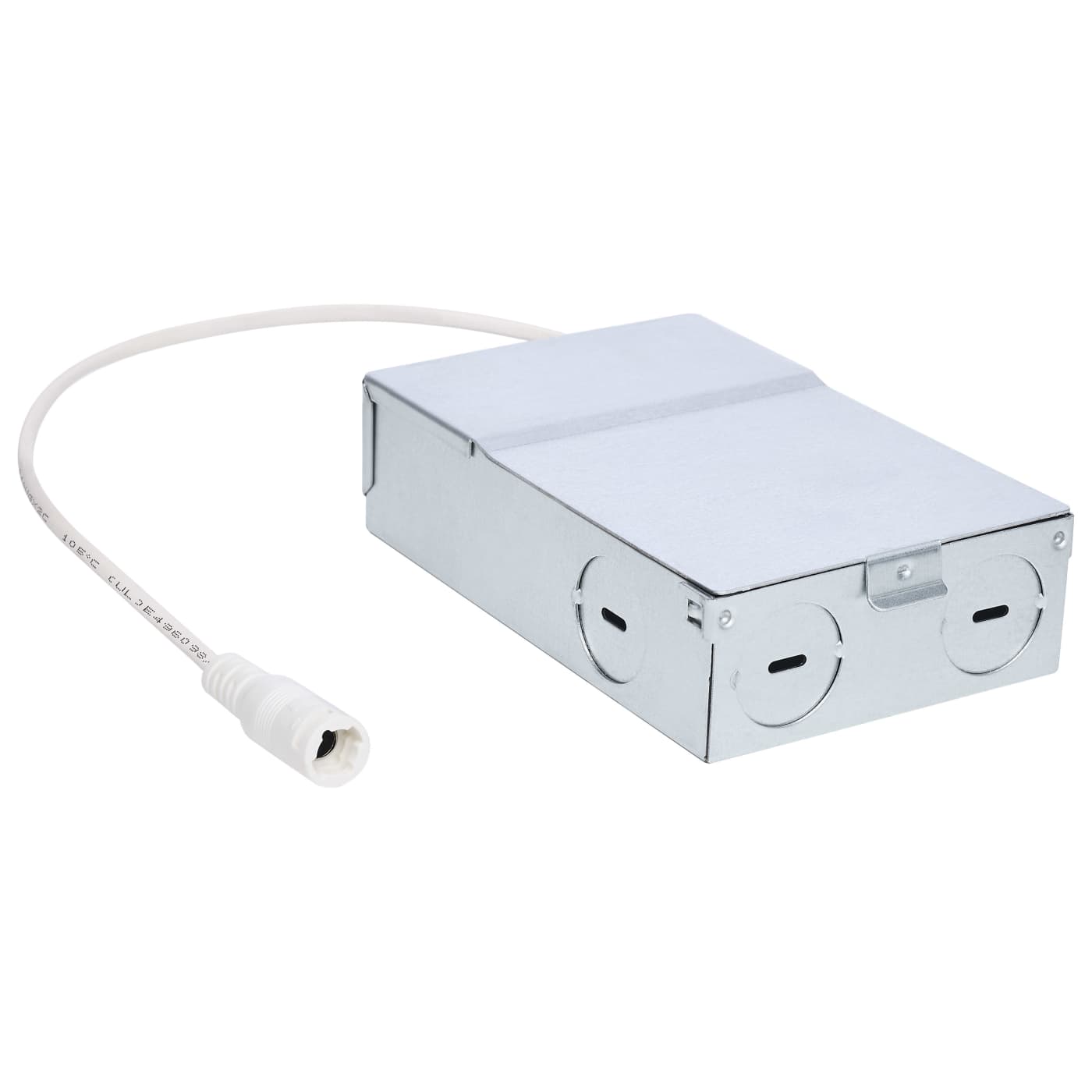

The SATCO-NUVO S11826R1 is a 10 Watt LED Direct Wire Downlight, featuring an edge-lit, 4-inch, round design with a remote driver. This CCT selectable downlight offers five color temperature choices for versatile lighting. It is IC rated and airtight, providing a 90 CRI for accurate color rendering. Designed for ceilings with limited clearance, this slim-profile fixture is suitable for both indoor and outdoor use, including clothes closets, and has a 50,000-hour lifespan.
- CCT Selectable (2700K-5000K) for customizable lighting environments.
- IC Rated, Air Tight, and Wet Location Rated for versatile and safe installation.
- Dimmable with 90+ CRI and a long 50,000-hour rated life for quality illumination.
Product Highlights
Edge-lit 4-inch round LED downlight with CCT selectable feature and remote driver, suitable for wet locations.
Product Information
Standard Information
-
Brand: SATCO-NUVO
-
Manufacturer Part Number: S11826R1
-
Country of Origin: China
Technical Specifications
-
Mounting Height: 2.28
-
Mounting Length: 4.25
-
Bulbs Included: Integrated
-
Center Beam Candle Power: 330
-

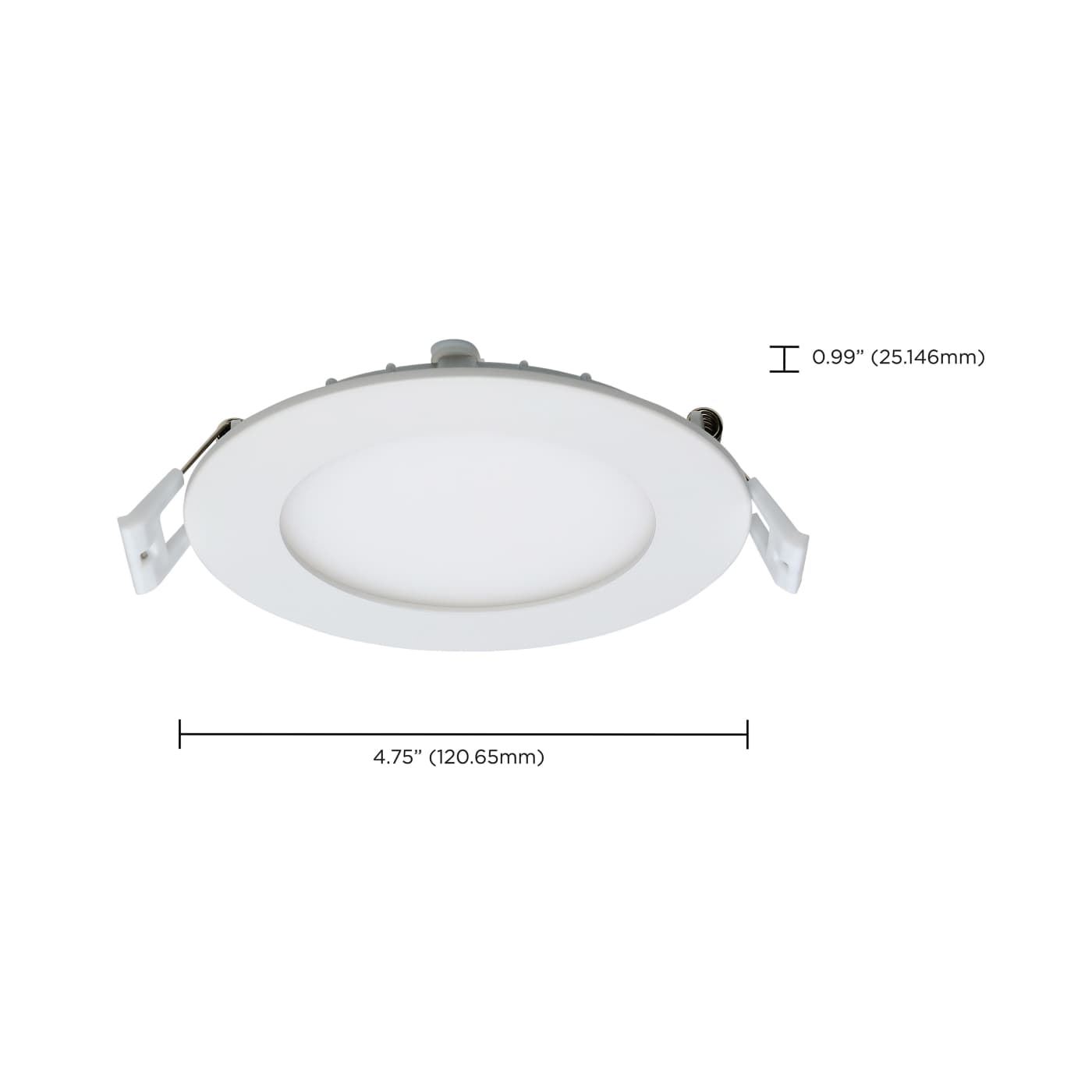

Diameter: 4.75
-
Material: Aluminum
-
Fixture Type: Direct Wire LED Downlight
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish: White
-
Amps: 0.100A
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Nominal Length: 4.0
-
Power Factor: >0.9
-
Sloped Ceiling Compatible: Yes
-
Indoor Outdoor: Indoor and Outdoor
-
Technology: LED
-
Incandescent Equivalent: 65W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: Linear Dimming, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -20C to +45C
-
Lumens: 850
-
Input Voltage: 120V
-
Wattage: 10W
-
Bulb Type: Integrated LED
-
Fixture Shape: Round
-
Air Tight Rated: Yes
-
FCC Compliant: Yes
-
IC Rated: Yes
-
Safety Rating: Wet
-
ROHS Compliant: Yes
-
Safety Listing: cETLus
-
Energy Star Certified: Yes
-
Title 24 Compliant: Yes
-
Bulb Base: Integrated
-
Connection Type: Hardwire
