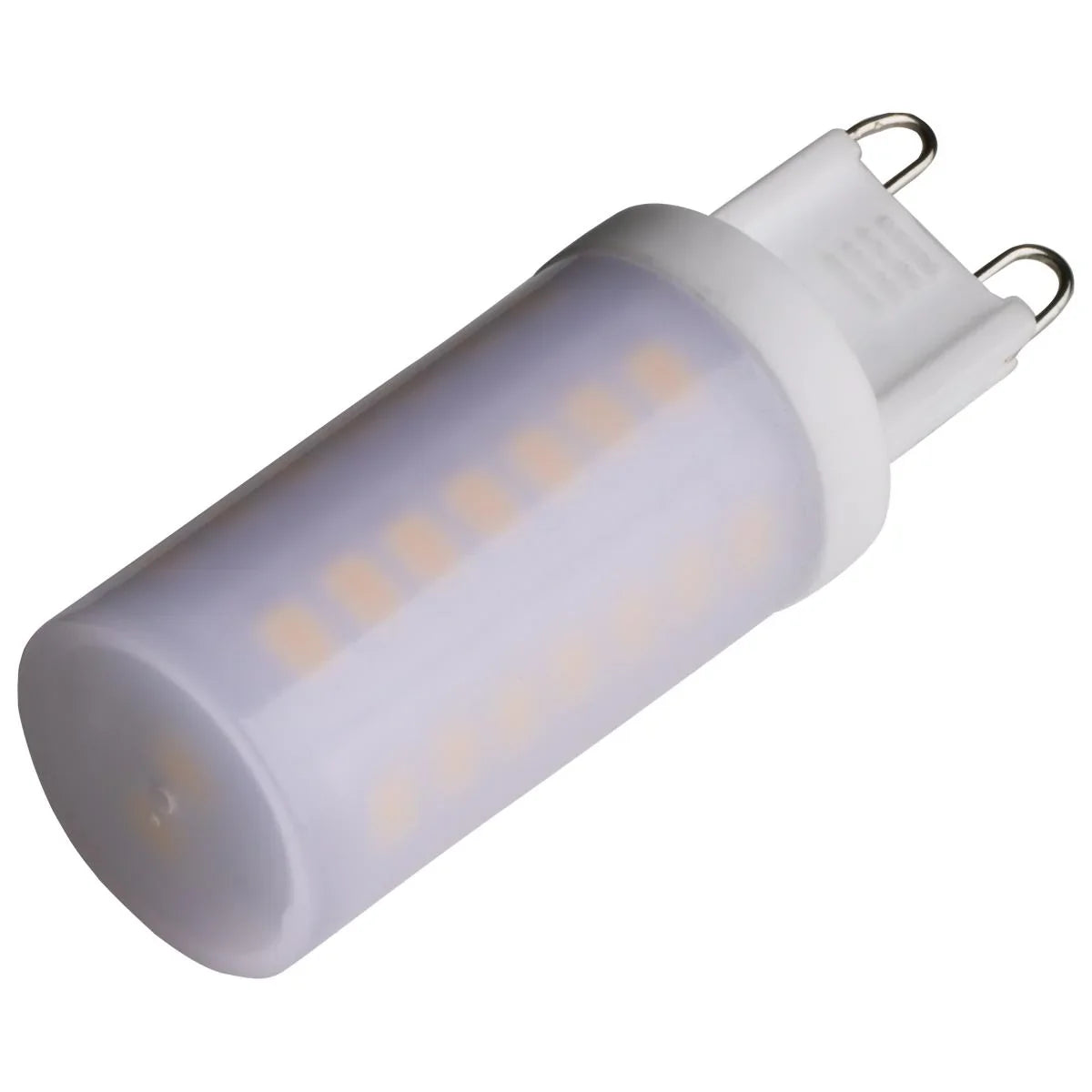

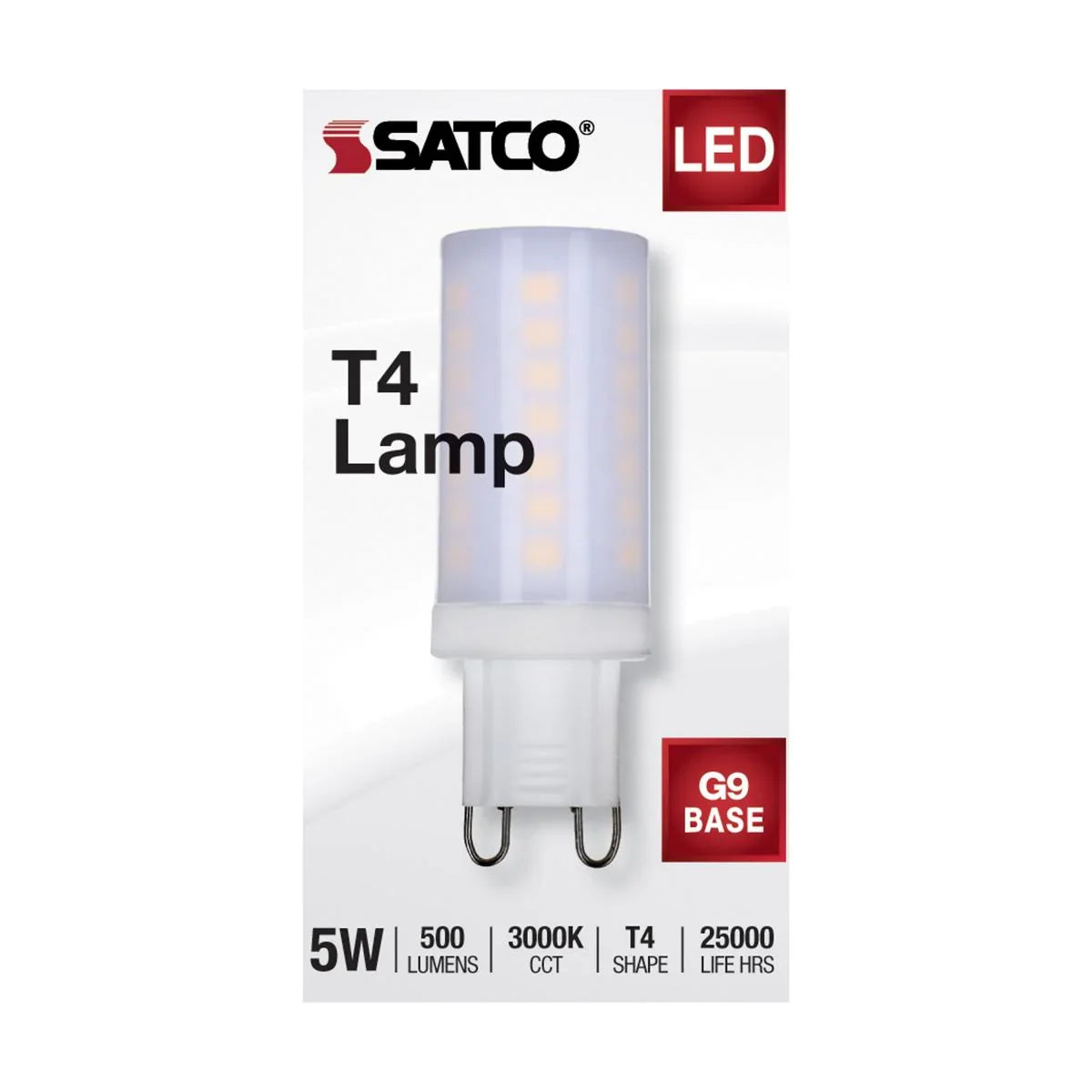

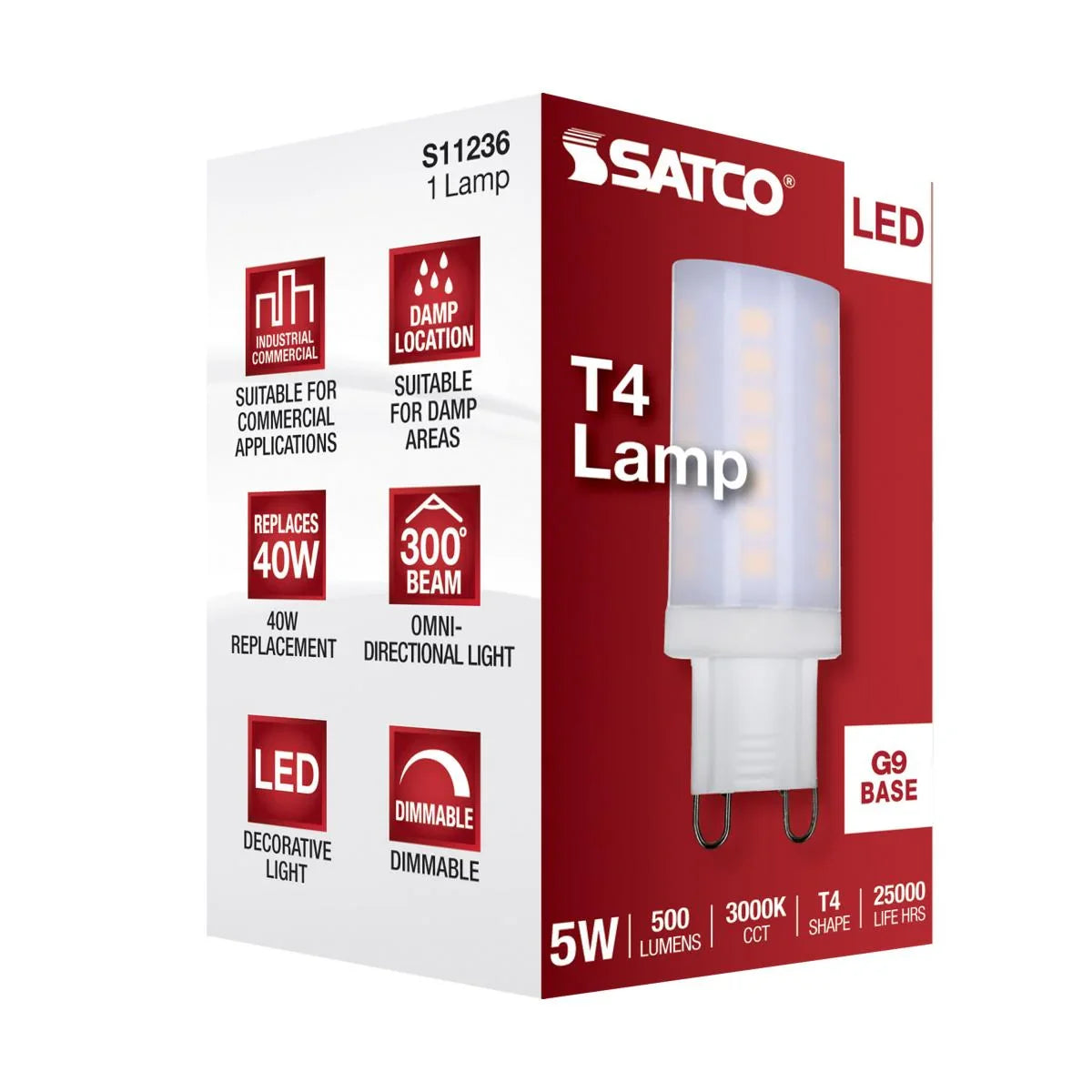

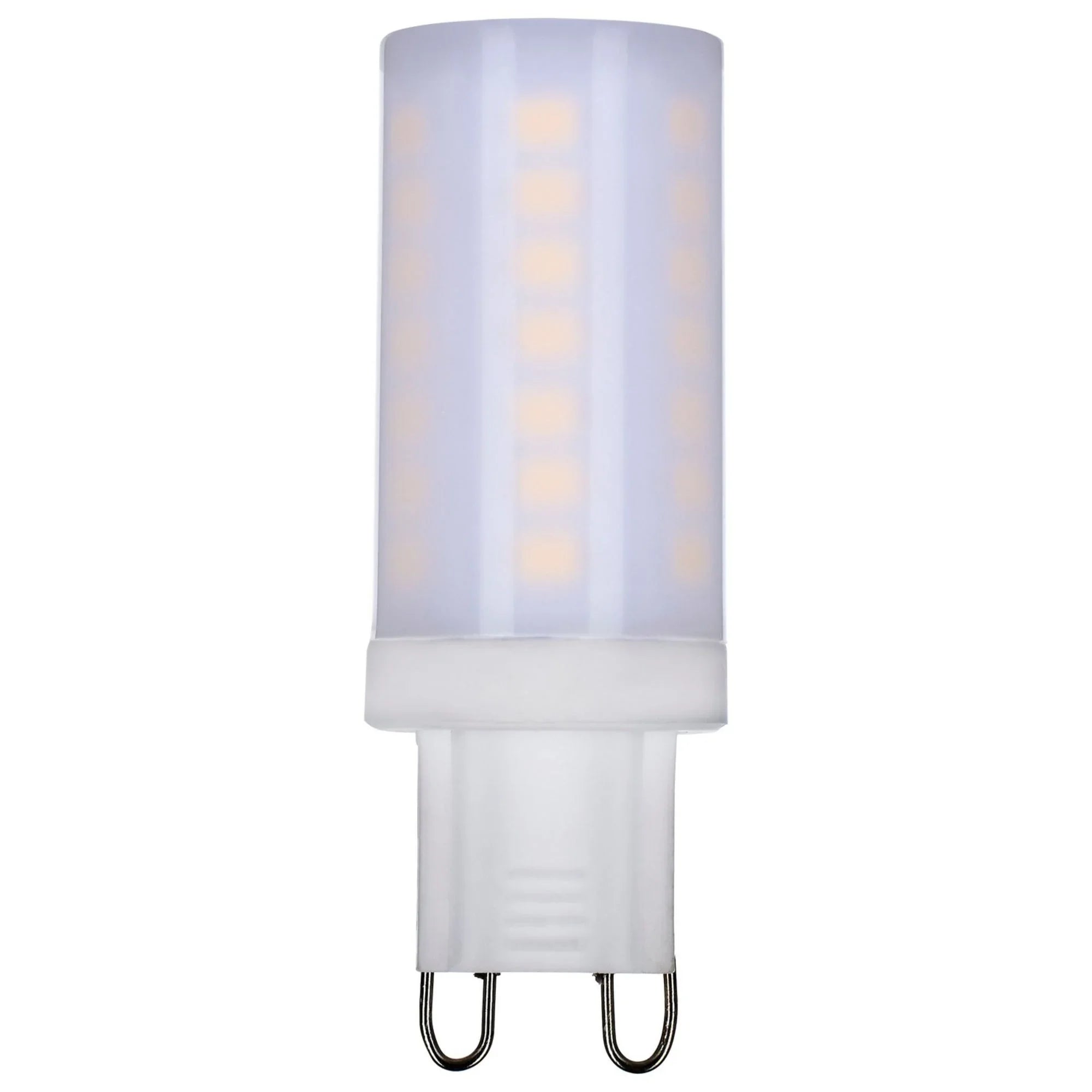

Satco-Nuvo S11236 LED lamp 5W T4 G9 base halogen replacement

Product Description

The SATCO-NUVO S11236 is a 5W LED lamp designed as a halogen replacement. This T4 mini LED bulb with a G9 base operates at 120V, providing 500 lumens of 3000K soft white light. It delivers 300 degrees of omni-directional light, suitable for decorative, accent, and general lighting in residential and commercial settings. The bulb is dimmable and damp location rated, making it versatile for various indoor and covered outdoor applications.

• 5W LED lamp with 500 lumens output and 3000K color temperature for soft white illumination.
• Features a G9 Double Loop base, 120V operation, and 300-degree omni-directional light distribution.
• Dimmable and damp location rated, suitable for various indoor and covered outdoor applications.

Product Highlights

Energy-efficient 5W LED halogen replacement with 25,000-hour lifespan for versatile lighting.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S11236
• Country of Origin: United States

Technical Specifications

• Brand: SATCO-NUVO
• MPN: S11236
• Technology: LED
• Wattage: 5W
• Voltage: 120V
• Frequency: 60Hz
• Bulb Shape: T4
• Bulb Base: G9 Double Loop
• Finish: Frost
• Color Temperature: 3000K
• Lumens: 500
• CRI: 80
• Beam Angle: 300 degrees
• Dimmable: Yes
• Average Lifetime: 25000 hours
• Incandescent Equivalent: 40 Watts
• Location Rating: Damp Location Rated
• Enclosed Fixture Rated: Yes
• Material: Ceramic / Polycarbonate (PC)
• Certifications: cULus Listed, RoHS Compliant, FCC Compliant
• Efficacy: 100 lm/W
• Max Operating Temperature: 40 C (104 F)
• Min Operating Temperature: -20 C (-4 F)
• Length: 2.13 in
• Diameter: 0.75 in
• Burning Position: Universal
• Candle Power: 45
• CCT Selectable: No
• Dimming Type: Forward Phase or Reverse Phase or Phase Selectable or Triac
• DLC Approved: No
• IP Rating: IP20
• JA8 Compliant: No
• Lens Material: Plastic
• Power Factor: 0.9
• R9 Value: 2
• Title 20 Compliant: Exempt
• Title 24 Compliant: No
• Total Harmonic Distortion: 70%
• Wattage Selectable: No
• Bulb Type: Mini and Pin-Based LED
