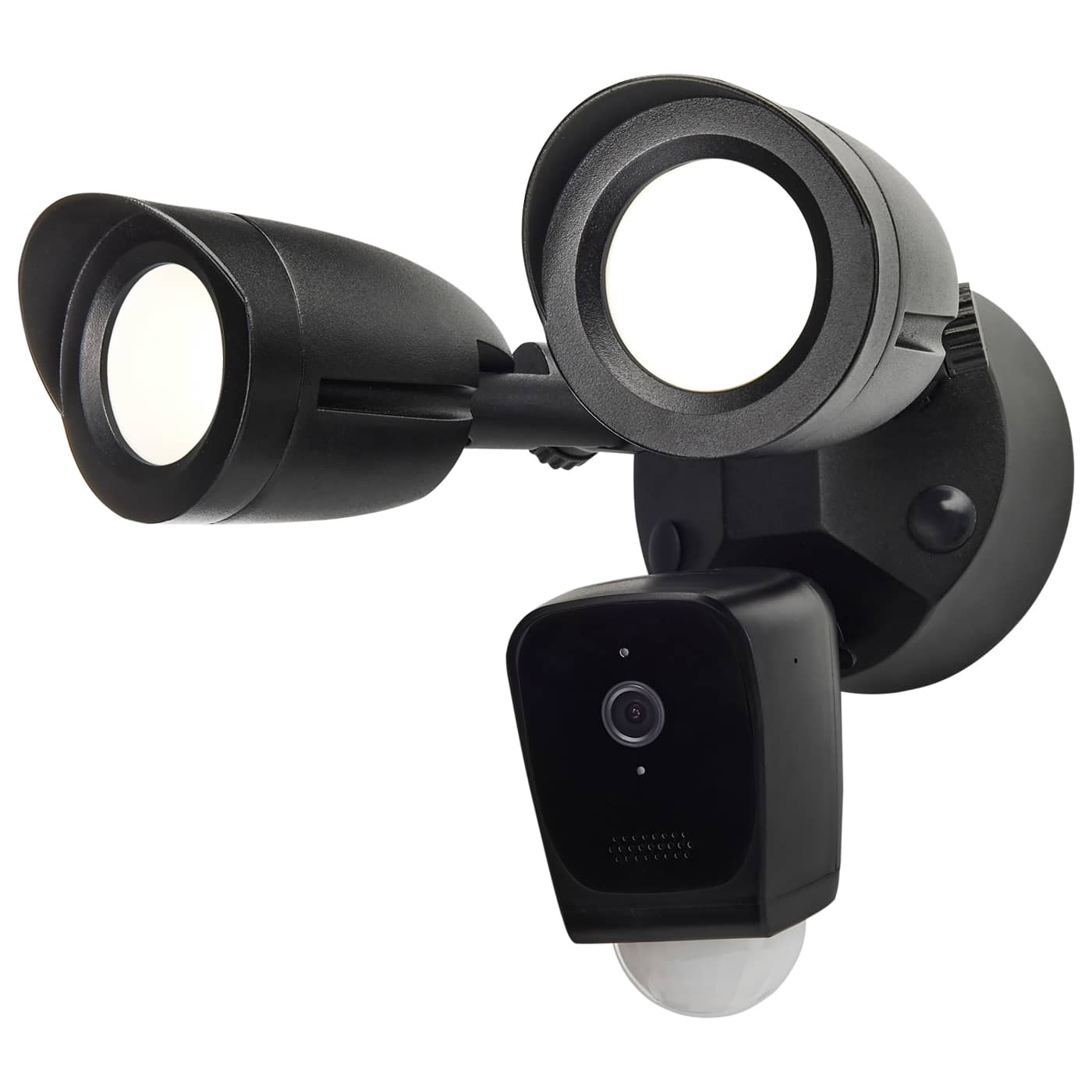

Satco-nuvo 65/901 Outdoor Smart Led Security Camera 20W

Product Description

The SATCO-NUVO 65/901 is an outdoor smart LED security light with an integrated 1080P camera, designed for commercial and residential perimeter lighting and surveillance applications. The fixture delivers 1900 lumens at 20 watts from an integrated LED source rated at 50,000 hours, with a color temperature of 3000K and a CRI of 80 or better. The integrated 1/2.9 color CMOS image sensor records at 1920x1080 resolution with H.264 compression and 3D Digital Noise Reduction. Starfish app-based dimming, two-way audio communication, and built-in 2KV surge protection make this a capable single-fixture solution for electricians installing smart outdoor security systems.

The 65/901 is built for outdoor installations and is suitable for both residential and light commercial security applications. It operates on 120V to 277V, making it compatible with standard single-phase branch circuits across a wide range of job sites. The fixture connects via 2.4GHz WiFi using 802.11b/g/n with WPA/WPA2 encryption and is managed through the Tuya/Starfish app backed by AWS Cloud Security Servers. A 32GB SD card is included for local storage, with support for optional SD cards up to 128GB. The die-cast aluminum body and frost glass lens are finished in black. It may be wired to recessed or external junction boxes.

Key Features

• Integrated 1080P camera at 15fps with 150-degree diagonal viewing angle and Digital Wide Dynamic Range
• Two-way audio communication with PCM audio compression
• Starfish smart dimming via app; compatible with AWS Cloud Security Servers and Tuya/Starfish platform
• Built-in PIR sensor for motion detection and built-in 2KV surge protection
• 32GB SD card included; supports optional SD cards up to 128GB maximum
• Die-cast aluminum housing rated for -4 degrees F to 140 degrees F operating range

Compatibility

The 65/901 is a Starfish-enabled IoT fixture controlled exclusively through the Tuya/Starfish app. For non-IoT versions of this fixture type, refer to part numbers 65-714, 65-715, 65-720, and 65-721.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for outdoor luminaires. Power down the branch circuit at the breaker before making any wiring connections. The fixture may be wired to recessed or external junction boxes. WiFi network configuration is completed through the Starfish app after the fixture is energized.

Technical Specifications

• Lumens: 1900
• Wattage: 20W
• Incandescent Equivalent: 100W
• Color Temperature: 3000K Warm White
• CRI: 80+
• Beam Angle: 50 degrees
• Voltage: 120V-277V
• Amperage: 0.167-0.072A
• Operating Frequency: 60Hz
• Rated Life: 50,000 hours
• Dimmable: Yes, via Starfish app only
• Camera Resolution: 1080P at 15fps; 1920x1080; 640x480 VGA
• Camera Image Sensor: 1/2.9 Color CMOS
• Camera Focal Length: 2.8mm
• Camera Viewing Angle: 150 degrees diagonal; 125 degrees horizontal; 85 degrees vertical
• Camera Image Compression: H.264
• Camera Audio: Two-way, PCM compression
• Camera Storage: 32GB SD card included; optional up to 128GB
• Camera Noise Reduction: 3D Digital Noise Reduction
• WiFi Protocol: 2.4GHz; 802.11b/g/n; WPA/WPA2; WPA-PSK/WPA2-PSK
• Surge Protection: Built-in 2KV
• PIR Sensor: Yes
• Operating Temperature: -4 degrees F to 140 degrees F (-20 degrees C to 60 degrees C)
• Operational Humidity: 20% to 85% non-condensing
• Extends: 9.45 inches
• Material: Die-cast Aluminum
• Lens Material: Glass (Frost)
• Finish: Black
• Lamp Type: Integrated LED
• Fixture Type: Outdoor Security Camera Light
• Warranty: 5 Years

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 65/901
