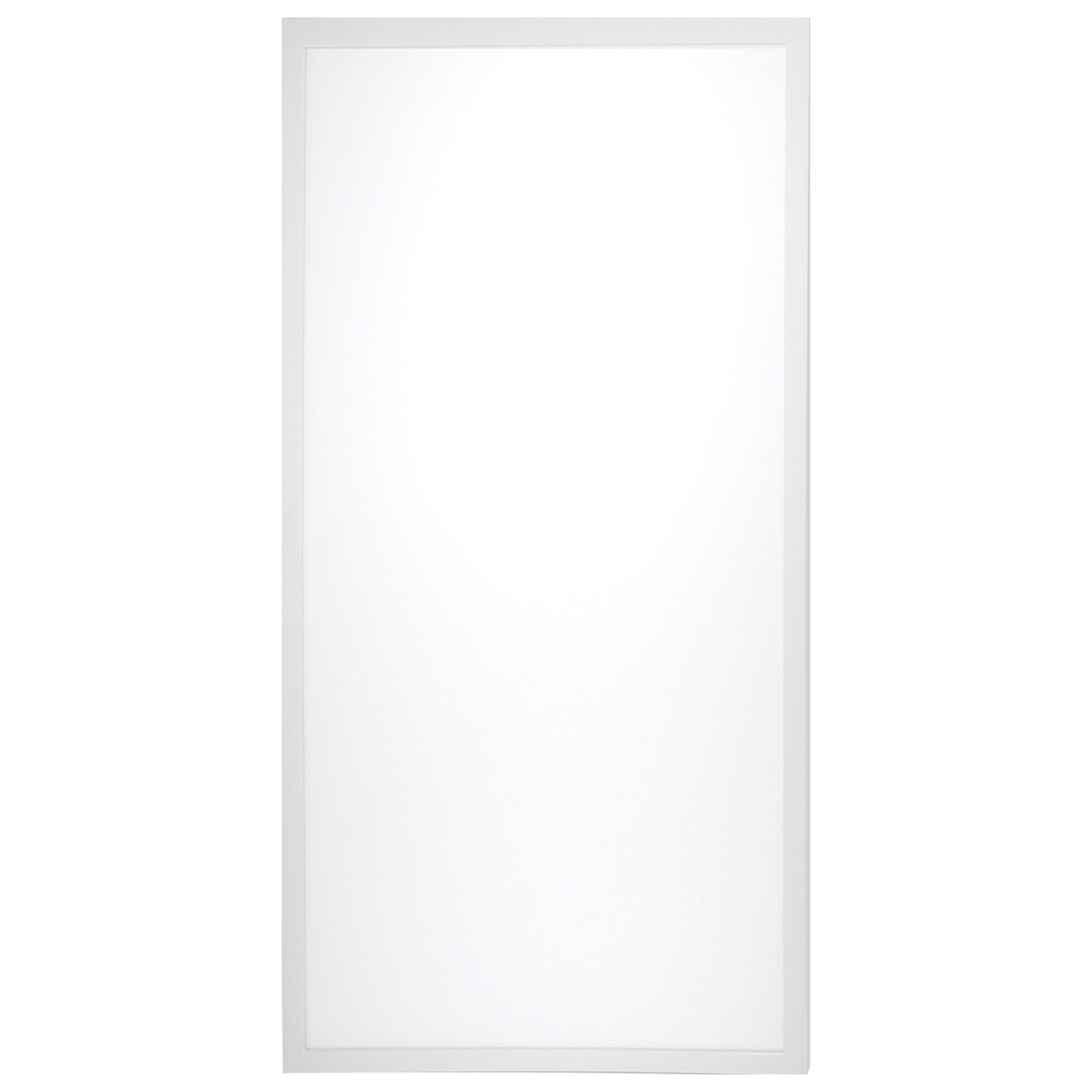

Satco-Nuvo 65/572R1 LED backlit flat panel 2 ft. x 4 ft. wattage and CCT selectable 120-277 volt

Product Description

The SATCO-NUVO 65/572R1 LED Backlit Flat Panel is a versatile lighting solution featuring ColorQuick and PowerQuick technologies. This fixture offers selectable wattage (30W, 40W, 50W) and CCT options (3500K, 4000K, 5000K), allowing for nine configurations at installation. It provides even, flicker-free light distribution, suitable for long-term task usage in offices, retail, education, and hospitality environments. The panel is 0-10V dimmable and designed for efficiency and a long, maintenance-free operational life.

• 3500K/4000K/5000K CCT Selectable
• 30W/40W/50W Wattage Selectable
• 0-10V Dimmable

Product Highlights

Features ColorQuick and PowerQuick technologies for customizable light output and color temperature.

Product Information

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: 65/572R1
• Country of Origin: Vietnam

Technical Specifications

• Input Voltage: 100-277V
• Application: Indoor
• Product Type: Backlit Flat Panel
• Location Rating: Damp
• Operating Frequency: 50-60 Hz
• Beam Angle: 120 degrees
• Material: Steel, Aluminum
• Color Temperature: 3500K, 4000K, 5000K selectable
• Lamp Base: Integrated
• CRI: 80+
• Fixture Shape: Rectangle
• Dimming: Yes
• Finish: White
• Replaceable Light Source: No
• Incandescent Equivalent: 150W-175W
• Mounting Type: Ceiling
• Power Method: Hardwired
• Power Consumption: 30W, 40W, 50W selectable
• Lamp Type: Integrated LED
• Wire Length: 3.54 inches
• Luminous Flux: 3300-5750 lumens selectable
• Technology: LED
• Operating Temperature: 1.4°F to 113°F (-17°C to 45°C)
• Style: Utility
• Energy Star Rated: No
• CCT Selectable: Yes
• Surge Protection: 2KV
• Total Harmonic Distortion: 10.50%
• Wire Color: White, Black, Green
• Wattage Selectable: Yes
• Driver Specifications: VDC 38-48V; 630/810/1030mA
• Current: 0.108-0.417A
• Lens Finish: Frost
• Lens Material: Poly methyl methacrylate (PMMA)
• Photocell: No
• Power Factor: 0.9
• Rated Life: 50000 hours
• Dimming Type: 0-10V
• Certifications: FCC Compliant, RoHS Compliant, NSF, cETLus
• DLC Listed: Yes
