Product Description

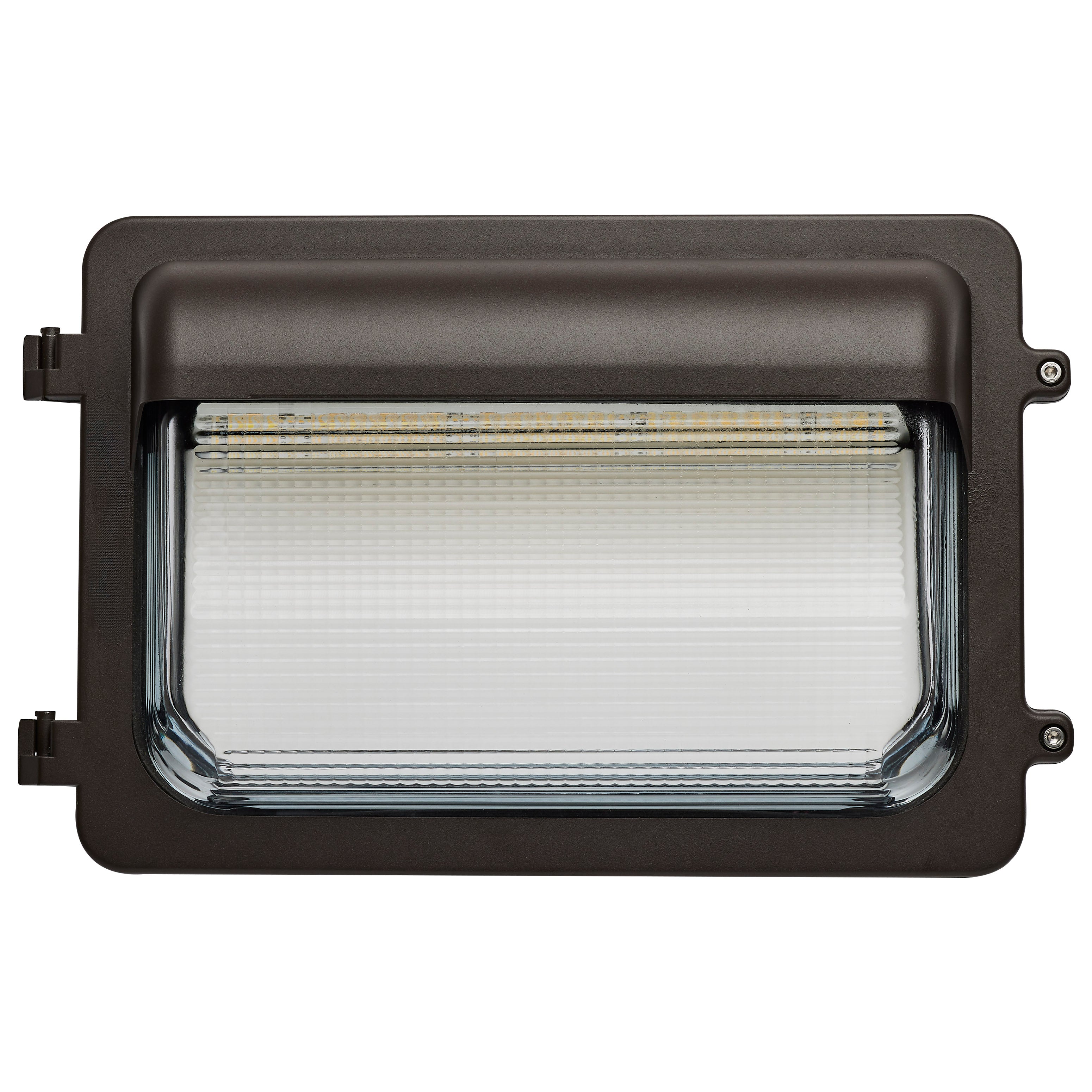

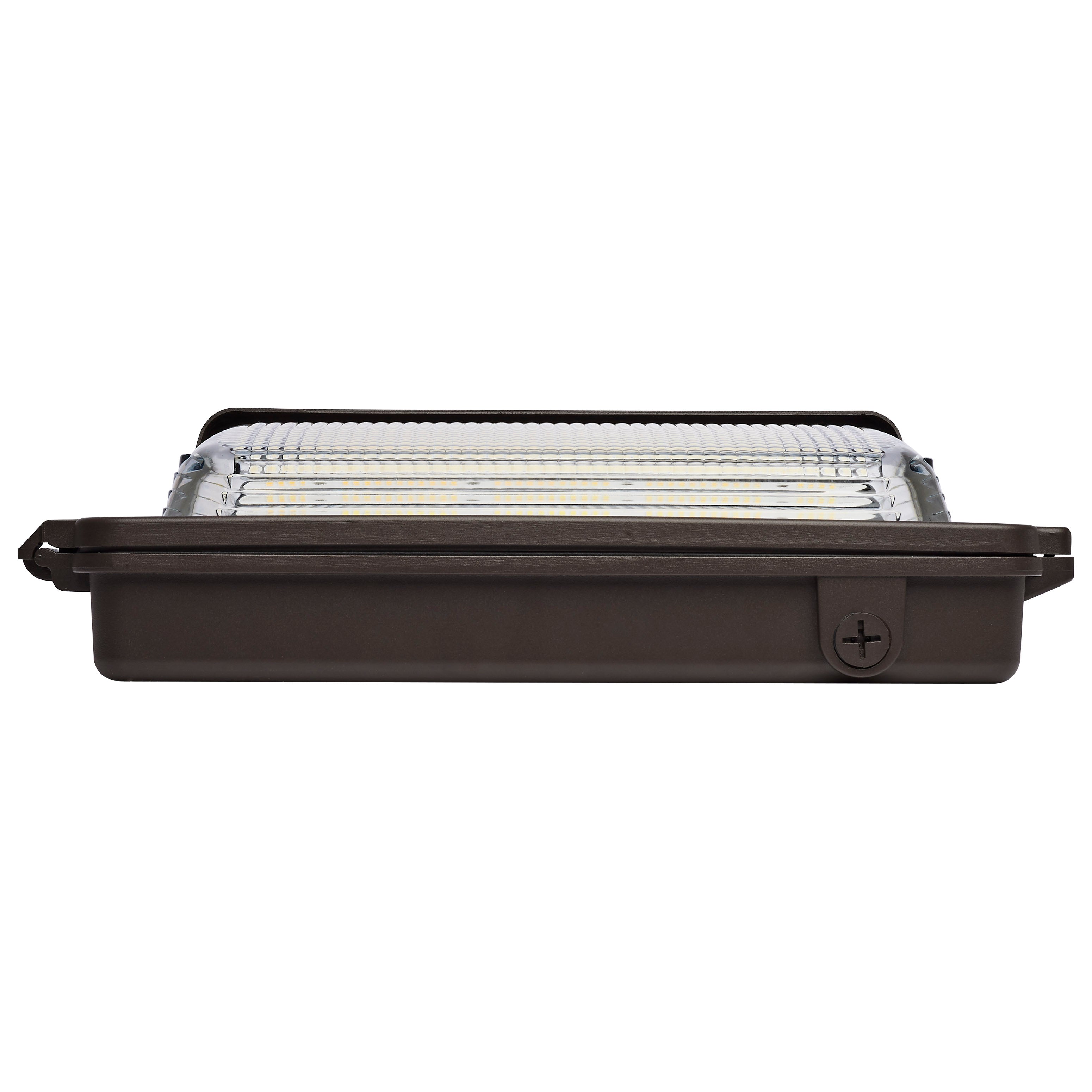

The SATCO 65884 LED Low Profile Wall Pack offers selectable wattage (30/45/60W) and CCT (3K/4K/5K). Features include a photocell and dimming capabilities. The bronze finish and die-cast aluminum construction ensure durability. Suitable for indoor and outdoor use, this LED wall pack provides 3844L-7506L lumens and operates at 120V-277V.
- Wattage 30/45/60W Selectable
- CCT 3K/4K/5K Selectable
- Photocell
Product Highlights
Selectable wattage and CCT, photocell, and dimming capabilities make this LED wall pack a versatile lighting solution.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65884
-
Country of Origin: TH
Technical Specifications
-
Bulb Included: Integrated
-
Dimmable Text: 0-10V Dimming
-
Extends (in): 4.21
-
Material: Die-cast Aluminum
-
Fixture Type: Wall Pack
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 4KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish Family: Bronze
-
Amps: 0.250-0.108/0.375-0.162/0.500-0.217A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Finish: Clear
-
Lens Material: Borosilicate Glass
-
Lensed: Yes
-
Photo Cell: Has Photocell
-
Power Factor: >0.9
-
SDS Class: LED_Fixture
-
Indoor Outdoor: Indoor, Outdoor
-
Product Technology: LED
-
Fixture Lamp Count: 1
-
Incandescent Equivalent: 125W
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 90
-
Color Temp: Soft White to Natural Light
-
CRI: 80+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60Hz
-
Operating Temp: -40C (-40F) to +50C (+122F)
-
HID Equivalent: 50W/100W/150W
-
Lumens: 3844L-7506L
-
Volts: 120V-277V
-
Watts: 30W/45W/60W
-
Lamp Base: Integrated
-
Finish: BRONZE
-
ANSI Base: Integrated
-
Lamp Type: LED
-
Fixture Shape: Trapezoid
-
Brand: NUVO® by SATCO
-
Amperage Rating: 0.250 to 0.108/0.375 to 0.162/0.500 to 0.217 A
-
Average Life: 50000 hr
-
Ballast Type: Dimmable
-
Color Rendering Index (CRI): >80
-
Color Temperature: 3000/4000/5000 K
-
Country of Origin: TH
-
Enclosure Type: IP65
-
Housing Finish: Bronze
-
Housing Material: Die-Cast Aluminum
-
Lens Type: Borosilicate Glass
-
Manufacturer Name: SATCO Products
-
Type: Low Profile
-
Voltage Rating: 120 to 277 V
