Product Description

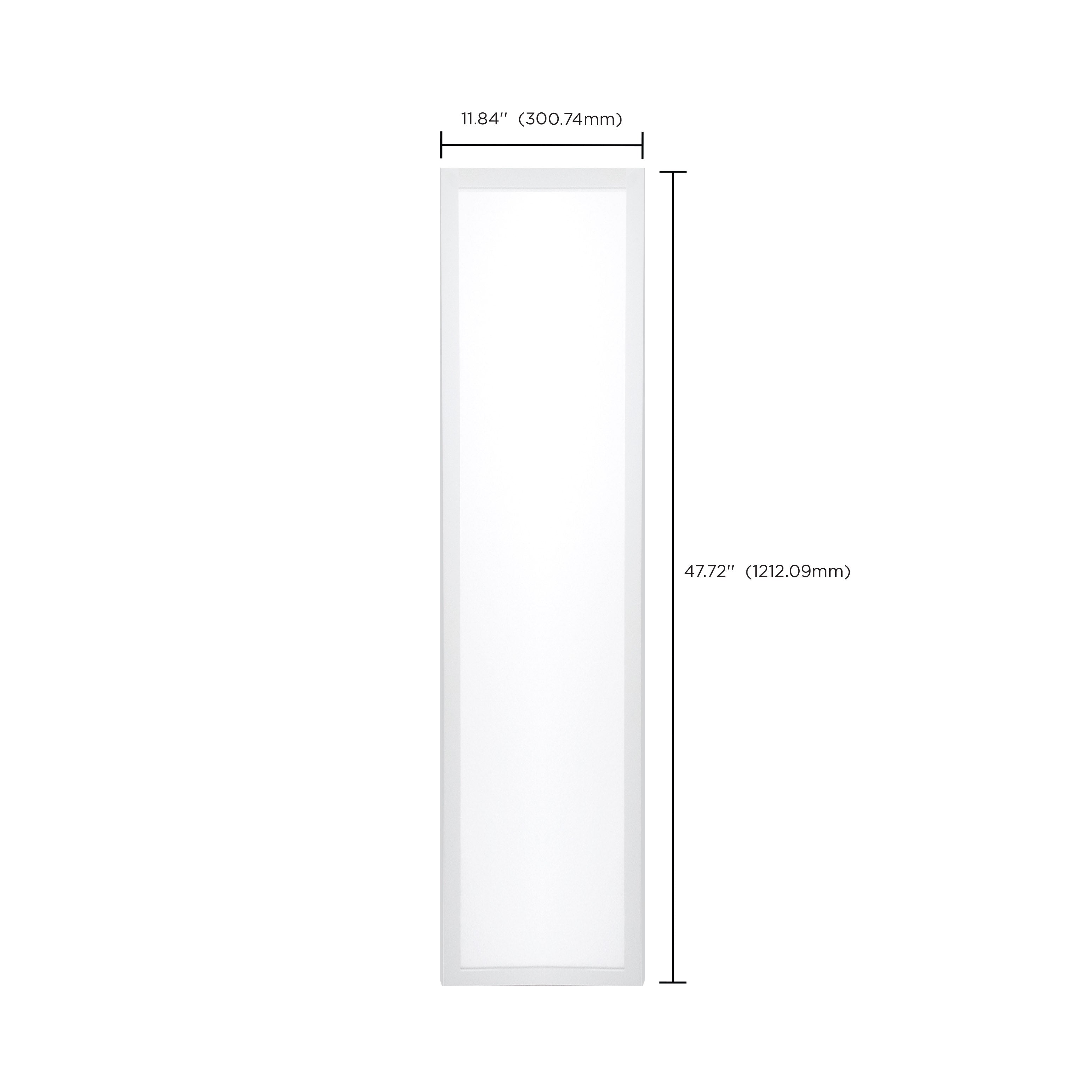

The SATCO 65573R1 LED Backlit Flat Panel measures 1 ft. x 4 ft. and features selectable wattage and CCT. This 100-277 Volt panel uses ColorQuick and PowerQuick technology and has a white finish. It provides even light distribution using high-quality optic materials and a flicker-free driver for comfortable, long-term use.
- Wattage and CCT selectable for customized lighting
- Flicker-free operation reduces eye strain
- Built-in surge protection ensures longevity
Product Highlights
The SATCO LED Backlit Flat Panel offers versatile and efficient lighting for offices, retail spaces, educational institutions, and hospitality locations.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65573R1
-
Country of Origin: Viet Nam
Technical Specifications
-
Bulb Included: Integrated
-
Dimmable Text: 0-10V Dimming Only
-
Material: Aluminum / Steel
-
Fixture Type: Backlit Flat Panel
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 2KV
-
Total Harmonic Distortion: 8.70%
-
Wire Color: White / Black / Green
-
Wire Length: 3.54
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Finish Family: White
-
Additional Info: Driver Specs - VDC38-48V; 430/620/810mA
-
Amps: 0.200-0.072/0.300-0.108/0.400-0.144A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Photo Cell: No Photocell
-
Power Factor: 0.9
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 100-150
-
Color Temperature: 3500K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Beam Angle (degree): 120
-
Color Temp: Warm to Cool White
-
CRI: 80+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60Hz
-
Operating Temp: -17C (+1.4F) to +45C (+113F)
-
Lumens: 2200L-4600L
-
Input Voltage: 120V-277V
-
Watts: 20W/30W/40W
-
Lamp Base: Integrated
-
Finish: WHITE
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Rectangle
-
Lighting Technology: LED
-
Lighting Certification: cETLus - Listed;FCC;Damp;RoHS;DLC;NSF;IP20;IC
-
Voltage: 100-277
-
Rated Life: 50000
-
Beam Angle: 120 degrees
-
Housing Finish: White
-
Standards: cETLus ; RoHS ; FCC ; DLC ; IP20
-
Housing Material: Aluminum / Steel
-
Item: Functional Lighting
-
Wattage / Lumen Selectable: Yes
-
Damp/Wet Rating: Damp
-
Power Source: Hardwire
-
Type: Backlit Flat Panel
