Product Description

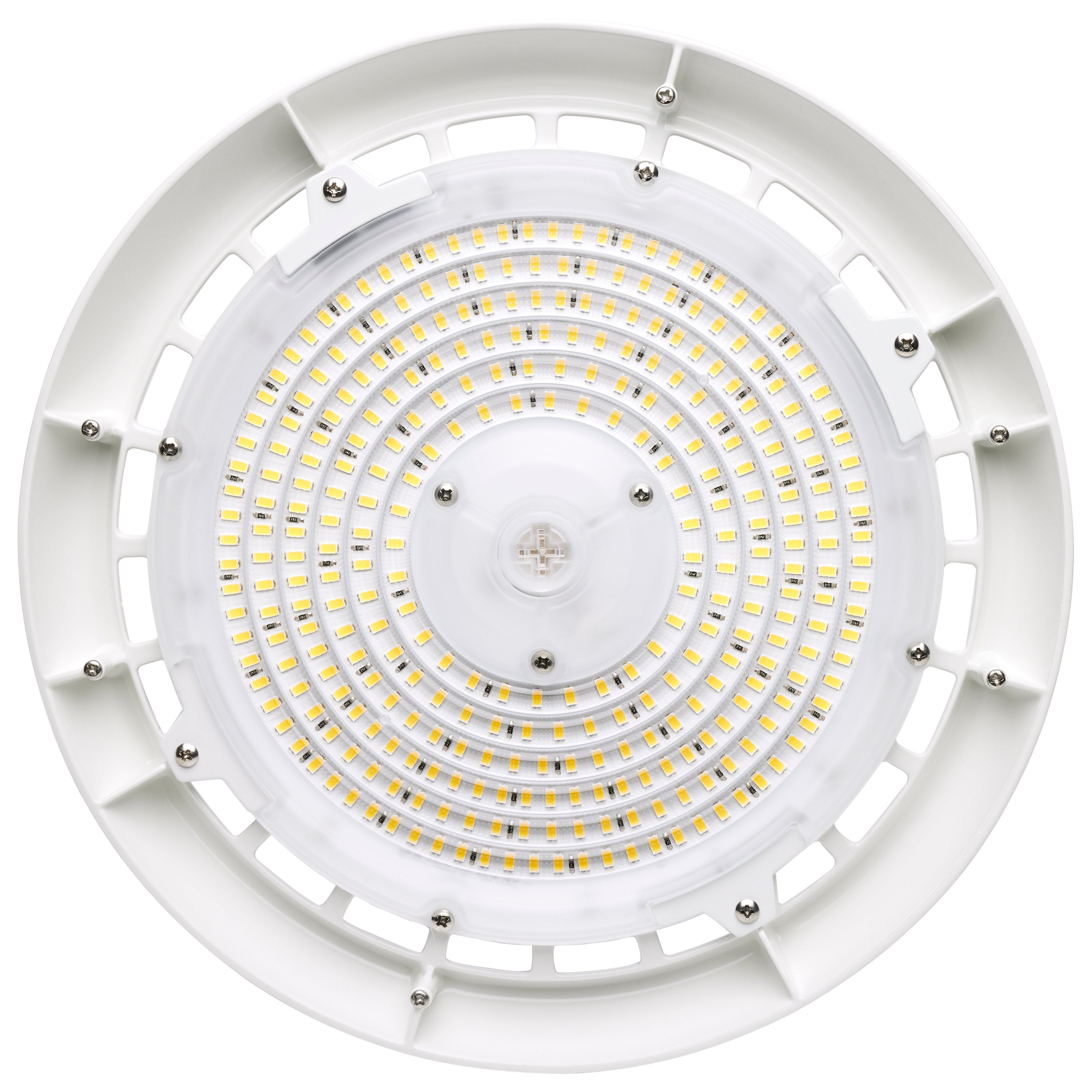

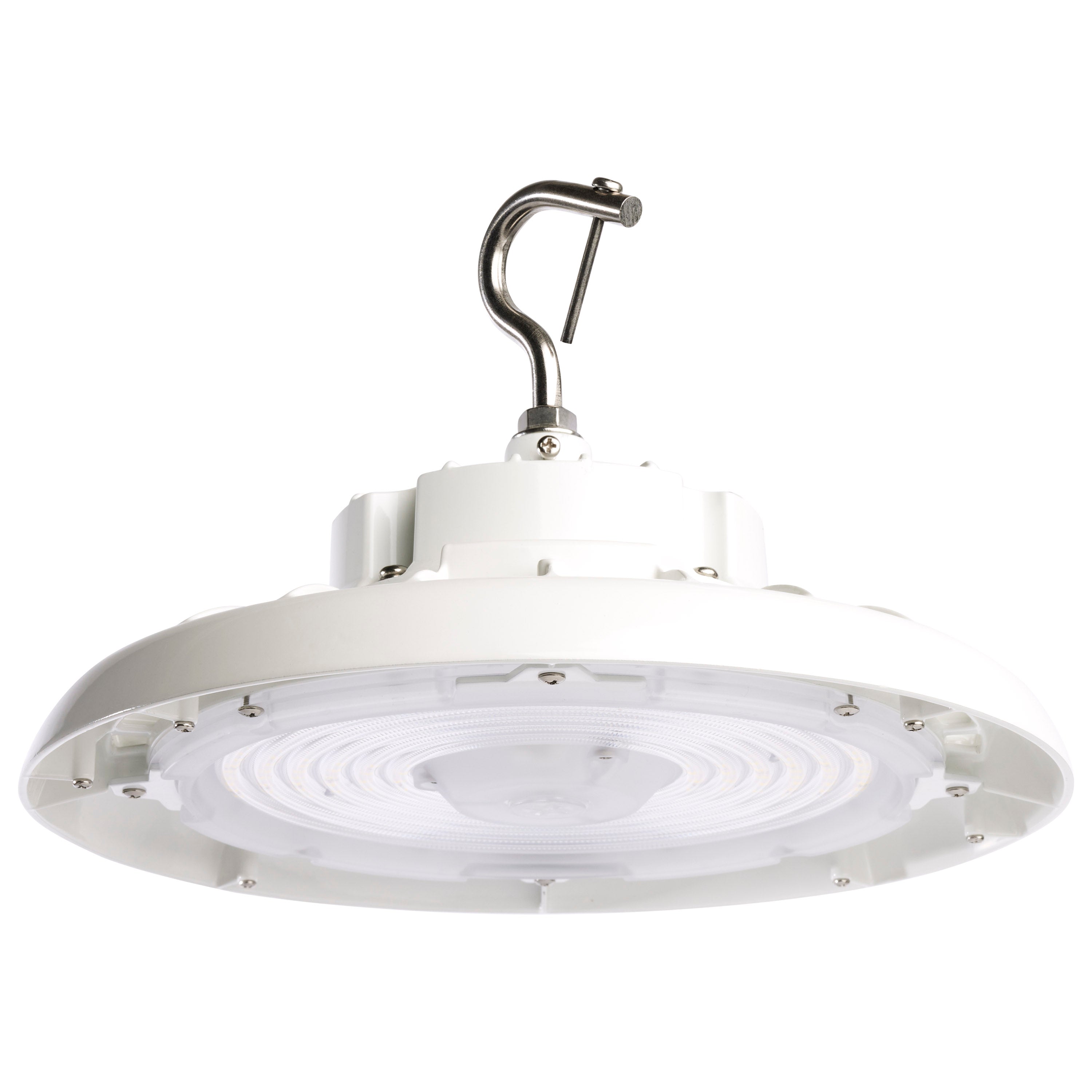

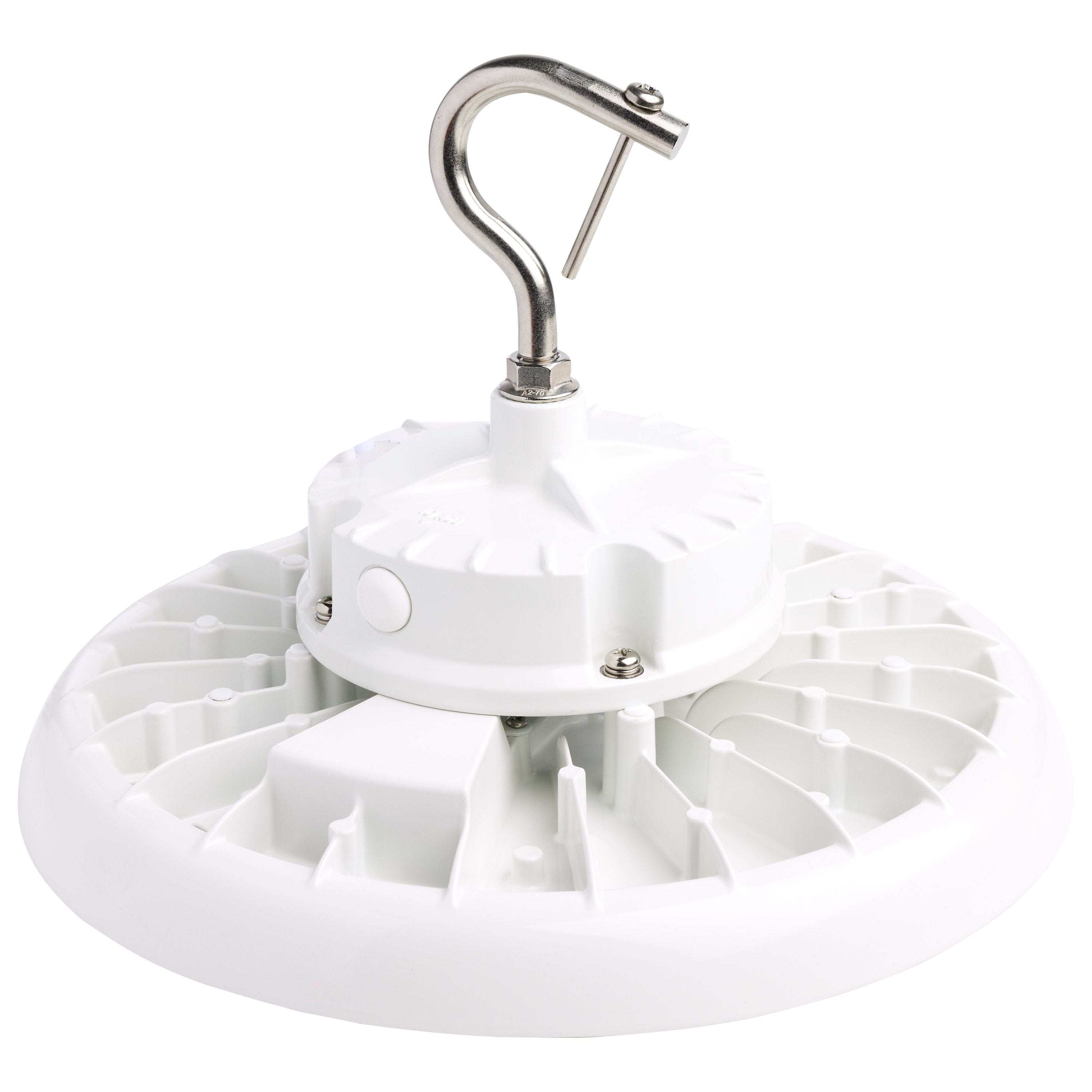

The SATCO 65-794R2 is a 150 Watt UFO LED High Bay fixture designed for efficient industrial and warehouse lighting. This fixture provides 21600 lumens with a 5000K color temperature, operating on 120-277 Volts. Constructed from die-cast aluminum with a white finish, it features an IP65 rating for wet locations and built-in 6KV surge protection, ensuring durability and reliable performance in demanding environments.
- Provides 21600 lumens with a 5000K color temperature for bright, natural light.
- Features a robust die-cast aluminum construction and an IP65 rating for wet locations.
- Equipped with built-in 6KV surge protection and 0-10V dimming capabilities.
Product Highlights
High-performance 150W LED UFO high bay with 21600 lumens, 5000K CCT, and 120-277V operation.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 65-794R2
-
Country of Origin: Vietnam
Technical Specifications
-
Bulb Included: Integrated
-
Diameter: 11.02 inches
-
Material: Die-cast Aluminum
-
Fixture Type: UFO High Bay
-
Includes: Locking Hanging Hook, 6 Foot Whip
-
Style: Utility
-
Surge Protection: 6KV
-
Total Harmonic Distortion: 15%
-
Wire Length: 72 inches
-
CCT Selectable: No
-
Wattage Selectable: No
-
Finish: White
-
Amperage: 1.25-0.542A
-
Integrated Features: Integrated Sensor Port
-
Lens Material: Polycarbonate (PC)
-
Photocell: Optional Add-On
-
Power Factor: 0.9
-
Location Type: Indoor
-
Technology Type: LED
-
Incandescent Equivalent: 1000W
-
Color Temperature: 5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 90 degrees
-
Light Color: Natural Light
-
CRI: 80+
-
Dimming Type: 0-10V Dimming
-
Operating Frequency: 50/60 Hz
-
Operating Temperature: -40F to +122F (-40C to +50C)
-
HID Equivalent: 400W
-
Lumens: 21600
-
Input Voltage: 120-277V
-
Wattage: 150W
-
Lamp Base: Integrated
-
ANSI Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Mounting Height: Up to 25 feet
-
IP Rating: IP65
-
Location Rating: Wet
-
Safety Listing: cULus Certified
-
Lumens per Watt: 145
-
Mounting Type: Hanging Hook
-
Fixture Sub-Category: High/Low Bay Fixture
-
Fixture Application: Area/General Lighting
